45* Din X Male Metric Adj

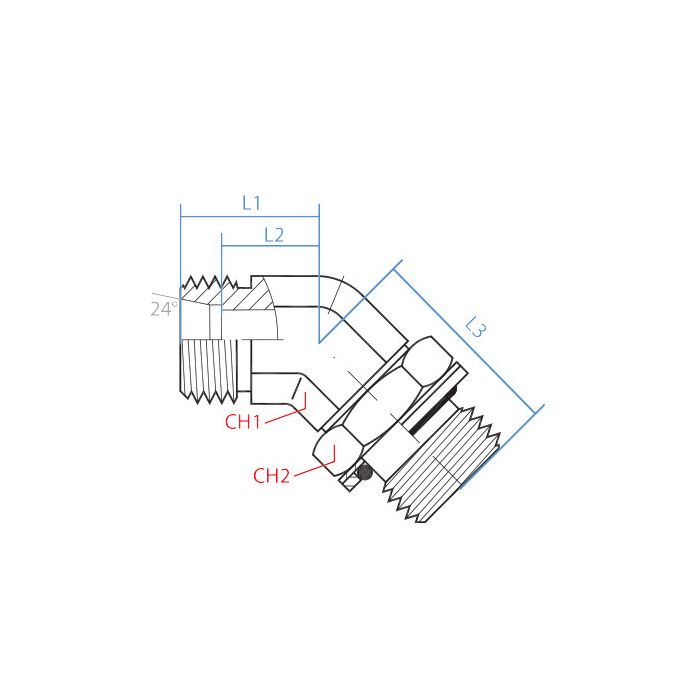

CH1 Width 22mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 16mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-14-20	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

Reckon this here elbow fitting will hold up okay in a hydraulic setup for some heavy equipment?

Question by: Brett H on Feb 5, 2026, 10:31 AM

Designed for robust performance and durability, this Adaptall 45° steel elbow adapter is well-suited for demanding hydraulic systems. Its steel construction ensures longevity and resistance to wear, making it a reliable choice for heavy equipment applications.

Answer by: Customer Support on Feb 6, 2026, 1:17 PM

trying to swap out an elbow on my hydraulic line, is this one the 45 degree with M22 x 1.5 on one side and M20 x 1.5 on the other?

Question by: Pete G on Oct 21, 2025, 2:46 PM

It’s a 45° steel elbow adapter with a male DIN tube end on Side 1 (M22 x 1.5, size S14) and a male metric end on Side 2 (M20 x 1.5, size 20mm).

Answer by: Customer Support on Oct 22, 2025, 8:56 PM
