Adaptall 45* Din X Male Metric Adj 5066S-12-18

Specifications

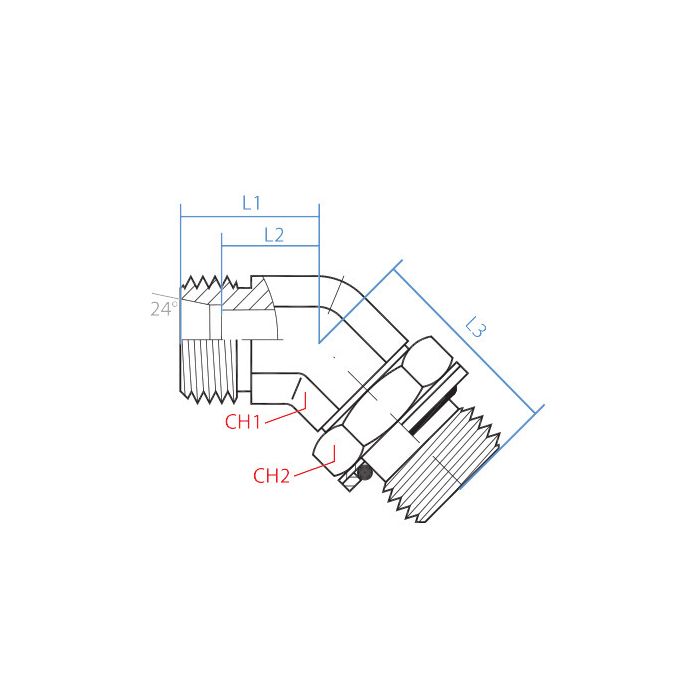

CH1 Width 19mm	CH2 Width 24mm	L1 Length 21mm	L2 Length 13.5mm	L3 Length 34mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-12-18	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to replace a bent elbow on a line, is this the one that goes from M20 x 1.5 DIN tube (S12) over to an M18 x 1.5 male metric thread?

Question by: Melvin G on Oct 14, 2025, 1:09 PM

It matches an M20 x 1.5 DIN tube end on Side 1 (S12) and an M18 x 1.5 male metric thread on Side 2 (18mm). It is a 45 degree elbow, so it’s meant for routing where a straight fitting won’t work.

Answer by: Customer Support on Oct 16, 2025, 11:27 AM

Hey, will this here fitting work with standard metric hydraulic lines? Just makin' sure before I order.

Question by: Brenda M on Feb 27, 2026, 5:35 PM

This fitting is designed to connect an M20 x 1.5 DIN tube end to an M18 x 1.5 male metric thread. It's made for hydraulic line routing where a straight connection won't quite do.

Answer by: Customer Support on Mar 1, 2026, 1:23 PM

fitting's got a 45 degree angle on it, does that adjustable end let you spin it into position after you get it threaded up, or do you have to have everything lined out before you tighten it down?

Question by: Terry A on May 26, 2025, 7:41 AM

The adjustable metric side is built to let you dial in the orientation before you lock it off, so you don't have to have your lines perfectly staged ahead of time. That's the whole point of the adjustable end. Get it threaded, swing it to where it needs to sit, then tighten it down. No need to modify the line itself to get the angle right.

Answer by: Customer Support on May 28, 2025, 6:56 AM
