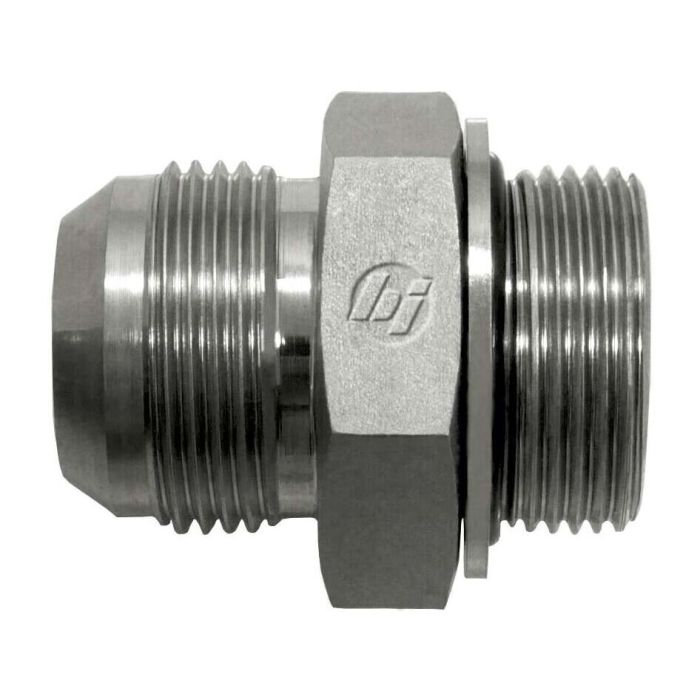

06MJ-12MM PORT METRIC W/RETAINING RING 7001-06-12

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 7001-06-12	Product Weight 0.07 lbs

Product Questions & Answers 3

Product Questions & Answers

Hey, will this here fitting work with a standard JIC setup? Gotta make sure it's gonna play nice with what I already got.

Question by: Jean M on May 25, 2025, 8:33 PM

For your JIC setup, this adapter uses a male JIC SAE 37-degree flare thread. It's designed to fit securely with systems adhering to the SAE J514 standard, where the thread size is 9/16-18.

Answer by: Customer Support on May 27, 2025, 9:11 AM

thread sizes on this one got me turned around a little, is the 9/16-18 end the JIC side or the metric side?

Question by: Hank M on Sep 5, 2025, 1:32 PM

The 9/16-18 thread is the JIC end, which follows the SAE J514 standard and uses a 37-degree flare connection. The metric side is M12X1.5, set up as a male metric O-ring with a retaining ring for ISO 9974 ports. So if you're threading into a metric port on one end and connecting to a JIC line on the other, you've got the right adapter.

Answer by: Customer Support on Sep 6, 2025, 6:16 PM

got a hose end with 9/16-18 JIC, will this adapter mate up to it and then screw into an M12x1.5 port?

Question by: Freddie B on Oct 5, 2025, 8:42 AM

Works as a straight adapter from a male JIC SAE 37 degree flare thread in 9/16-18 (SAE J514) to a male metric O-ring port thread in M12x1.5 (ISO 9974 style), with a retaining ring on the metric side for the O-ring seal.

Answer by: Customer Support on Oct 7, 2025, 6:03 AM
