Adaptall 45* Din X Male Metric Adj 5066S-10-16

Specifications

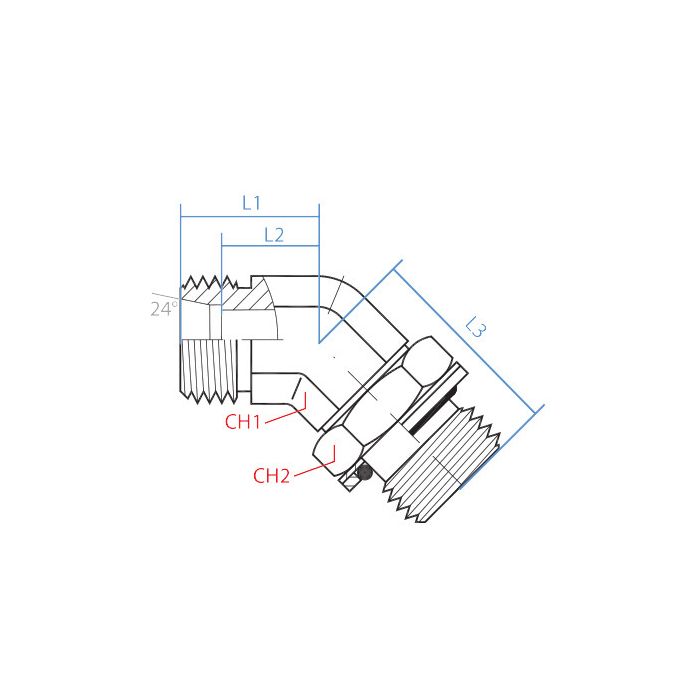

CH1 Width 19mm	CH2 Width 22mm	L1 Length 21mm	L2 Length 13.5mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size S10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-10-16	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

What exactly are the two thread sizes on this fitting, and are they both male?

Question by: Hubert H on Jul 17, 2025, 10:02 AM

Both sides are male, yes. Side 1 is a DIN Tube connection with an M18 x 1.5 thread and an S10 size designation. Side 2 is a Metric connection, M16 x 1.5, with a 16mm size. So if you're routing from a DIN tube port over to a metric male connection, this elbow handles that transition at a 45 degree angle.

Answer by: Customer Support on Jul 18, 2025, 9:14 PM

trying to swap an elbow on a line, is this the 45 degree one with m18 x 1.5 on one end and m16 x 1.5 on the other?

Question by: Scott C on Oct 31, 2025, 1:22 PM

For a 45° elbow setup, it matches those thread callouts. Side 1 is a DIN tube connection with an M18 x 1.5 callout in size S10, and Side 2 is a male metric end with an M16 x 1.5 callout in 16 mm size.

Answer by: Customer Support on Nov 1, 2025, 4:18 PM
