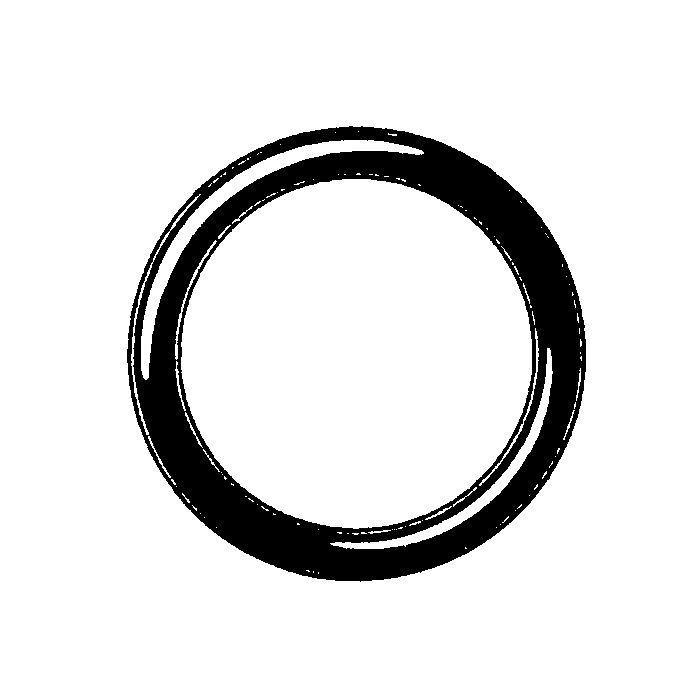

70 Durometer Buna-N O-Ring, Inch OD, 3-5/8 Inch ID, 0.21 Inch Width
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Supplier Part Number
568-342
Alternate Part Numbers
Alternate Part Number
568-342 ,
Alternate Part Number
568-342-B ,
Alternate Part Number
C1CF84 ,
Alternate Part Number
MI-08740515 ,
Alternate Part Number
MINO-00407X90511
Will this here o-ring hold up alright in some hydraulic oil?
Question by: Rusty A on Jan 8, 2026, 1:12 PM
Yes, this O-ring is made from 70 Durometer Buna-N, which offers good resistance to petroleum-based oils and fuels. Just be sure your operating temperature stays within the specified -40°F to 240°F range.
Answer by: Customer Support on Jan 9, 2026, 8:05 PM
what's the temp range on these buna-n o-rings? got an application that sees some cold mornings and pretty hot fluid temps
Question by: Ricky M on Dec 25, 2025, 3:29 PM
Rated from -40°F up to 240°F, so they hold up across a solid spread of operating conditions. Cold startup situations and moderately hot hydraulic fluid both fall well within that window for a 70 durometer Buna-N compound.
Answer by: Customer Support on Dec 27, 2025, 8:21 AM
these got a 3-5/8 inch ID -- that the actual bore size or just nominal?
Question by: Curt R on May 12, 2025, 3:16 PM
The nominal ID is 3-5/8 inch, but the actual measured inside diameter comes in at 3.600 inches. If you're cross-referencing against a groove spec or a bore measurement, go with the 3.600 figure for your fit calculation. The actual OD runs 4.020 inches, and the width is 0.210 inches. Those are the numbers to work with when you're checking clearances.
Answer by: Customer Support on May 13, 2025, 9:27 PM
What's the inside diameter on these o-rings? Just wanna make sure they'll fit my application.
Question by: Wade W on Sep 10, 2025, 6:39 AM
This O-ring has an actual inside diameter of 3.6 inches.
Answer by: Customer Support on Sep 12, 2025, 8:27 AM
got an old -342 o-ring here. is this the right dash size replacement, and how many come in the pack
Question by: Denise P on Jan 6, 2026, 1:09 PM
For a dash size match, this one is -342, and it cross-references to supplier part number 568-342 and catalog number C1CF84. Package quantity is 4 O-rings.
Answer by: Customer Support on Jan 7, 2026, 3:37 PM
Similar Products
Model Number
Dash Size
Nominal I.D. (in)
Nominal O.D.
Nominal Width
Actual I.D.
Actual O.D.
Actual Width
Package Qty.
Price
Buy Now
A-008
-008
3/16
5/16
1/16
0.176
0.316
0.07 in
50
A-011
-011
5/16
7/16
1/16
0.301
0.441
0.07 in
50
A-013
-013
7/16
9/16
1/16
0.426
0.566
0.07 in
50
A-017
-017
11/16
13/16
1/16
0.676
0.816
0.07 in
50
A-020
-020
7/8
1
1/16
0.864
1.004
0.07 in
50
A-022
-022
1
1-1/8
1/16
0.989
1.129
0.07 in
50
A-024
-024
1-1/8
1-1/4
1/16
1.114
1.254
0.07 in
50
A-029
-029
1-1/2
1-5/8
1/16
1.489
1.629
0.07 in
20
A-037
-037
2-1/2
2-5/8
1/16
2.489
2.629
0.07 in
20
A-038
-038
2-5/8
2-3/4
1/16
2.614
2.754
0.07 in
10
A-043
-043
3-1/2
3-5/8
1/16
3.489
3.629
0.07 in
10
A-045
-045
4
4-1/8
1/16
3.989
4.129
0.07 in
10
A-112
-112
1/2
11/16
3/32
0.487
0.693
0.103 in
50
A-118
-118
7/8
1-1/16
3/32
0.862
1.068
0.103 in
50
A-121
-121
1-1/16
1-1/4
3/32
1.049
1.255
0.103 in
50
A-131-ORING
-131
1-11/16
1-7/8
3/32
1.674
1.88
0.103 in
20
A-136
-136
2
2-3/16
3/32
1.987
2.193
0.103 in
20
A-140
-140
2-1/4
2-7/16
3/32
2.237
2.443
0.103 in
20
A-146
-146
2-5/8
2-13/16
3/32
2.612
2.818
0.103 in
20
A-152
-152
3-1/4
3-7/16
3/32
3.237
3.443
0.103 in
10
A-159
-159
5
5-3/16
3/32
4.987
5.193
0.103 in
4
A-169
-169
7-1/2
7-11/16
3/32
7.487
7.693
0.103 in
2
A-214
-214
1
1-1/4
1/8
0.984
1.262
0.139 in
20
A-218
-218
1-1/4
1-1/2
1/8
1.234
1.512
0.139 in
20
A-221
-221
1-7/16
1-11/16
1/8
1.421
1.699
0.139 in
20
A-231
-231
2-5/8
2-7/8
1/8
2.609
2.887
0.139 in
10
A-232
-232
2-3/4
3
1/8
2.734
3.012
0.139 in
10
A-233
-233
2-7/8
3-1/8
1/8
2.859
3.137
0.139 in
10
A-234
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-236
-236
3-1/4
3-1/2
1/8
3.234
3.512
0.139 in
10
A-238-ORING
-238
3-1/2
3-3/4
1/8
3.484
3.762
0.139 in
10
A-242-ORING
-242
4
4-1/4
1/8
3.984
4.262
0.139 in
10
A-244
-244
4-1/4
4-1/2
1/8
4.234
4.512
0.139 in
10
A-248
-248
4-3/4
5
1/8
4.734
5.012
0.139 in
4
A-251
-251
5-1/8
5-3/8
1/8
5.109
5.387
0.139 in
4
A-252
-252
5-1/4
5-1/2
1/8
5.234
5.512
0.139 in
4
A-256
-256
5-3/4
6
1/8
5.734
6.012
0.139 in
4
A-329
-329
2
2-3/8
3/16
1.975
2.395
0.21 in
20
A-334
-334
2-5/8
3
3/16
2.6
3.02
0.21 in
20
A-338
-338
3-1/8
3-1/2
3/16
3.1
3.52
0.21 in
10
A-342
-342
3-5/8
4
3/16
3.6
4.02
0.21 in
4
A-346
-346
4-1/8
4-1/2
3/16
4.1
4.52
0.21 in
4
568-450
-450
10-1/2
11
1/4
10.475
11.025
0.275 in
1
A-003
-003
1/16
3/16
1/16
0.056
0.176
0.06 in
50
A-005
-005
3/32
7/32
1/16
0.101
0.241
0.07 in
50
A-006
-006
1/8
1/4
1/16
0.114
0.254
0.07 in
50
A-007
-007
5/32
9/32
1/16
0.145
0.285
0.07 in
50
A-009
-009
7/32
11/32
1/16
0.208
0.348
0.07 in
50
A-010
-010
1/4
3/8
1/16
0.239
0.379
0.07 in
50
A-012
-012
3/8
1/2
1/16
0.364
0.504
0.07 in
50
A-014
-014
1/2
5/8
1/16
0.489
0.629
0.07 in
50
A-015
-015
9/16
11/16
1/16
0.551
0.691
0.07 in
50
A-016
-016
5/8
3/4
1/16
0.614
0.754
0.07 in
50
A-019
-019
13/16
15/16
1/16
0.801
0.941
0.07 in
50
A-021
-021
15/16
1-1/16
1/16
0.926
1.066
0.07 in
50
A-023
-023
1-1/16
1-3/16
1/16
1.051
1.191
0.07 in
50
A-025
-025
1-3/16
1-5/16
1/16
1.176
1.316
0.07 in
50
A-026
-026
1-1/4
1-3/8
1/16
1.239
1.379
0.07 in
50
A-027
-027
1-5/16
1-7/16
1/16
1.301
1.441
0.07 in
50
A-028
-028
1-3/8
1-1/2
1/16
1.364
1.504
0.07 in
20
A-030
-030
1-5/8
1-3/4
1/16
1.614
1.754
0.07 in
20
A-031
-031
1-3/4
1-7/8
1/16
1.739
1.879
0.07 in
20
A-032
-032
1-7/8
2
1/16
1.864
2.004
0.07 in
20
A-033
-033
2
2-1/8
1/16
1.989
2.129
0.07 in
20
A-034
-034
2-1/8
2-1/4
1/16
2.114
2.254
0.07 in
20
A-035
-035
2-1/4
2-3/8
1/16
2.239
2.379
0.07 in
20
A-036
-036
2-3/8
2-1/2
1/16
2.364
2.504
0.07 in
20
A-039
-039
2-3/4
2-7/8
1/16
2.739
2.879
0.07 in
10
A-040
-040
2-7/8
3
1/16
2.864
3.004
0.07 in
10
A-041
-041
3
3-1/8
1/16
2.989
3.129
0.07 in
10
A-042
-042
3-1/4
3-3/8
1/16
3.239
3.379
0.07 in
10
A-044
-044
3-3/4
3-7/8
1/16
3.739
3.879
0.07 in
10
A-048
-048
4-3/4
4-7/8
1/16
4.739
4.879
0.07 in
4
A-049
-049
5
5-1/8
1/16
4.989
5.129
0.07 in
4
A-106
-106
3/16
3/8
3/32
0.174
0.38
0.103 in
50
A-107
-107
7/32
13/32
3/32
0.206
0.412
0.103 in
50
A-108
-108
1/4
7/16
3/32
0.237
0.443
0.103 in
50
A-109
-109
5/16
1/2
3/32
0.299
0.505
0.103 in
50
A-110-ORING
-110
3/8
9/16
3/32
0.362
0.568
0.103 in
50
A-111
-111
7/16
5/8
3/32
0.424
0.63
0.103 in
50
A-114
-114
5/8
13/16
3/32
0.612
0.818
0.103 in
50
A-115
-115
11/16
7/8
3/32
0.674
0.88
0.103 in
50
A-116
-116
3/4
15/16
3/32
0.737
0.943
0.103 in
50
A-117
-117
13/16
1
3/32
0.799
1.005
0.103 in
50
A-119
-119
15/16
1-1/8
3/32
0.924
1.13
0.103 in
50
A-120
-120
1
1-3/16
3/32
0.987
1.193
0.103 in
50
A-122
-122
1-1/8
1-5/16
3/32
1.112
1.318
0.103 in
20
A-123
-123
1-3/16
1-3/8
3/32
1.174
1.38
0.103 in
20
A-124
-124
1-1/4
1-7/16
3/32
1.237
1.443
0.103 in
20
A-125
-125
1-5/16
1-1/2
3/32
1.299
1.505
0.103 in
20
A-126
-126
1-3/8
1-9/16
3/32
1.362
1.568
0.103 in
20
A-127
-127
1-7/16
1-5/8
3/32
1.424
1.63
0.103 in
20
A-128
-128
1-1/2
1-11/16
3/32
1.487
1.693
0.103 in
20
A-129-ORING
-129
1-9/16
1-3/4
3/32
1.549
1.755
0.103 in
20
A-130
-130
1-5/8
1-13/16
3/32
1.612
1.818
0.103 in
20
A-132-ORING
-132
1-3/4
1-15/16
3/32
1.737
1.943
0.103 in
20
A-133
-133
1-13/16
2
3/32
1.799
2.005
0.103 in
20
A-134
-134
1-7/8
2-1/16
3/32
1.862
2.068
0.103 in
20
A-135
-135
1-15/16
2-1/8
3/32
1.925
2.131
0.103 in
20
A-138
-138
2-1/8
2-5/16
3/32
2.112
2.318
0.103 in
20
A-139
-139
2-3/16
2-3/8
3/32
2.175
2.381
0.103 in
20
A-141-ORING
-141
2-5/16
2-1/2
3/32
2.3
2.506
0.103 in
20
A-142
-142
2-3/8
2-9/16
3/32
2.362
2.568
0.103 in
20
A-143
-143
2-7/16
2-5/8
3/32
2.425
2.631
0.103 in
20
A-144
-144
2-1/2
2-11/16
3/32
2.487
2.693
0.103 in
20
A-145
-145
2-9/16
2-3/4
3/32
2.55
2.756
0.103 in
20
A-147
-147
2-11/16
2-7/8
3/32
2.675
2.881
0.103 in
20
A-148
-148
2-3/4
2-15/16
3/32
2.737
2.943
0.103 in
10
A-149
-149
2-13/16
3
3/32
2.8
3.006
0.103 in
10
A-150
-150
2-7/8
3-1/16
3/32
2.862
3.068
0.103 in
10
A-151
-151
3
3-3/16
3/32
2.987
3.193
0.103 in
10
A-153
-153
3-1/2
3-11/16
3/32
3.487
3.693
0.103 in
10
A-154
-154
3-3/4
3-15/16
3/32
3.737
3.943
0.103 in
10
A-155
-155
4
4-3/16
3/32
3.987
4.193
0.103 in
10
A-156
-156
4-1/4
4-7/16
3/32
4.237
4.443
0.103 in
10
A-157
-157
4-1/2
4-11/16
3/32
4.487
4.693
0.103 in
4
A-158
-158
4-3/4
4-15/16
3/32
4.737
4.943
0.103 in
4
A-160
-160
5-1/4
5-7/16
3/32
5.237
5.443
0.103 in
4
A-161
-161
5-1/2
5-11/16
3/32
5.487
5.693
0.103 in
4
A-163
-163
6
6-3/16
3/32
5.987
6.193
0.103 in
2
A-164
-164
6-1/4
6-7/16
3/32
6.237
6.443
0.103 in
2
A-170
-170
7-3/4
7-15/16
3/32
7.737
7.943
0.103 in
2
A-172
-172
8-1/4
8-7/16
3/32
8.237
8.443
0.103 in
2
A-202
-202
1/4
1/2
1/8
0.234
0.512
0.139 in
50
A-203
-203
5/16
9/16
1/8
0.296
0.574
0.139 in
50
A-204
-204
3/8
5/8
1/8
0.359
0.637
0.139 in
50
A-205
-205
7/16
11/16
1/8
0.421
0.699
0.139 in
50
A-206
-206
1/2
3/4
1/8
0.484
0.762
0.139 in
50
A-208
-208
5/8
7/8
1/8
0.609
0.887
0.139 in
20
A-209
-209
11/16
15/16
1/8
0.671
0.949
0.139 in
20
A-210-ORING
-210
3/4
1
1/8
0.734
1.012
0.139 in
20
A-213
-213
15/16
1-3/16
1/8
0.921
1.199
0.139 in
20
A-215
-215
1-1/16
1-5/16
1/8
1.046
1.324
0.139 in
20
A-216
-216
1-1/8
1-3/8
1/8
1.109
1.387
0.139 in
20
A-217
-217
1-3/16
1-7/16
1/8
1.171
1.449
0.139 in
20
A-219
-219
1-5/16
1-9/16
1/8
1.296
1.574
0.139 in
20
A-220
-220
1-3/8
1-5/8
1/8
1.359
1.637
0.139 in
20
A-222
-222
1-1/2
1-3/4
1/8
1.484
1.762
0.139 in
20
A-223
-223
1-5/8
1-7/8
1/8
1.609
1.887
0.139 in
20
A-224
-224
1-3/4
2
1/8
1.734
2.012
0.139 in
20
A-225
-225
1-7/8
2-1/8
1/8
1.859
2.137
0.139 in
20
A-226
-226
2
2-1/4
1/8
1.984
2.262
0.139 in
20
A-227
-227
2-1/8
2-3/8
1/8
2.109
2.387
0.139 in
20
A-229
-229
2-3/8
2-5/8
1/8
2.359
2.637
0.139 in
20
A-230
-230
2-1/2
2-3/4
1/8
2.484
2.762
0.139 in
10
A-234-VITON
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-235
-235
3-1/8
3-3/8
1/8
3.109
3.387
0.139 in
10
A-237
-237
3-3/8
3-5/8
1/8
3.359
3.637
0.139 in
10
A-239-ORING
-239
3-5/8
3-7/8
1/8
3.609
3.887
0.139 in
10
A-240-ORING
-240
3-3/4
4
1/8
3.734
4.012
0.139 in
10
A-241-ORING
-241
3-7/8
4-1/8
1/8
3.859
4.137
0.139 in
10
A-243
-243
4-1/8
4-3/8
1/8
4.109
4.387
0.139 in
10
A-245
-245
4-3/8
4-5/8
1/8
4.359
4.637
0.139 in
4
A-246
-246
4-1/2
4-3/4
1/8
4.484
4.762
0.139 in
4
A-247
-247
4-5/8
4-7/8
1/8
4.609
4.887
0.139 in
4
A-249
-249
4-7/8
5-1/8
1/8
4.859
5.137
0.139 in
4
A-250
-250
5
5-1/4
1/8
4.984
5.262
0.139 in
4
A-253
-253
5-3/8
5-5/8
1/8
5.359
5.637
0.139 in
4
A-254
-254
5-1/2
5-3/4
1/8
5.484
5.762
0.139 in
4
A-255
-255
5-5/8
5-7/8
1/8
5.609
5.887
0.139 in
4
A-257
-257
5-7/8
6-1/8
1/8
5.859
6.137
0.139 in
2
A-258-ORING
-258
6
6-1/4
1/8
5.984
6.262
0.139 in
2
A-259
-259
6-1/4
6-1/2
1/8
6.234
6.512
0.139 in
2
A-260
-260
6-1/2
6-3/4
1/8
6.484
6.762
0.139 in
2
A-261
-261
6-3/4
7
1/8
6.734
7.012
0.139 in
2
A-262
-262
7
7-1/4
1/8
6.984
7.262
0.139 in
2
A-263
-263
7-1/4
7-1/2
1/8
7.234
7.512
0.139 in
2
A-264
-264
7-1/2
7-3/4
1/8
7.484
7.762
0.139 in
2
A-265
-265
7-3/4
8
1/8
7.734
8.012
0.139 in
2
A-266
-266
8
8-1/4
1/8
7.984
8.262
0.139 in
2
A-267
-267
8-1/4
8-1/2
1/8
8.234
8.512
0.139 in
2
A-268
-268
8-1/2
8-3/4
1/8
8.484
8.762
0.139 in
2
A-269
-269
8-3/4
9
1/8
8.734
9.012
0.139 in
2
A-274
-274
10
10-1/4
1/8
9.984
10.262
0.139 in
2
A-275
-275
10-1/2
10-3/4
1/8
10.484
10.762
0.139 in
2
A-276
-276
11
11-1/4
1/8
10.984
11.262
0.139 in
1
A-277
-277
11-1/2
11-3/4
1/8
11.484
11.762
0.139 in
1
A-278
-278
12
12-1/4
1/8
11.984
12.262
0.139 in
1
A-282
-282
16
16-1/4
1/8
15.955
16.233
0.139 in
1
A-311
-311
9/16
15/16
3/16
0.537
0.957
0.21 in
50
A-312
-312
5/8
1
3/16
0.6
1.02
0.21 in
50
A-313
-313
11/16
1-1/16
3/16
0.662
1.082
0.21 in
50
A-314
-314
3/4
1-1/8
3/16
0.725
1.145
0.21 in
50
A-315
-315
13/16
1-3/16
3/16
0.787
1.207
0.21 in
20
A-316
-316
7/8
1-1/4
3/16
0.85
1.27
0.21 in
50
A-318
-318
1
1-3/8
3/16
0.975
1.395
0.21 in
20
A-319
-319
1-1/16
1-7/16
3/16
1.037
1.457
0.21 in
50
A-320
-320
1-1/8
1-1/2
3/16
1.1
1.52
0.21 in
20
A-321
-321
1-3/16
1-9/16
3/16
1.162
1.582
0.21 in
20
A-322
-322
1-1/4
1-5/8
3/16
1.225
1.645
0.21 in
20
A-323
-323
1-5/16
1-11/16
3/16
1.287
1.707
0.21 in
10
A-324
-324
1-3/8
1-3/4
3/16
1.35
1.77
0.21 in
20
A-325
-325
1-1/2
1-7/8
3/16
1.475
1.895
0.21 in
20
A-326
-326
1-5/8
2
3/16
1.6
2.02
0.21 in
20
A-327
-327
1-3/4
2-1/8
3/16
1.725
2.145
0.21 in
20
A-328
-328
1-7/8
2-1/4
3/16
1.85
2.27
0.21 in
20
A-331
-331
2-1/4
2-5/8
3/16
2.225
2.645
0.21 in
20
A-332
-332
2-3/8
2-3/4
3/16
2.35
2.77
0.21 in
20
A-333
-333
2-1/2
2-7/8
3/16
2.475
2.895
0.21 in
20
A-335
-335
2-3/4
3-1/8
3/16
2.725
3.145
0.21 in
10
A-336
-336
2-7/8
3-1/4
3/16
2.85
3.27
0.21 in
10
A-337
-337
3
3-3/8
3/16
2.975
3.395
0.21 in
10
A-339
-339
3-1/4
3-5/8
3/16
3.225
3.645
0.21 in
10
A-340
-340
3-3/8
3-3/4
3/16
3.35
3.77
0.21 in
10
A-343
-343
3-3/4
4-1/8
3/16
3.725
4.145
0.21 in
4
A-344
-344
3-7/8
4-1/4
3/16
3.85
4.27
0.21 in
4
A-347
-347
4-1/4
4-5/8
3/16
4.225
4.645
0.21 in
4
A-348
-348
4-3/8
4-3/4
3/16
4.35
4.77
0.21 in
4
A-349
-349
4-1/2
4-7/8
3/16
4.475
4.895
0.21 in
4
A-350
-350
4-5/8
5
3/16
4.6
5.02
0.21 in
4
A-351
-351
4-3/4
5-1/8
3/16
4.725
5.145
0.21 in
4
A-352
-352
4-7/8
5-1/4
3/16
4.85
5.27
0.21 in
4
A-353
-353
5
5-3/8
3/16
4.975
5.395
0.21 in
4
A-355
-355
5-1/4
5-5/8
3/16
5.225
5.645
0.21 in
4
A-356
-356
5-3/8
5-3/4
3/16
5.35
5.77
0.21 in
4
A-358
-358
5-5/8
6
3/16
5.6
6.02
0.21 in
4
A-360
-360
5-7/8
6-1/4
3/16
5.85
6.27
0.21 in
4
A-362
-362
6-1/4
6-5/8
3/16
6.225
6.645
0.21 in
4
A-363
-363
6-1/2
6-7/8
3/16
6.475
6.895
0.21 in
4
A-364
-364
6-3/4
7-1/8
3/16
6.725
7.145
0.21 in
4
A-366
-366
7-1/4
7-5/8
3/16
7.225
7.645
0.21 in
2
A-367
-367
7-1/2
7-7/8
3/16
7.475
7.895
0.21 in
2
A-378
-378
10-1/2
10-7/8
3/16
10.475
10.895
0.21 in
1
A-426
-426
4-5/8
5-1/8
1/4
4.6
5.15
0.275 in
4
A-427
-427
4-3/4
5-1/4
1/4
4.725
5.275
0.275 in
4
A-428
-428
4-7/8
5-3/8
1/4
4.85
5.4
0.275 in
4
A-429
-429
5
5-1/2
1/4
4.975
5.525
0.275 in
4
A-432
-432
5-3/8
5-7/8
1/4
5.35
5.9
0.275 in
4
A-434
-434
5-5/8
6-1/8
1/4
5.6
6.15
0.275 in
4
A-435
-435
5-3/4
6-1/4
1/4
5.725
6.275
0.275 in
4
A-436
-436
5-7/8
6-3/8
1/4
5.85
6.4
0.275 in
4
A-437
-437
6
6-1/2
1/4
5.975
6.525
0.275 in
2
A-438
-438
6-1/4
6-3/4
1/4
6.225
6.775
0.275 in
2
A-439
-439
6-1/2
7
1/4
6.475
7.025
0.275 in
2
A-441
-441
7
7-1/2
1/4
6.975
7.525
0.275 in
2
A-443
-443
7-1/2
8
1/4
7.475
8.025
0.275 in
2
A-446
-446
8-1/2
9
1/4
8.475
9.025
0.275 in
2
A-448
-448
9-1/2
10
1/4
9.475
10.025
0.275 in
2
A-345
-345
4
4-3/8
3/16
3.975
4.395
0.21 in
4
A-113
-113
9/16
3/4
3/32
0.549
0.755
0.103 in
50
A-137
-137
2-1/16
2-1/4
3/32
2.05
2.256
0.103 in
20
A-207
-207
9/16
13/16
1/8
0.546
0.824
0.139 in
50
A-211
-211
13/16
1-1/16
1/8
0.796
1.074
0.139 in
20
A-212
-212
7/8
1-1/8
1/8
0.859
1.137
0.139 in
20
A-228
-228
2-1/4
2-1/2
1/8
2.234
2.512
0.139 in
20
A-330
-330
2-1/8
2-1/2
3/16
2.1
2.52
0.21 in
20
A-341
-341
3-1/2
3-7/8
3/16
3.475
3.895
0.21 in
4
A-354
-354
5-1/8
5-1/2
3/16
5.1
5.52
0.21 in
4
A-357
-357
5-1/2
5-7/8
3/16
5.475
5.895
0.21 in
4
A-425
-425
4-1/2
5
1/4
4.475
5.025
0.275 in
4
A-433
-433
5-1/2
6
1/4
5.475
6.025
0.275 in
4
A-440
-440
6-3/4
7-1/4
1/4
6.725
7.275
0.275 in
2
