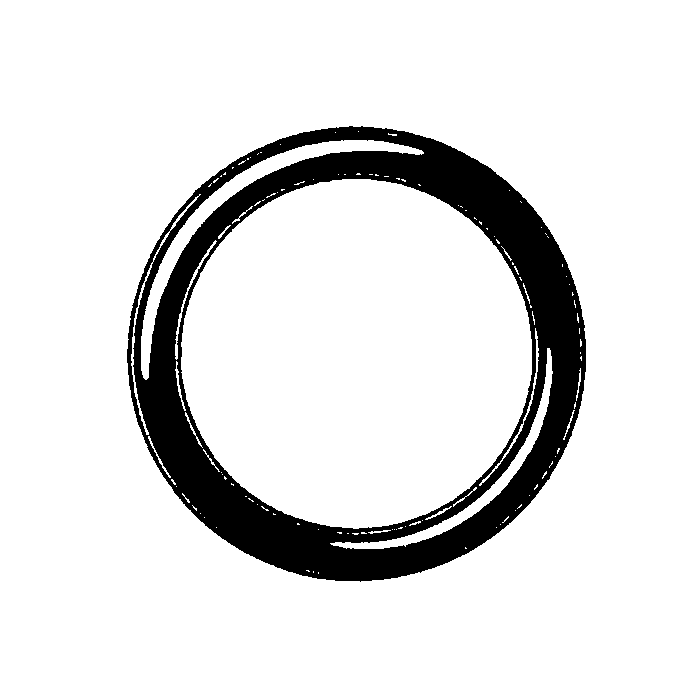

70 Durometer Buna-N O-Ring, Inch OD, 1-1/4 Inch ID, 0.14 Inch Width
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Supplier Part Number
568-218
Alternate Part Numbers
Alternate Part Number
568-218 ,
Alternate Part Number
A-218-ORING ,
Alternate Part Number
C1CE67 ,
Alternate Part Number
MI-08740424 ,
Alternate Part Number
MINO-00407X90424
trying to match up an old o-ring, is this the -218 dash size with a 1-1/4 inch ID?
Question by: Denise B on Mar 16, 2026, 12:11 PM
For fit confirmation, this one is dash size -218 with a nominal 1-1/4 inch inside diameter and a nominal 1/8 inch width. The actual measured ID is listed as 1.234 inches and the actual width as 0.139 inch.
Answer by: Customer Support on Mar 17, 2026, 7:17 PM
what's the temp range on this o-ring? got some equipment runnin pretty hot and need to know if buna-n can handle it
Question by: Debbie B on Apr 1, 2025, 7:11 AM
Buna-N at 70 durometer holds up from negative 40 degrees Fahrenheit all the way to 240 degrees Fahrenheit. If your equipment is staying under that 240 mark, you should be in good shape. Push past that ceiling and you'll start seeing the material break down faster than you'd want.
Answer by: Customer Support on Apr 3, 2025, 6:28 AM
What's the inside and outside diameter on this o-ring? Gotta make sure it's the right fit for my application.
Question by: Shawn F on Nov 2, 2025, 4:19 PM
This O-ring has an actual inner diameter of 1.234 inches and an actual outer diameter of 1.512 inches. The actual width is 0.139 inches. Make sure those measurements line up with your needs.
Answer by: Customer Support on Nov 3, 2025, 4:31 PM
these come in a 20-pack right? trying to figure out how many bags to order for a decent stock on hand
Question by: Dean P on Jul 18, 2025, 11:11 AM
20 pieces per package. Makes it pretty easy to stock up without ordering a bunch of individual rings. If you go through these regular, ordering a couple packs at a time keeps you covered without a big outlay.
Answer by: Customer Support on Jul 20, 2025, 8:26 AM
Similar Products
Model Number
Dash Size
Nominal I.D. (in)
Nominal O.D.
Nominal Width
Actual I.D.
Actual O.D.
Actual Width
Package Qty.
Price
Buy Now
A-008
-008
3/16
5/16
1/16
0.176
0.316
0.07 in
50
A-011
-011
5/16
7/16
1/16
0.301
0.441
0.07 in
50
A-013
-013
7/16
9/16
1/16
0.426
0.566
0.07 in
50
A-017
-017
11/16
13/16
1/16
0.676
0.816
0.07 in
50
A-020
-020
7/8
1
1/16
0.864
1.004
0.07 in
50
A-022
-022
1
1-1/8
1/16
0.989
1.129
0.07 in
50
A-024
-024
1-1/8
1-1/4
1/16
1.114
1.254
0.07 in
50
A-029
-029
1-1/2
1-5/8
1/16
1.489
1.629
0.07 in
20
A-037
-037
2-1/2
2-5/8
1/16
2.489
2.629
0.07 in
20
A-038
-038
2-5/8
2-3/4
1/16
2.614
2.754
0.07 in
10
A-043
-043
3-1/2
3-5/8
1/16
3.489
3.629
0.07 in
10
A-045
-045
4
4-1/8
1/16
3.989
4.129
0.07 in
10
A-112
-112
1/2
11/16
3/32
0.487
0.693
0.103 in
50
A-118
-118
7/8
1-1/16
3/32
0.862
1.068
0.103 in
50
A-121
-121
1-1/16
1-1/4
3/32
1.049
1.255
0.103 in
50
A-131-ORING
-131
1-11/16
1-7/8
3/32
1.674
1.88
0.103 in
20
A-136
-136
2
2-3/16
3/32
1.987
2.193
0.103 in
20
A-140
-140
2-1/4
2-7/16
3/32
2.237
2.443
0.103 in
20
A-146
-146
2-5/8
2-13/16
3/32
2.612
2.818
0.103 in
20
A-152
-152
3-1/4
3-7/16
3/32
3.237
3.443
0.103 in
10
A-159
-159
5
5-3/16
3/32
4.987
5.193
0.103 in
4
A-169
-169
7-1/2
7-11/16
3/32
7.487
7.693
0.103 in
2
A-214
-214
1
1-1/4
1/8
0.984
1.262
0.139 in
20
A-218
-218
1-1/4
1-1/2
1/8
1.234
1.512
0.139 in
20
A-221
-221
1-7/16
1-11/16
1/8
1.421
1.699
0.139 in
20
A-231
-231
2-5/8
2-7/8
1/8
2.609
2.887
0.139 in
10
A-232
-232
2-3/4
3
1/8
2.734
3.012
0.139 in
10
A-233
-233
2-7/8
3-1/8
1/8
2.859
3.137
0.139 in
10
A-234
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-236
-236
3-1/4
3-1/2
1/8
3.234
3.512
0.139 in
10
A-238-ORING
-238
3-1/2
3-3/4
1/8
3.484
3.762
0.139 in
10
A-242-ORING
-242
4
4-1/4
1/8
3.984
4.262
0.139 in
10
A-244
-244
4-1/4
4-1/2
1/8
4.234
4.512
0.139 in
10
A-248
-248
4-3/4
5
1/8
4.734
5.012
0.139 in
4
A-251
-251
5-1/8
5-3/8
1/8
5.109
5.387
0.139 in
4
A-252
-252
5-1/4
5-1/2
1/8
5.234
5.512
0.139 in
4
A-256
-256
5-3/4
6
1/8
5.734
6.012
0.139 in
4
A-329
-329
2
2-3/8
3/16
1.975
2.395
0.21 in
20
A-334
-334
2-5/8
3
3/16
2.6
3.02
0.21 in
20
A-338
-338
3-1/8
3-1/2
3/16
3.1
3.52
0.21 in
10
A-342
-342
3-5/8
4
3/16
3.6
4.02
0.21 in
4
A-346
-346
4-1/8
4-1/2
3/16
4.1
4.52
0.21 in
4
568-450
-450
10-1/2
11
1/4
10.475
11.025
0.275 in
1
A-003
-003
1/16
3/16
1/16
0.056
0.176
0.06 in
50
A-005
-005
3/32
7/32
1/16
0.101
0.241
0.07 in
50
A-006
-006
1/8
1/4
1/16
0.114
0.254
0.07 in
50
A-007
-007
5/32
9/32
1/16
0.145
0.285
0.07 in
50
A-009
-009
7/32
11/32
1/16
0.208
0.348
0.07 in
50
A-010
-010
1/4
3/8
1/16
0.239
0.379
0.07 in
50
A-012
-012
3/8
1/2
1/16
0.364
0.504
0.07 in
50
A-014
-014
1/2
5/8
1/16
0.489
0.629
0.07 in
50
A-015
-015
9/16
11/16
1/16
0.551
0.691
0.07 in
50
A-016
-016
5/8
3/4
1/16
0.614
0.754
0.07 in
50
A-019
-019
13/16
15/16
1/16
0.801
0.941
0.07 in
50
A-021
-021
15/16
1-1/16
1/16
0.926
1.066
0.07 in
50
A-023
-023
1-1/16
1-3/16
1/16
1.051
1.191
0.07 in
50
A-025
-025
1-3/16
1-5/16
1/16
1.176
1.316
0.07 in
50
A-026
-026
1-1/4
1-3/8
1/16
1.239
1.379
0.07 in
50
A-027
-027
1-5/16
1-7/16
1/16
1.301
1.441
0.07 in
50
A-028
-028
1-3/8
1-1/2
1/16
1.364
1.504
0.07 in
20
A-030
-030
1-5/8
1-3/4
1/16
1.614
1.754
0.07 in
20
A-031
-031
1-3/4
1-7/8
1/16
1.739
1.879
0.07 in
20
A-032
-032
1-7/8
2
1/16
1.864
2.004
0.07 in
20
A-033
-033
2
2-1/8
1/16
1.989
2.129
0.07 in
20
A-034
-034
2-1/8
2-1/4
1/16
2.114
2.254
0.07 in
20
A-035
-035
2-1/4
2-3/8
1/16
2.239
2.379
0.07 in
20
A-036
-036
2-3/8
2-1/2
1/16
2.364
2.504
0.07 in
20
A-039
-039
2-3/4
2-7/8
1/16
2.739
2.879
0.07 in
10
A-040
-040
2-7/8
3
1/16
2.864
3.004
0.07 in
10
A-041
-041
3
3-1/8
1/16
2.989
3.129
0.07 in
10
A-042
-042
3-1/4
3-3/8
1/16
3.239
3.379
0.07 in
10
A-044
-044
3-3/4
3-7/8
1/16
3.739
3.879
0.07 in
10
A-048
-048
4-3/4
4-7/8
1/16
4.739
4.879
0.07 in
4
A-049
-049
5
5-1/8
1/16
4.989
5.129
0.07 in
4
A-106
-106
3/16
3/8
3/32
0.174
0.38
0.103 in
50
A-107
-107
7/32
13/32
3/32
0.206
0.412
0.103 in
50
A-108
-108
1/4
7/16
3/32
0.237
0.443
0.103 in
50
A-109
-109
5/16
1/2
3/32
0.299
0.505
0.103 in
50
A-110-ORING
-110
3/8
9/16
3/32
0.362
0.568
0.103 in
50
A-111
-111
7/16
5/8
3/32
0.424
0.63
0.103 in
50
A-114
-114
5/8
13/16
3/32
0.612
0.818
0.103 in
50
A-115
-115
11/16
7/8
3/32
0.674
0.88
0.103 in
50
A-116
-116
3/4
15/16
3/32
0.737
0.943
0.103 in
50
A-117
-117
13/16
1
3/32
0.799
1.005
0.103 in
50
A-119
-119
15/16
1-1/8
3/32
0.924
1.13
0.103 in
50
A-120
-120
1
1-3/16
3/32
0.987
1.193
0.103 in
50
A-122
-122
1-1/8
1-5/16
3/32
1.112
1.318
0.103 in
20
A-123
-123
1-3/16
1-3/8
3/32
1.174
1.38
0.103 in
20
A-124
-124
1-1/4
1-7/16
3/32
1.237
1.443
0.103 in
20
A-125
-125
1-5/16
1-1/2
3/32
1.299
1.505
0.103 in
20
A-126
-126
1-3/8
1-9/16
3/32
1.362
1.568
0.103 in
20
A-127
-127
1-7/16
1-5/8
3/32
1.424
1.63
0.103 in
20
A-128
-128
1-1/2
1-11/16
3/32
1.487
1.693
0.103 in
20
A-129-ORING
-129
1-9/16
1-3/4
3/32
1.549
1.755
0.103 in
20
A-130
-130
1-5/8
1-13/16
3/32
1.612
1.818
0.103 in
20
A-132-ORING
-132
1-3/4
1-15/16
3/32
1.737
1.943
0.103 in
20
A-133
-133
1-13/16
2
3/32
1.799
2.005
0.103 in
20
A-134
-134
1-7/8
2-1/16
3/32
1.862
2.068
0.103 in
20
A-135
-135
1-15/16
2-1/8
3/32
1.925
2.131
0.103 in
20
A-138
-138
2-1/8
2-5/16
3/32
2.112
2.318
0.103 in
20
A-139
-139
2-3/16
2-3/8
3/32
2.175
2.381
0.103 in
20
A-141-ORING
-141
2-5/16
2-1/2
3/32
2.3
2.506
0.103 in
20
A-142
-142
2-3/8
2-9/16
3/32
2.362
2.568
0.103 in
20
A-143
-143
2-7/16
2-5/8
3/32
2.425
2.631
0.103 in
20
A-144
-144
2-1/2
2-11/16
3/32
2.487
2.693
0.103 in
20
A-145
-145
2-9/16
2-3/4
3/32
2.55
2.756
0.103 in
20
A-147
-147
2-11/16
2-7/8
3/32
2.675
2.881
0.103 in
20
A-148
-148
2-3/4
2-15/16
3/32
2.737
2.943
0.103 in
10
A-149
-149
2-13/16
3
3/32
2.8
3.006
0.103 in
10
A-150
-150
2-7/8
3-1/16
3/32
2.862
3.068
0.103 in
10
A-151
-151
3
3-3/16
3/32
2.987
3.193
0.103 in
10
A-153
-153
3-1/2
3-11/16
3/32
3.487
3.693
0.103 in
10
A-154
-154
3-3/4
3-15/16
3/32
3.737
3.943
0.103 in
10
A-155
-155
4
4-3/16
3/32
3.987
4.193
0.103 in
10
A-156
-156
4-1/4
4-7/16
3/32
4.237
4.443
0.103 in
10
A-157
-157
4-1/2
4-11/16
3/32
4.487
4.693
0.103 in
4
A-158
-158
4-3/4
4-15/16
3/32
4.737
4.943
0.103 in
4
A-160
-160
5-1/4
5-7/16
3/32
5.237
5.443
0.103 in
4
A-161
-161
5-1/2
5-11/16
3/32
5.487
5.693
0.103 in
4
A-163
-163
6
6-3/16
3/32
5.987
6.193
0.103 in
2
A-164
-164
6-1/4
6-7/16
3/32
6.237
6.443
0.103 in
2
A-170
-170
7-3/4
7-15/16
3/32
7.737
7.943
0.103 in
2
A-172
-172
8-1/4
8-7/16
3/32
8.237
8.443
0.103 in
2
A-202
-202
1/4
1/2
1/8
0.234
0.512
0.139 in
50
A-203
-203
5/16
9/16
1/8
0.296
0.574
0.139 in
50
A-204
-204
3/8
5/8
1/8
0.359
0.637
0.139 in
50
A-205
-205
7/16
11/16
1/8
0.421
0.699
0.139 in
50
A-206
-206
1/2
3/4
1/8
0.484
0.762
0.139 in
50
A-208
-208
5/8
7/8
1/8
0.609
0.887
0.139 in
20
A-209
-209
11/16
15/16
1/8
0.671
0.949
0.139 in
20
A-210-ORING
-210
3/4
1
1/8
0.734
1.012
0.139 in
20
A-213
-213
15/16
1-3/16
1/8
0.921
1.199
0.139 in
20
A-215
-215
1-1/16
1-5/16
1/8
1.046
1.324
0.139 in
20
A-216
-216
1-1/8
1-3/8
1/8
1.109
1.387
0.139 in
20
A-217
-217
1-3/16
1-7/16
1/8
1.171
1.449
0.139 in
20
A-219
-219
1-5/16
1-9/16
1/8
1.296
1.574
0.139 in
20
A-220
-220
1-3/8
1-5/8
1/8
1.359
1.637
0.139 in
20
A-222
-222
1-1/2
1-3/4
1/8
1.484
1.762
0.139 in
20
A-223
-223
1-5/8
1-7/8
1/8
1.609
1.887
0.139 in
20
A-224
-224
1-3/4
2
1/8
1.734
2.012
0.139 in
20
A-225
-225
1-7/8
2-1/8
1/8
1.859
2.137
0.139 in
20
A-226
-226
2
2-1/4
1/8
1.984
2.262
0.139 in
20
A-227
-227
2-1/8
2-3/8
1/8
2.109
2.387
0.139 in
20
A-229
-229
2-3/8
2-5/8
1/8
2.359
2.637
0.139 in
20
A-230
-230
2-1/2
2-3/4
1/8
2.484
2.762
0.139 in
10
A-234-VITON
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-235
-235
3-1/8
3-3/8
1/8
3.109
3.387
0.139 in
10
A-237
-237
3-3/8
3-5/8
1/8
3.359
3.637
0.139 in
10
A-239-ORING
-239
3-5/8
3-7/8
1/8
3.609
3.887
0.139 in
10
A-240-ORING
-240
3-3/4
4
1/8
3.734
4.012
0.139 in
10
A-241-ORING
-241
3-7/8
4-1/8
1/8
3.859
4.137
0.139 in
10
A-243
-243
4-1/8
4-3/8
1/8
4.109
4.387
0.139 in
10
A-245
-245
4-3/8
4-5/8
1/8
4.359
4.637
0.139 in
4
A-246
-246
4-1/2
4-3/4
1/8
4.484
4.762
0.139 in
4
A-247
-247
4-5/8
4-7/8
1/8
4.609
4.887
0.139 in
4
A-249
-249
4-7/8
5-1/8
1/8
4.859
5.137
0.139 in
4
A-250
-250
5
5-1/4
1/8
4.984
5.262
0.139 in
4
A-253
-253
5-3/8
5-5/8
1/8
5.359
5.637
0.139 in
4
A-254
-254
5-1/2
5-3/4
1/8
5.484
5.762
0.139 in
4
A-255
-255
5-5/8
5-7/8
1/8
5.609
5.887
0.139 in
4
A-257
-257
5-7/8
6-1/8
1/8
5.859
6.137
0.139 in
2
A-258-ORING
-258
6
6-1/4
1/8
5.984
6.262
0.139 in
2
A-259
-259
6-1/4
6-1/2
1/8
6.234
6.512
0.139 in
2
A-260
-260
6-1/2
6-3/4
1/8
6.484
6.762
0.139 in
2
A-261
-261
6-3/4
7
1/8
6.734
7.012
0.139 in
2
A-262
-262
7
7-1/4
1/8
6.984
7.262
0.139 in
2
A-263
-263
7-1/4
7-1/2
1/8
7.234
7.512
0.139 in
2
A-264
-264
7-1/2
7-3/4
1/8
7.484
7.762
0.139 in
2
A-265
-265
7-3/4
8
1/8
7.734
8.012
0.139 in
2
A-266
-266
8
8-1/4
1/8
7.984
8.262
0.139 in
2
A-267
-267
8-1/4
8-1/2
1/8
8.234
8.512
0.139 in
2
A-268
-268
8-1/2
8-3/4
1/8
8.484
8.762
0.139 in
2
A-269
-269
8-3/4
9
1/8
8.734
9.012
0.139 in
2
A-274
-274
10
10-1/4
1/8
9.984
10.262
0.139 in
2
A-275
-275
10-1/2
10-3/4
1/8
10.484
10.762
0.139 in
2
A-276
-276
11
11-1/4
1/8
10.984
11.262
0.139 in
1
A-277
-277
11-1/2
11-3/4
1/8
11.484
11.762
0.139 in
1
A-278
-278
12
12-1/4
1/8
11.984
12.262
0.139 in
1
A-282
-282
16
16-1/4
1/8
15.955
16.233
0.139 in
1
A-311
-311
9/16
15/16
3/16
0.537
0.957
0.21 in
50
A-312
-312
5/8
1
3/16
0.6
1.02
0.21 in
50
A-313
-313
11/16
1-1/16
3/16
0.662
1.082
0.21 in
50
A-314
-314
3/4
1-1/8
3/16
0.725
1.145
0.21 in
50
A-315
-315
13/16
1-3/16
3/16
0.787
1.207
0.21 in
20
A-316
-316
7/8
1-1/4
3/16
0.85
1.27
0.21 in
50
A-318
-318
1
1-3/8
3/16
0.975
1.395
0.21 in
20
A-319
-319
1-1/16
1-7/16
3/16
1.037
1.457
0.21 in
50
A-320
-320
1-1/8
1-1/2
3/16
1.1
1.52
0.21 in
20
A-321
-321
1-3/16
1-9/16
3/16
1.162
1.582
0.21 in
20
A-322
-322
1-1/4
1-5/8
3/16
1.225
1.645
0.21 in
20
A-323
-323
1-5/16
1-11/16
3/16
1.287
1.707
0.21 in
10
A-324
-324
1-3/8
1-3/4
3/16
1.35
1.77
0.21 in
20
A-325
-325
1-1/2
1-7/8
3/16
1.475
1.895
0.21 in
20
A-326
-326
1-5/8
2
3/16
1.6
2.02
0.21 in
20
A-327
-327
1-3/4
2-1/8
3/16
1.725
2.145
0.21 in
20
A-328
-328
1-7/8
2-1/4
3/16
1.85
2.27
0.21 in
20
A-331
-331
2-1/4
2-5/8
3/16
2.225
2.645
0.21 in
20
A-332
-332
2-3/8
2-3/4
3/16
2.35
2.77
0.21 in
20
A-333
-333
2-1/2
2-7/8
3/16
2.475
2.895
0.21 in
20
A-335
-335
2-3/4
3-1/8
3/16
2.725
3.145
0.21 in
10
A-336
-336
2-7/8
3-1/4
3/16
2.85
3.27
0.21 in
10
A-337
-337
3
3-3/8
3/16
2.975
3.395
0.21 in
10
A-339
-339
3-1/4
3-5/8
3/16
3.225
3.645
0.21 in
10
A-340
-340
3-3/8
3-3/4
3/16
3.35
3.77
0.21 in
10
A-343
-343
3-3/4
4-1/8
3/16
3.725
4.145
0.21 in
4
A-344
-344
3-7/8
4-1/4
3/16
3.85
4.27
0.21 in
4
A-347
-347
4-1/4
4-5/8
3/16
4.225
4.645
0.21 in
4
A-348
-348
4-3/8
4-3/4
3/16
4.35
4.77
0.21 in
4
A-349
-349
4-1/2
4-7/8
3/16
4.475
4.895
0.21 in
4
A-350
-350
4-5/8
5
3/16
4.6
5.02
0.21 in
4
A-351
-351
4-3/4
5-1/8
3/16
4.725
5.145
0.21 in
4
A-352
-352
4-7/8
5-1/4
3/16
4.85
5.27
0.21 in
4
A-353
-353
5
5-3/8
3/16
4.975
5.395
0.21 in
4
A-355
-355
5-1/4
5-5/8
3/16
5.225
5.645
0.21 in
4
A-356
-356
5-3/8
5-3/4
3/16
5.35
5.77
0.21 in
4
A-358
-358
5-5/8
6
3/16
5.6
6.02
0.21 in
4
A-360
-360
5-7/8
6-1/4
3/16
5.85
6.27
0.21 in
4
A-362
-362
6-1/4
6-5/8
3/16
6.225
6.645
0.21 in
4
A-363
-363
6-1/2
6-7/8
3/16
6.475
6.895
0.21 in
4
A-364
-364
6-3/4
7-1/8
3/16
6.725
7.145
0.21 in
4
A-366
-366
7-1/4
7-5/8
3/16
7.225
7.645
0.21 in
2
A-367
-367
7-1/2
7-7/8
3/16
7.475
7.895
0.21 in
2
A-378
-378
10-1/2
10-7/8
3/16
10.475
10.895
0.21 in
1
A-426
-426
4-5/8
5-1/8
1/4
4.6
5.15
0.275 in
4
A-427
-427
4-3/4
5-1/4
1/4
4.725
5.275
0.275 in
4
A-428
-428
4-7/8
5-3/8
1/4
4.85
5.4
0.275 in
4
A-429
-429
5
5-1/2
1/4
4.975
5.525
0.275 in
4
A-432
-432
5-3/8
5-7/8
1/4
5.35
5.9
0.275 in
4
A-434
-434
5-5/8
6-1/8
1/4
5.6
6.15
0.275 in
4
A-435
-435
5-3/4
6-1/4
1/4
5.725
6.275
0.275 in
4
A-436
-436
5-7/8
6-3/8
1/4
5.85
6.4
0.275 in
4
A-437
-437
6
6-1/2
1/4
5.975
6.525
0.275 in
2
A-438
-438
6-1/4
6-3/4
1/4
6.225
6.775
0.275 in
2
A-439
-439
6-1/2
7
1/4
6.475
7.025
0.275 in
2
A-441
-441
7
7-1/2
1/4
6.975
7.525
0.275 in
2
A-443
-443
7-1/2
8
1/4
7.475
8.025
0.275 in
2
A-446
-446
8-1/2
9
1/4
8.475
9.025
0.275 in
2
A-448
-448
9-1/2
10
1/4
9.475
10.025
0.275 in
2
A-345
-345
4
4-3/8
3/16
3.975
4.395
0.21 in
4
A-113
-113
9/16
3/4
3/32
0.549
0.755
0.103 in
50
A-137
-137
2-1/16
2-1/4
3/32
2.05
2.256
0.103 in
20
A-207
-207
9/16
13/16
1/8
0.546
0.824
0.139 in
50
A-211
-211
13/16
1-1/16
1/8
0.796
1.074
0.139 in
20
A-212
-212
7/8
1-1/8
1/8
0.859
1.137
0.139 in
20
A-228
-228
2-1/4
2-1/2
1/8
2.234
2.512
0.139 in
20
A-330
-330
2-1/8
2-1/2
3/16
2.1
2.52
0.21 in
20
A-341
-341
3-1/2
3-7/8
3/16
3.475
3.895
0.21 in
4
A-354
-354
5-1/8
5-1/2
3/16
5.1
5.52
0.21 in
4
A-357
-357
5-1/2
5-7/8
3/16
5.475
5.895
0.21 in
4
A-425
-425
4-1/2
5
1/4
4.475
5.025
0.275 in
4
A-433
-433
5-1/2
6
1/4
5.475
6.025
0.275 in
4
A-440
-440
6-3/4
7-1/4
1/4
6.725
7.275
0.275 in
2
