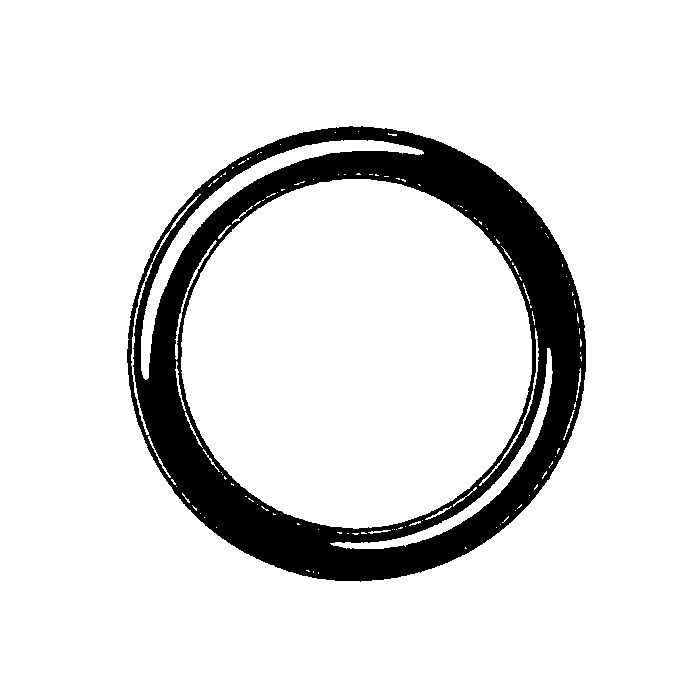

70 Durometer Buna-N O-Ring, Inch OD, 1/2 Inch ID, 0.10 Inch Width
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Supplier Part Number
568-112
Alternate Part Numbers
Alternate Part Number
568-112 ,
Alternate Part Number
C1CD67 ,
Alternate Part Number
MI-08740349 ,
Alternate Part Number
MINO-00407X90349
got a groove cut for a -112 o-ring. is this the right dash size and what are the actual measurements?
Question by: Dale P on Jan 11, 2026, 1:19 PM
It matches dash size -112, with a nominal 1/2 inch ID, 11/16 inch OD, and 3/32 inch cross section. The actual measured dimensions are about 0.487 inch ID, 0.693 inch OD, and 0.103 inch width.
Answer by: Customer Support on Jan 12, 2026, 4:22 PM
runs from -40 up to 240 degrees fahrenheit on this o-ring, but what's it actually made of and will that hold up in a hydraulic fluid environment?
Question by: Tommy C on Oct 7, 2025, 12:52 PM
Buna-N rubber at 70 durometer is about as common as it gets for hydraulic sealing work. That material handles petroleum-based hydraulic oils well and the 70 durometer rating puts it right in the middle range for hardness, firm enough to resist extrusion under pressure but still pliable enough to seat properly. The temperature window of -40°F to 240°F covers most standard hydraulic system operating conditions without issue.
Answer by: Customer Support on Oct 8, 2025, 2:21 PM
What size is this o-ring actually? I see the nominal, but what's the real deal?
Question by: Shawn M on Mar 11, 2026, 8:50 AM
Actual dimensions are an OD of 0.693 inches, an ID of 0.487 inches, and a width of 0.103 inches.
Answer by: Customer Support on Mar 12, 2026, 11:33 AM
i’ve got a dash -112 o-ring i’m swapping out, is this the right size or am i gonna be fighting it?
Question by: Bobby R on Mar 25, 2025, 8:13 PM
For a -112 size, the nominal dimensions are 1/2 inch ID, 11/16 inch OD, and 3/32 inch width. The actual measured dimensions listed are 0.487 inch ID, 0.693 inch OD, and 0.103 inch width, so it should line up with a standard -112 replacement.
Answer by: Customer Support on Mar 27, 2025, 11:27 AM
what temp range is this o-ring good for? got some equipment that sees pretty cold winters and hot summer conditions both
Question by: Dean B on Oct 25, 2025, 4:18 PM
Buna-N at 70 durometer holds up from -40°F all the way to 240°F, so seasonal temperature swings on outdoor equipment generally fall well within that range. Cold starts and summer heat cycles both stay inside those limits without pushing the material toward cracking or excessive softening.
Answer by: Customer Support on Oct 27, 2025, 6:08 AM
What's the temperature range on these o-rings?
Question by: Dwight E on Oct 19, 2025, 10:26 AM
These Buna-N o-rings are rated for use between -40°F and 240°F.
Answer by: Customer Support on Oct 20, 2025, 4:45 PM
Similar Products
Model Number
Dash Size
Nominal I.D. (in)
Nominal O.D.
Nominal Width
Actual I.D.
Actual O.D.
Actual Width
Package Qty.
Price
Buy Now
A-008
-008
3/16
5/16
1/16
0.176
0.316
0.07 in
50
A-011
-011
5/16
7/16
1/16
0.301
0.441
0.07 in
50
A-013
-013
7/16
9/16
1/16
0.426
0.566
0.07 in
50
A-017
-017
11/16
13/16
1/16
0.676
0.816
0.07 in
50
A-020
-020
7/8
1
1/16
0.864
1.004
0.07 in
50
A-022
-022
1
1-1/8
1/16
0.989
1.129
0.07 in
50
A-024
-024
1-1/8
1-1/4
1/16
1.114
1.254
0.07 in
50
A-029
-029
1-1/2
1-5/8
1/16
1.489
1.629
0.07 in
20
A-037
-037
2-1/2
2-5/8
1/16
2.489
2.629
0.07 in
20
A-038
-038
2-5/8
2-3/4
1/16
2.614
2.754
0.07 in
10
A-043
-043
3-1/2
3-5/8
1/16
3.489
3.629
0.07 in
10
A-045
-045
4
4-1/8
1/16
3.989
4.129
0.07 in
10
A-112
-112
1/2
11/16
3/32
0.487
0.693
0.103 in
50
A-118
-118
7/8
1-1/16
3/32
0.862
1.068
0.103 in
50
A-121
-121
1-1/16
1-1/4
3/32
1.049
1.255
0.103 in
50
A-131-ORING
-131
1-11/16
1-7/8
3/32
1.674
1.88
0.103 in
20
A-136
-136
2
2-3/16
3/32
1.987
2.193
0.103 in
20
A-140
-140
2-1/4
2-7/16
3/32
2.237
2.443
0.103 in
20
A-146
-146
2-5/8
2-13/16
3/32
2.612
2.818
0.103 in
20
A-152
-152
3-1/4
3-7/16
3/32
3.237
3.443
0.103 in
10
A-159
-159
5
5-3/16
3/32
4.987
5.193
0.103 in
4
A-169
-169
7-1/2
7-11/16
3/32
7.487
7.693
0.103 in
2
A-214
-214
1
1-1/4
1/8
0.984
1.262
0.139 in
20
A-218
-218
1-1/4
1-1/2
1/8
1.234
1.512
0.139 in
20
A-221
-221
1-7/16
1-11/16
1/8
1.421
1.699
0.139 in
20
A-231
-231
2-5/8
2-7/8
1/8
2.609
2.887
0.139 in
10
A-232
-232
2-3/4
3
1/8
2.734
3.012
0.139 in
10
A-233
-233
2-7/8
3-1/8
1/8
2.859
3.137
0.139 in
10
A-234
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-236
-236
3-1/4
3-1/2
1/8
3.234
3.512
0.139 in
10
A-238-ORING
-238
3-1/2
3-3/4
1/8
3.484
3.762
0.139 in
10
A-242-ORING
-242
4
4-1/4
1/8
3.984
4.262
0.139 in
10
A-244
-244
4-1/4
4-1/2
1/8
4.234
4.512
0.139 in
10
A-248
-248
4-3/4
5
1/8
4.734
5.012
0.139 in
4
A-251
-251
5-1/8
5-3/8
1/8
5.109
5.387
0.139 in
4
A-252
-252
5-1/4
5-1/2
1/8
5.234
5.512
0.139 in
4
A-256
-256
5-3/4
6
1/8
5.734
6.012
0.139 in
4
A-329
-329
2
2-3/8
3/16
1.975
2.395
0.21 in
20
A-334
-334
2-5/8
3
3/16
2.6
3.02
0.21 in
20
A-338
-338
3-1/8
3-1/2
3/16
3.1
3.52
0.21 in
10
A-342
-342
3-5/8
4
3/16
3.6
4.02
0.21 in
4
A-346
-346
4-1/8
4-1/2
3/16
4.1
4.52
0.21 in
4
568-450
-450
10-1/2
11
1/4
10.475
11.025
0.275 in
1
A-003
-003
1/16
3/16
1/16
0.056
0.176
0.06 in
50
A-005
-005
3/32
7/32
1/16
0.101
0.241
0.07 in
50
A-006
-006
1/8
1/4
1/16
0.114
0.254
0.07 in
50
A-007
-007
5/32
9/32
1/16
0.145
0.285
0.07 in
50
A-009
-009
7/32
11/32
1/16
0.208
0.348
0.07 in
50
A-010
-010
1/4
3/8
1/16
0.239
0.379
0.07 in
50
A-012
-012
3/8
1/2
1/16
0.364
0.504
0.07 in
50
A-014
-014
1/2
5/8
1/16
0.489
0.629
0.07 in
50
A-015
-015
9/16
11/16
1/16
0.551
0.691
0.07 in
50
A-016
-016
5/8
3/4
1/16
0.614
0.754
0.07 in
50
A-019
-019
13/16
15/16
1/16
0.801
0.941
0.07 in
50
A-021
-021
15/16
1-1/16
1/16
0.926
1.066
0.07 in
50
A-023
-023
1-1/16
1-3/16
1/16
1.051
1.191
0.07 in
50
A-025
-025
1-3/16
1-5/16
1/16
1.176
1.316
0.07 in
50
A-026
-026
1-1/4
1-3/8
1/16
1.239
1.379
0.07 in
50
A-027
-027
1-5/16
1-7/16
1/16
1.301
1.441
0.07 in
50
A-028
-028
1-3/8
1-1/2
1/16
1.364
1.504
0.07 in
20
A-030
-030
1-5/8
1-3/4
1/16
1.614
1.754
0.07 in
20
A-031
-031
1-3/4
1-7/8
1/16
1.739
1.879
0.07 in
20
A-032
-032
1-7/8
2
1/16
1.864
2.004
0.07 in
20
A-033
-033
2
2-1/8
1/16
1.989
2.129
0.07 in
20
A-034
-034
2-1/8
2-1/4
1/16
2.114
2.254
0.07 in
20
A-035
-035
2-1/4
2-3/8
1/16
2.239
2.379
0.07 in
20
A-036
-036
2-3/8
2-1/2
1/16
2.364
2.504
0.07 in
20
A-039
-039
2-3/4
2-7/8
1/16
2.739
2.879
0.07 in
10
A-040
-040
2-7/8
3
1/16
2.864
3.004
0.07 in
10
A-041
-041
3
3-1/8
1/16
2.989
3.129
0.07 in
10
A-042
-042
3-1/4
3-3/8
1/16
3.239
3.379
0.07 in
10
A-044
-044
3-3/4
3-7/8
1/16
3.739
3.879
0.07 in
10
A-048
-048
4-3/4
4-7/8
1/16
4.739
4.879
0.07 in
4
A-049
-049
5
5-1/8
1/16
4.989
5.129
0.07 in
4
A-106
-106
3/16
3/8
3/32
0.174
0.38
0.103 in
50
A-107
-107
7/32
13/32
3/32
0.206
0.412
0.103 in
50
A-108
-108
1/4
7/16
3/32
0.237
0.443
0.103 in
50
A-109
-109
5/16
1/2
3/32
0.299
0.505
0.103 in
50
A-110-ORING
-110
3/8
9/16
3/32
0.362
0.568
0.103 in
50
A-111
-111
7/16
5/8
3/32
0.424
0.63
0.103 in
50
A-114
-114
5/8
13/16
3/32
0.612
0.818
0.103 in
50
A-115
-115
11/16
7/8
3/32
0.674
0.88
0.103 in
50
A-116
-116
3/4
15/16
3/32
0.737
0.943
0.103 in
50
A-117
-117
13/16
1
3/32
0.799
1.005
0.103 in
50
A-119
-119
15/16
1-1/8
3/32
0.924
1.13
0.103 in
50
A-120
-120
1
1-3/16
3/32
0.987
1.193
0.103 in
50
A-122
-122
1-1/8
1-5/16
3/32
1.112
1.318
0.103 in
20
A-123
-123
1-3/16
1-3/8
3/32
1.174
1.38
0.103 in
20
A-124
-124
1-1/4
1-7/16
3/32
1.237
1.443
0.103 in
20
A-125
-125
1-5/16
1-1/2
3/32
1.299
1.505
0.103 in
20
A-126
-126
1-3/8
1-9/16
3/32
1.362
1.568
0.103 in
20
A-127
-127
1-7/16
1-5/8
3/32
1.424
1.63
0.103 in
20
A-128
-128
1-1/2
1-11/16
3/32
1.487
1.693
0.103 in
20
A-129-ORING
-129
1-9/16
1-3/4
3/32
1.549
1.755
0.103 in
20
A-130
-130
1-5/8
1-13/16
3/32
1.612
1.818
0.103 in
20
A-132-ORING
-132
1-3/4
1-15/16
3/32
1.737
1.943
0.103 in
20
A-133
-133
1-13/16
2
3/32
1.799
2.005
0.103 in
20
A-134
-134
1-7/8
2-1/16
3/32
1.862
2.068
0.103 in
20
A-135
-135
1-15/16
2-1/8
3/32
1.925
2.131
0.103 in
20
A-138
-138
2-1/8
2-5/16
3/32
2.112
2.318
0.103 in
20
A-139
-139
2-3/16
2-3/8
3/32
2.175
2.381
0.103 in
20
A-141-ORING
-141
2-5/16
2-1/2
3/32
2.3
2.506
0.103 in
20
A-142
-142
2-3/8
2-9/16
3/32
2.362
2.568
0.103 in
20
A-143
-143
2-7/16
2-5/8
3/32
2.425
2.631
0.103 in
20
A-144
-144
2-1/2
2-11/16
3/32
2.487
2.693
0.103 in
20
A-145
-145
2-9/16
2-3/4
3/32
2.55
2.756
0.103 in
20
A-147
-147
2-11/16
2-7/8
3/32
2.675
2.881
0.103 in
20
A-148
-148
2-3/4
2-15/16
3/32
2.737
2.943
0.103 in
10
A-149
-149
2-13/16
3
3/32
2.8
3.006
0.103 in
10
A-150
-150
2-7/8
3-1/16
3/32
2.862
3.068
0.103 in
10
A-151
-151
3
3-3/16
3/32
2.987
3.193
0.103 in
10
A-153
-153
3-1/2
3-11/16
3/32
3.487
3.693
0.103 in
10
A-154
-154
3-3/4
3-15/16
3/32
3.737
3.943
0.103 in
10
A-155
-155
4
4-3/16
3/32
3.987
4.193
0.103 in
10
A-156
-156
4-1/4
4-7/16
3/32
4.237
4.443
0.103 in
10
A-157
-157
4-1/2
4-11/16
3/32
4.487
4.693
0.103 in
4
A-158
-158
4-3/4
4-15/16
3/32
4.737
4.943
0.103 in
4
A-160
-160
5-1/4
5-7/16
3/32
5.237
5.443
0.103 in
4
A-161
-161
5-1/2
5-11/16
3/32
5.487
5.693
0.103 in
4
A-163
-163
6
6-3/16
3/32
5.987
6.193
0.103 in
2
A-164
-164
6-1/4
6-7/16
3/32
6.237
6.443
0.103 in
2
A-170
-170
7-3/4
7-15/16
3/32
7.737
7.943
0.103 in
2
A-172
-172
8-1/4
8-7/16
3/32
8.237
8.443
0.103 in
2
A-202
-202
1/4
1/2
1/8
0.234
0.512
0.139 in
50
A-203
-203
5/16
9/16
1/8
0.296
0.574
0.139 in
50
A-204
-204
3/8
5/8
1/8
0.359
0.637
0.139 in
50
A-205
-205
7/16
11/16
1/8
0.421
0.699
0.139 in
50
A-206
-206
1/2
3/4
1/8
0.484
0.762
0.139 in
50
A-208
-208
5/8
7/8
1/8
0.609
0.887
0.139 in
20
A-209
-209
11/16
15/16
1/8
0.671
0.949
0.139 in
20
A-210-ORING
-210
3/4
1
1/8
0.734
1.012
0.139 in
20
A-213
-213
15/16
1-3/16
1/8
0.921
1.199
0.139 in
20
A-215
-215
1-1/16
1-5/16
1/8
1.046
1.324
0.139 in
20
A-216
-216
1-1/8
1-3/8
1/8
1.109
1.387
0.139 in
20
A-217
-217
1-3/16
1-7/16
1/8
1.171
1.449
0.139 in
20
A-219
-219
1-5/16
1-9/16
1/8
1.296
1.574
0.139 in
20
A-220
-220
1-3/8
1-5/8
1/8
1.359
1.637
0.139 in
20
A-222
-222
1-1/2
1-3/4
1/8
1.484
1.762
0.139 in
20
A-223
-223
1-5/8
1-7/8
1/8
1.609
1.887
0.139 in
20
A-224
-224
1-3/4
2
1/8
1.734
2.012
0.139 in
20
A-225
-225
1-7/8
2-1/8
1/8
1.859
2.137
0.139 in
20
A-226
-226
2
2-1/4
1/8
1.984
2.262
0.139 in
20
A-227
-227
2-1/8
2-3/8
1/8
2.109
2.387
0.139 in
20
A-229
-229
2-3/8
2-5/8
1/8
2.359
2.637
0.139 in
20
A-230
-230
2-1/2
2-3/4
1/8
2.484
2.762
0.139 in
10
A-234-VITON
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-235
-235
3-1/8
3-3/8
1/8
3.109
3.387
0.139 in
10
A-237
-237
3-3/8
3-5/8
1/8
3.359
3.637
0.139 in
10
A-239-ORING
-239
3-5/8
3-7/8
1/8
3.609
3.887
0.139 in
10
A-240-ORING
-240
3-3/4
4
1/8
3.734
4.012
0.139 in
10
A-241-ORING
-241
3-7/8
4-1/8
1/8
3.859
4.137
0.139 in
10
A-243
-243
4-1/8
4-3/8
1/8
4.109
4.387
0.139 in
10
A-245
-245
4-3/8
4-5/8
1/8
4.359
4.637
0.139 in
4
A-246
-246
4-1/2
4-3/4
1/8
4.484
4.762
0.139 in
4
A-247
-247
4-5/8
4-7/8
1/8
4.609
4.887
0.139 in
4
A-249
-249
4-7/8
5-1/8
1/8
4.859
5.137
0.139 in
4
A-250
-250
5
5-1/4
1/8
4.984
5.262
0.139 in
4
A-253
-253
5-3/8
5-5/8
1/8
5.359
5.637
0.139 in
4
A-254
-254
5-1/2
5-3/4
1/8
5.484
5.762
0.139 in
4
A-255
-255
5-5/8
5-7/8
1/8
5.609
5.887
0.139 in
4
A-257
-257
5-7/8
6-1/8
1/8
5.859
6.137
0.139 in
2
A-258-ORING
-258
6
6-1/4
1/8
5.984
6.262
0.139 in
2
A-259
-259
6-1/4
6-1/2
1/8
6.234
6.512
0.139 in
2
A-260
-260
6-1/2
6-3/4
1/8
6.484
6.762
0.139 in
2
A-261
-261
6-3/4
7
1/8
6.734
7.012
0.139 in
2
A-262
-262
7
7-1/4
1/8
6.984
7.262
0.139 in
2
A-263
-263
7-1/4
7-1/2
1/8
7.234
7.512
0.139 in
2
A-264
-264
7-1/2
7-3/4
1/8
7.484
7.762
0.139 in
2
A-265
-265
7-3/4
8
1/8
7.734
8.012
0.139 in
2
A-266
-266
8
8-1/4
1/8
7.984
8.262
0.139 in
2
A-267
-267
8-1/4
8-1/2
1/8
8.234
8.512
0.139 in
2
A-268
-268
8-1/2
8-3/4
1/8
8.484
8.762
0.139 in
2
A-269
-269
8-3/4
9
1/8
8.734
9.012
0.139 in
2
A-274
-274
10
10-1/4
1/8
9.984
10.262
0.139 in
2
A-275
-275
10-1/2
10-3/4
1/8
10.484
10.762
0.139 in
2
A-276
-276
11
11-1/4
1/8
10.984
11.262
0.139 in
1
A-277
-277
11-1/2
11-3/4
1/8
11.484
11.762
0.139 in
1
A-278
-278
12
12-1/4
1/8
11.984
12.262
0.139 in
1
A-282
-282
16
16-1/4
1/8
15.955
16.233
0.139 in
1
A-311
-311
9/16
15/16
3/16
0.537
0.957
0.21 in
50
A-312
-312
5/8
1
3/16
0.6
1.02
0.21 in
50
A-313
-313
11/16
1-1/16
3/16
0.662
1.082
0.21 in
50
A-314
-314
3/4
1-1/8
3/16
0.725
1.145
0.21 in
50
A-315
-315
13/16
1-3/16
3/16
0.787
1.207
0.21 in
20
A-316
-316
7/8
1-1/4
3/16
0.85
1.27
0.21 in
50
A-318
-318
1
1-3/8
3/16
0.975
1.395
0.21 in
20
A-319
-319
1-1/16
1-7/16
3/16
1.037
1.457
0.21 in
50
A-320
-320
1-1/8
1-1/2
3/16
1.1
1.52
0.21 in
20
A-321
-321
1-3/16
1-9/16
3/16
1.162
1.582
0.21 in
20
A-322
-322
1-1/4
1-5/8
3/16
1.225
1.645
0.21 in
20
A-323
-323
1-5/16
1-11/16
3/16
1.287
1.707
0.21 in
10
A-324
-324
1-3/8
1-3/4
3/16
1.35
1.77
0.21 in
20
A-325
-325
1-1/2
1-7/8
3/16
1.475
1.895
0.21 in
20
A-326
-326
1-5/8
2
3/16
1.6
2.02
0.21 in
20
A-327
-327
1-3/4
2-1/8
3/16
1.725
2.145
0.21 in
20
A-328
-328
1-7/8
2-1/4
3/16
1.85
2.27
0.21 in
20
A-331
-331
2-1/4
2-5/8
3/16
2.225
2.645
0.21 in
20
A-332
-332
2-3/8
2-3/4
3/16
2.35
2.77
0.21 in
20
A-333
-333
2-1/2
2-7/8
3/16
2.475
2.895
0.21 in
20
A-335
-335
2-3/4
3-1/8
3/16
2.725
3.145
0.21 in
10
A-336
-336
2-7/8
3-1/4
3/16
2.85
3.27
0.21 in
10
A-337
-337
3
3-3/8
3/16
2.975
3.395
0.21 in
10
A-339
-339
3-1/4
3-5/8
3/16
3.225
3.645
0.21 in
10
A-340
-340
3-3/8
3-3/4
3/16
3.35
3.77
0.21 in
10
A-343
-343
3-3/4
4-1/8
3/16
3.725
4.145
0.21 in
4
A-344
-344
3-7/8
4-1/4
3/16
3.85
4.27
0.21 in
4
A-347
-347
4-1/4
4-5/8
3/16
4.225
4.645
0.21 in
4
A-348
-348
4-3/8
4-3/4
3/16
4.35
4.77
0.21 in
4
A-349
-349
4-1/2
4-7/8
3/16
4.475
4.895
0.21 in
4
A-350
-350
4-5/8
5
3/16
4.6
5.02
0.21 in
4
A-351
-351
4-3/4
5-1/8
3/16
4.725
5.145
0.21 in
4
A-352
-352
4-7/8
5-1/4
3/16
4.85
5.27
0.21 in
4
A-353
-353
5
5-3/8
3/16
4.975
5.395
0.21 in
4
A-355
-355
5-1/4
5-5/8
3/16
5.225
5.645
0.21 in
4
A-356
-356
5-3/8
5-3/4
3/16
5.35
5.77
0.21 in
4
A-358
-358
5-5/8
6
3/16
5.6
6.02
0.21 in
4
A-360
-360
5-7/8
6-1/4
3/16
5.85
6.27
0.21 in
4
A-362
-362
6-1/4
6-5/8
3/16
6.225
6.645
0.21 in
4
A-363
-363
6-1/2
6-7/8
3/16
6.475
6.895
0.21 in
4
A-364
-364
6-3/4
7-1/8
3/16
6.725
7.145
0.21 in
4
A-366
-366
7-1/4
7-5/8
3/16
7.225
7.645
0.21 in
2
A-367
-367
7-1/2
7-7/8
3/16
7.475
7.895
0.21 in
2
A-378
-378
10-1/2
10-7/8
3/16
10.475
10.895
0.21 in
1
A-426
-426
4-5/8
5-1/8
1/4
4.6
5.15
0.275 in
4
A-427
-427
4-3/4
5-1/4
1/4
4.725
5.275
0.275 in
4
A-428
-428
4-7/8
5-3/8
1/4
4.85
5.4
0.275 in
4
A-429
-429
5
5-1/2
1/4
4.975
5.525
0.275 in
4
A-432
-432
5-3/8
5-7/8
1/4
5.35
5.9
0.275 in
4
A-434
-434
5-5/8
6-1/8
1/4
5.6
6.15
0.275 in
4
A-435
-435
5-3/4
6-1/4
1/4
5.725
6.275
0.275 in
4
A-436
-436
5-7/8
6-3/8
1/4
5.85
6.4
0.275 in
4
A-437
-437
6
6-1/2
1/4
5.975
6.525
0.275 in
2
A-438
-438
6-1/4
6-3/4
1/4
6.225
6.775
0.275 in
2
A-439
-439
6-1/2
7
1/4
6.475
7.025
0.275 in
2
A-441
-441
7
7-1/2
1/4
6.975
7.525
0.275 in
2
A-443
-443
7-1/2
8
1/4
7.475
8.025
0.275 in
2
A-446
-446
8-1/2
9
1/4
8.475
9.025
0.275 in
2
A-448
-448
9-1/2
10
1/4
9.475
10.025
0.275 in
2
A-345
-345
4
4-3/8
3/16
3.975
4.395
0.21 in
4
A-113
-113
9/16
3/4
3/32
0.549
0.755
0.103 in
50
A-137
-137
2-1/16
2-1/4
3/32
2.05
2.256
0.103 in
20
A-207
-207
9/16
13/16
1/8
0.546
0.824
0.139 in
50
A-211
-211
13/16
1-1/16
1/8
0.796
1.074
0.139 in
20
A-212
-212
7/8
1-1/8
1/8
0.859
1.137
0.139 in
20
A-228
-228
2-1/4
2-1/2
1/8
2.234
2.512
0.139 in
20
A-330
-330
2-1/8
2-1/2
3/16
2.1
2.52
0.21 in
20
A-341
-341
3-1/2
3-7/8
3/16
3.475
3.895
0.21 in
4
A-354
-354
5-1/8
5-1/2
3/16
5.1
5.52
0.21 in
4
A-357
-357
5-1/2
5-7/8
3/16
5.475
5.895
0.21 in
4
A-425
-425
4-1/2
5
1/4
4.475
5.025
0.275 in
4
A-433
-433
5-1/2
6
1/4
5.475
6.025
0.275 in
4
A-440
-440
6-3/4
7-1/4
1/4
6.725
7.275
0.275 in
2
