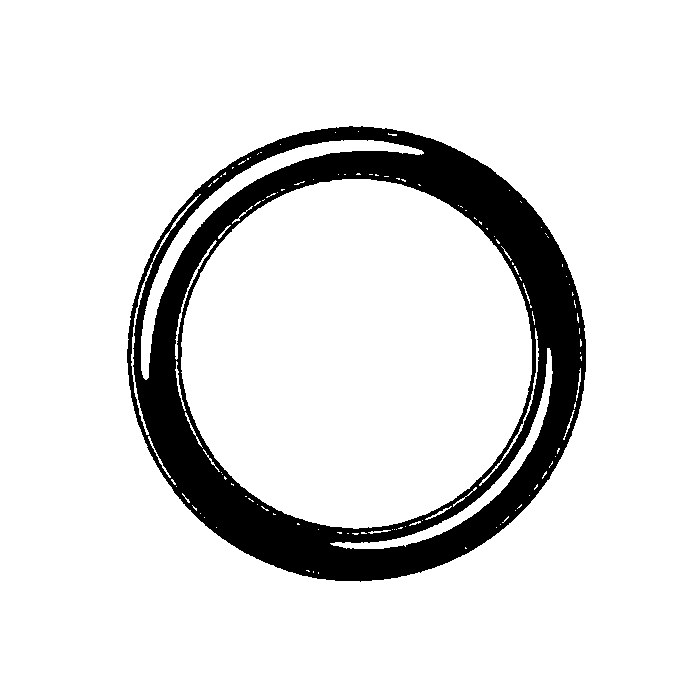

70 Durometer Buna-N O-Ring, Inch OD, 5/16 Inch ID, 0.07 Inch Width
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Supplier Part Number
568-011
Alternate Part Numbers
Alternate Part Number
2-011/N70 ,
Alternate Part Number
C1CD14 ,
Alternate Part Number
H70011 ,
Alternate Part Number
H90011 ,
Alternate Part Number
MI-08740303 ,
Alternate Part Number
MINO-00407X90303
What size is this o-ring exactly? I need to make sure it'll fit.
Question by: Wade G on Jun 10, 2025, 7:32 PM
Checking the specs, the actual outer diameter is 0.441 inches, the inner diameter is 0.301 inches, and the width is 0.07 inches. That should help you confirm if it's the right one for your needs.
Answer by: Customer Support on Jun 12, 2025, 6:01 AM
trying to replace an old -011 o-ring, are the real measurements on this one 0.301 id and 0.441 od?
Question by: Billy A on Aug 26, 2025, 2:31 PM
For dash size -011, the actual dimensions on this o-ring are 0.301 inch ID, 0.441 inch OD, and 0.07 inch width.
Answer by: Customer Support on Aug 28, 2025, 6:16 AM
does the temperature range on these hold up below freezing? got equipment running in some pretty cold conditions and need to know before i order a bunch
Question by: Diane P on Jul 27, 2025, 6:30 PM
Buna-N at 70 durometer is rated down to -40°F, so cold weather operation is well within what this material handles. On the upper end it runs to 240°F, which covers most standard hydraulic fluid temperatures without issue. For equipment cycling through freeze and thaw conditions regularly, this compound holds its shape and seal integrity across that full range.
Answer by: Customer Support on Jul 29, 2025, 1:07 PM
What's the actual inside diameter on these O-rings? Just want to make sure it's gonna fit right.
Question by: Hank R on May 2, 2025, 3:51 PM
The actual inner diameter is 0.301 inches, according to the specs.
Answer by: Customer Support on May 4, 2025, 1:19 PM
what temp range are these rated for? got some hydraulic fittings that see pretty cold winters and hot summers both
Question by: Daryl C on Jul 16, 2025, 2:30 PM
Buna-N at 70 durometer covers a range of -40°F up to 240°F, so seasonal swings between a hard freeze and a hot working environment fall well within what this material handles. The 70 durometer rating gives it a firm but flexible feel that holds up without getting brittle on the cold end or going soft when things heat up.
Answer by: Customer Support on Jul 18, 2025, 6:36 AM
got a groove that takes a -011 o-ring. is this the right one, or are those measurements different?
Question by: Keith F on Apr 27, 2025, 2:30 PM
It matches dash size -011, with a nominal 5/16 inch ID and 7/16 inch OD. If you need the tighter numbers, the actual ID is 0.301 inch and the actual OD is 0.441 inch, with 0.07 inch actual width.
Answer by: Customer Support on Apr 28, 2025, 7:23 PM
Similar Products
Model Number
Dash Size
Nominal I.D. (in)
Nominal O.D.
Nominal Width
Actual I.D.
Actual O.D.
Actual Width
Package Qty.
Price
Buy Now
A-008
-008
3/16
5/16
1/16
0.176
0.316
0.07 in
50
A-011
-011
5/16
7/16
1/16
0.301
0.441
0.07 in
50
A-013
-013
7/16
9/16
1/16
0.426
0.566
0.07 in
50
A-017
-017
11/16
13/16
1/16
0.676
0.816
0.07 in
50
A-020
-020
7/8
1
1/16
0.864
1.004
0.07 in
50
A-022
-022
1
1-1/8
1/16
0.989
1.129
0.07 in
50
A-024
-024
1-1/8
1-1/4
1/16
1.114
1.254
0.07 in
50
A-029
-029
1-1/2
1-5/8
1/16
1.489
1.629
0.07 in
20
A-037
-037
2-1/2
2-5/8
1/16
2.489
2.629
0.07 in
20
A-038
-038
2-5/8
2-3/4
1/16
2.614
2.754
0.07 in
10
A-043
-043
3-1/2
3-5/8
1/16
3.489
3.629
0.07 in
10
A-045
-045
4
4-1/8
1/16
3.989
4.129
0.07 in
10
A-112
-112
1/2
11/16
3/32
0.487
0.693
0.103 in
50
A-118
-118
7/8
1-1/16
3/32
0.862
1.068
0.103 in
50
A-121
-121
1-1/16
1-1/4
3/32
1.049
1.255
0.103 in
50
A-131-ORING
-131
1-11/16
1-7/8
3/32
1.674
1.88
0.103 in
20
A-136
-136
2
2-3/16
3/32
1.987
2.193
0.103 in
20
A-140
-140
2-1/4
2-7/16
3/32
2.237
2.443
0.103 in
20
A-146
-146
2-5/8
2-13/16
3/32
2.612
2.818
0.103 in
20
A-152
-152
3-1/4
3-7/16
3/32
3.237
3.443
0.103 in
10
A-159
-159
5
5-3/16
3/32
4.987
5.193
0.103 in
4
A-169
-169
7-1/2
7-11/16
3/32
7.487
7.693
0.103 in
2
A-214
-214
1
1-1/4
1/8
0.984
1.262
0.139 in
20
A-218
-218
1-1/4
1-1/2
1/8
1.234
1.512
0.139 in
20
A-221
-221
1-7/16
1-11/16
1/8
1.421
1.699
0.139 in
20
A-231
-231
2-5/8
2-7/8
1/8
2.609
2.887
0.139 in
10
A-232
-232
2-3/4
3
1/8
2.734
3.012
0.139 in
10
A-233
-233
2-7/8
3-1/8
1/8
2.859
3.137
0.139 in
10
A-234
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-236
-236
3-1/4
3-1/2
1/8
3.234
3.512
0.139 in
10
A-238-ORING
-238
3-1/2
3-3/4
1/8
3.484
3.762
0.139 in
10
A-242-ORING
-242
4
4-1/4
1/8
3.984
4.262
0.139 in
10
A-244
-244
4-1/4
4-1/2
1/8
4.234
4.512
0.139 in
10
A-248
-248
4-3/4
5
1/8
4.734
5.012
0.139 in
4
A-251
-251
5-1/8
5-3/8
1/8
5.109
5.387
0.139 in
4
A-252
-252
5-1/4
5-1/2
1/8
5.234
5.512
0.139 in
4
A-256
-256
5-3/4
6
1/8
5.734
6.012
0.139 in
4
A-329
-329
2
2-3/8
3/16
1.975
2.395
0.21 in
20
A-334
-334
2-5/8
3
3/16
2.6
3.02
0.21 in
20
A-338
-338
3-1/8
3-1/2
3/16
3.1
3.52
0.21 in
10
A-342
-342
3-5/8
4
3/16
3.6
4.02
0.21 in
4
A-346
-346
4-1/8
4-1/2
3/16
4.1
4.52
0.21 in
4
568-450
-450
10-1/2
11
1/4
10.475
11.025
0.275 in
1
A-003
-003
1/16
3/16
1/16
0.056
0.176
0.06 in
50
A-005
-005
3/32
7/32
1/16
0.101
0.241
0.07 in
50
A-006
-006
1/8
1/4
1/16
0.114
0.254
0.07 in
50
A-007
-007
5/32
9/32
1/16
0.145
0.285
0.07 in
50
A-009
-009
7/32
11/32
1/16
0.208
0.348
0.07 in
50
A-010
-010
1/4
3/8
1/16
0.239
0.379
0.07 in
50
A-012
-012
3/8
1/2
1/16
0.364
0.504
0.07 in
50
A-014
-014
1/2
5/8
1/16
0.489
0.629
0.07 in
50
A-015
-015
9/16
11/16
1/16
0.551
0.691
0.07 in
50
A-016
-016
5/8
3/4
1/16
0.614
0.754
0.07 in
50
A-019
-019
13/16
15/16
1/16
0.801
0.941
0.07 in
50
A-021
-021
15/16
1-1/16
1/16
0.926
1.066
0.07 in
50
A-023
-023
1-1/16
1-3/16
1/16
1.051
1.191
0.07 in
50
A-025
-025
1-3/16
1-5/16
1/16
1.176
1.316
0.07 in
50
A-026
-026
1-1/4
1-3/8
1/16
1.239
1.379
0.07 in
50
A-027
-027
1-5/16
1-7/16
1/16
1.301
1.441
0.07 in
50
A-028
-028
1-3/8
1-1/2
1/16
1.364
1.504
0.07 in
20
A-030
-030
1-5/8
1-3/4
1/16
1.614
1.754
0.07 in
20
A-031
-031
1-3/4
1-7/8
1/16
1.739
1.879
0.07 in
20
A-032
-032
1-7/8
2
1/16
1.864
2.004
0.07 in
20
A-033
-033
2
2-1/8
1/16
1.989
2.129
0.07 in
20
A-034
-034
2-1/8
2-1/4
1/16
2.114
2.254
0.07 in
20
A-035
-035
2-1/4
2-3/8
1/16
2.239
2.379
0.07 in
20
A-036
-036
2-3/8
2-1/2
1/16
2.364
2.504
0.07 in
20
A-039
-039
2-3/4
2-7/8
1/16
2.739
2.879
0.07 in
10
A-040
-040
2-7/8
3
1/16
2.864
3.004
0.07 in
10
A-041
-041
3
3-1/8
1/16
2.989
3.129
0.07 in
10
A-042
-042
3-1/4
3-3/8
1/16
3.239
3.379
0.07 in
10
A-044
-044
3-3/4
3-7/8
1/16
3.739
3.879
0.07 in
10
A-048
-048
4-3/4
4-7/8
1/16
4.739
4.879
0.07 in
4
A-049
-049
5
5-1/8
1/16
4.989
5.129
0.07 in
4
A-106
-106
3/16
3/8
3/32
0.174
0.38
0.103 in
50
A-107
-107
7/32
13/32
3/32
0.206
0.412
0.103 in
50
A-108
-108
1/4
7/16
3/32
0.237
0.443
0.103 in
50
A-109
-109
5/16
1/2
3/32
0.299
0.505
0.103 in
50
A-110-ORING
-110
3/8
9/16
3/32
0.362
0.568
0.103 in
50
A-111
-111
7/16
5/8
3/32
0.424
0.63
0.103 in
50
A-114
-114
5/8
13/16
3/32
0.612
0.818
0.103 in
50
A-115
-115
11/16
7/8
3/32
0.674
0.88
0.103 in
50
A-116
-116
3/4
15/16
3/32
0.737
0.943
0.103 in
50
A-117
-117
13/16
1
3/32
0.799
1.005
0.103 in
50
A-119
-119
15/16
1-1/8
3/32
0.924
1.13
0.103 in
50
A-120
-120
1
1-3/16
3/32
0.987
1.193
0.103 in
50
A-122
-122
1-1/8
1-5/16
3/32
1.112
1.318
0.103 in
20
A-123
-123
1-3/16
1-3/8
3/32
1.174
1.38
0.103 in
20
A-124
-124
1-1/4
1-7/16
3/32
1.237
1.443
0.103 in
20
A-125
-125
1-5/16
1-1/2
3/32
1.299
1.505
0.103 in
20
A-126
-126
1-3/8
1-9/16
3/32
1.362
1.568
0.103 in
20
A-127
-127
1-7/16
1-5/8
3/32
1.424
1.63
0.103 in
20
A-128
-128
1-1/2
1-11/16
3/32
1.487
1.693
0.103 in
20
A-129-ORING
-129
1-9/16
1-3/4
3/32
1.549
1.755
0.103 in
20
A-130
-130
1-5/8
1-13/16
3/32
1.612
1.818
0.103 in
20
A-132-ORING
-132
1-3/4
1-15/16
3/32
1.737
1.943
0.103 in
20
A-133
-133
1-13/16
2
3/32
1.799
2.005
0.103 in
20
A-134
-134
1-7/8
2-1/16
3/32
1.862
2.068
0.103 in
20
A-135
-135
1-15/16
2-1/8
3/32
1.925
2.131
0.103 in
20
A-138
-138
2-1/8
2-5/16
3/32
2.112
2.318
0.103 in
20
A-139
-139
2-3/16
2-3/8
3/32
2.175
2.381
0.103 in
20
A-141-ORING
-141
2-5/16
2-1/2
3/32
2.3
2.506
0.103 in
20
A-142
-142
2-3/8
2-9/16
3/32
2.362
2.568
0.103 in
20
A-143
-143
2-7/16
2-5/8
3/32
2.425
2.631
0.103 in
20
A-144
-144
2-1/2
2-11/16
3/32
2.487
2.693
0.103 in
20
A-145
-145
2-9/16
2-3/4
3/32
2.55
2.756
0.103 in
20
A-147
-147
2-11/16
2-7/8
3/32
2.675
2.881
0.103 in
20
A-148
-148
2-3/4
2-15/16
3/32
2.737
2.943
0.103 in
10
A-149
-149
2-13/16
3
3/32
2.8
3.006
0.103 in
10
A-150
-150
2-7/8
3-1/16
3/32
2.862
3.068
0.103 in
10
A-151
-151
3
3-3/16
3/32
2.987
3.193
0.103 in
10
A-153
-153
3-1/2
3-11/16
3/32
3.487
3.693
0.103 in
10
A-154
-154
3-3/4
3-15/16
3/32
3.737
3.943
0.103 in
10
A-155
-155
4
4-3/16
3/32
3.987
4.193
0.103 in
10
A-156
-156
4-1/4
4-7/16
3/32
4.237
4.443
0.103 in
10
A-157
-157
4-1/2
4-11/16
3/32
4.487
4.693
0.103 in
4
A-158
-158
4-3/4
4-15/16
3/32
4.737
4.943
0.103 in
4
A-160
-160
5-1/4
5-7/16
3/32
5.237
5.443
0.103 in
4
A-161
-161
5-1/2
5-11/16
3/32
5.487
5.693
0.103 in
4
A-163
-163
6
6-3/16
3/32
5.987
6.193
0.103 in
2
A-164
-164
6-1/4
6-7/16
3/32
6.237
6.443
0.103 in
2
A-170
-170
7-3/4
7-15/16
3/32
7.737
7.943
0.103 in
2
A-172
-172
8-1/4
8-7/16
3/32
8.237
8.443
0.103 in
2
A-202
-202
1/4
1/2
1/8
0.234
0.512
0.139 in
50
A-203
-203
5/16
9/16
1/8
0.296
0.574
0.139 in
50
A-204
-204
3/8
5/8
1/8
0.359
0.637
0.139 in
50
A-205
-205
7/16
11/16
1/8
0.421
0.699
0.139 in
50
A-206
-206
1/2
3/4
1/8
0.484
0.762
0.139 in
50
A-208
-208
5/8
7/8
1/8
0.609
0.887
0.139 in
20
A-209
-209
11/16
15/16
1/8
0.671
0.949
0.139 in
20
A-210-ORING
-210
3/4
1
1/8
0.734
1.012
0.139 in
20
A-213
-213
15/16
1-3/16
1/8
0.921
1.199
0.139 in
20
A-215
-215
1-1/16
1-5/16
1/8
1.046
1.324
0.139 in
20
A-216
-216
1-1/8
1-3/8
1/8
1.109
1.387
0.139 in
20
A-217
-217
1-3/16
1-7/16
1/8
1.171
1.449
0.139 in
20
A-219
-219
1-5/16
1-9/16
1/8
1.296
1.574
0.139 in
20
A-220
-220
1-3/8
1-5/8
1/8
1.359
1.637
0.139 in
20
A-222
-222
1-1/2
1-3/4
1/8
1.484
1.762
0.139 in
20
A-223
-223
1-5/8
1-7/8
1/8
1.609
1.887
0.139 in
20
A-224
-224
1-3/4
2
1/8
1.734
2.012
0.139 in
20
A-225
-225
1-7/8
2-1/8
1/8
1.859
2.137
0.139 in
20
A-226
-226
2
2-1/4
1/8
1.984
2.262
0.139 in
20
A-227
-227
2-1/8
2-3/8
1/8
2.109
2.387
0.139 in
20
A-229
-229
2-3/8
2-5/8
1/8
2.359
2.637
0.139 in
20
A-230
-230
2-1/2
2-3/4
1/8
2.484
2.762
0.139 in
10
A-234-VITON
-234
3
3-1/4
1/8
2.984
3.262
0.139 in
10
A-235
-235
3-1/8
3-3/8
1/8
3.109
3.387
0.139 in
10
A-237
-237
3-3/8
3-5/8
1/8
3.359
3.637
0.139 in
10
A-239-ORING
-239
3-5/8
3-7/8
1/8
3.609
3.887
0.139 in
10
A-240-ORING
-240
3-3/4
4
1/8
3.734
4.012
0.139 in
10
A-241-ORING
-241
3-7/8
4-1/8
1/8
3.859
4.137
0.139 in
10
A-243
-243
4-1/8
4-3/8
1/8
4.109
4.387
0.139 in
10
A-245
-245
4-3/8
4-5/8
1/8
4.359
4.637
0.139 in
4
A-246
-246
4-1/2
4-3/4
1/8
4.484
4.762
0.139 in
4
A-247
-247
4-5/8
4-7/8
1/8
4.609
4.887
0.139 in
4
A-249
-249
4-7/8
5-1/8
1/8
4.859
5.137
0.139 in
4
A-250
-250
5
5-1/4
1/8
4.984
5.262
0.139 in
4
A-253
-253
5-3/8
5-5/8
1/8
5.359
5.637
0.139 in
4
A-254
-254
5-1/2
5-3/4
1/8
5.484
5.762
0.139 in
4
A-255
-255
5-5/8
5-7/8
1/8
5.609
5.887
0.139 in
4
A-257
-257
5-7/8
6-1/8
1/8
5.859
6.137
0.139 in
2
A-258-ORING
-258
6
6-1/4
1/8
5.984
6.262
0.139 in
2
A-259
-259
6-1/4
6-1/2
1/8
6.234
6.512
0.139 in
2
A-260
-260
6-1/2
6-3/4
1/8
6.484
6.762
0.139 in
2
A-261
-261
6-3/4
7
1/8
6.734
7.012
0.139 in
2
A-262
-262
7
7-1/4
1/8
6.984
7.262
0.139 in
2
A-263
-263
7-1/4
7-1/2
1/8
7.234
7.512
0.139 in
2
A-264
-264
7-1/2
7-3/4
1/8
7.484
7.762
0.139 in
2
A-265
-265
7-3/4
8
1/8
7.734
8.012
0.139 in
2
A-266
-266
8
8-1/4
1/8
7.984
8.262
0.139 in
2
A-267
-267
8-1/4
8-1/2
1/8
8.234
8.512
0.139 in
2
A-268
-268
8-1/2
8-3/4
1/8
8.484
8.762
0.139 in
2
A-269
-269
8-3/4
9
1/8
8.734
9.012
0.139 in
2
A-274
-274
10
10-1/4
1/8
9.984
10.262
0.139 in
2
A-275
-275
10-1/2
10-3/4
1/8
10.484
10.762
0.139 in
2
A-276
-276
11
11-1/4
1/8
10.984
11.262
0.139 in
1
A-277
-277
11-1/2
11-3/4
1/8
11.484
11.762
0.139 in
1
A-278
-278
12
12-1/4
1/8
11.984
12.262
0.139 in
1
A-282
-282
16
16-1/4
1/8
15.955
16.233
0.139 in
1
A-311
-311
9/16
15/16
3/16
0.537
0.957
0.21 in
50
A-312
-312
5/8
1
3/16
0.6
1.02
0.21 in
50
A-313
-313
11/16
1-1/16
3/16
0.662
1.082
0.21 in
50
A-314
-314
3/4
1-1/8
3/16
0.725
1.145
0.21 in
50
A-315
-315
13/16
1-3/16
3/16
0.787
1.207
0.21 in
20
A-316
-316
7/8
1-1/4
3/16
0.85
1.27
0.21 in
50
A-318
-318
1
1-3/8
3/16
0.975
1.395
0.21 in
20
A-319
-319
1-1/16
1-7/16
3/16
1.037
1.457
0.21 in
50
A-320
-320
1-1/8
1-1/2
3/16
1.1
1.52
0.21 in
20
A-321
-321
1-3/16
1-9/16
3/16
1.162
1.582
0.21 in
20
A-322
-322
1-1/4
1-5/8
3/16
1.225
1.645
0.21 in
20
A-323
-323
1-5/16
1-11/16
3/16
1.287
1.707
0.21 in
10
A-324
-324
1-3/8
1-3/4
3/16
1.35
1.77
0.21 in
20
A-325
-325
1-1/2
1-7/8
3/16
1.475
1.895
0.21 in
20
A-326
-326
1-5/8
2
3/16
1.6
2.02
0.21 in
20
A-327
-327
1-3/4
2-1/8
3/16
1.725
2.145
0.21 in
20
A-328
-328
1-7/8
2-1/4
3/16
1.85
2.27
0.21 in
20
A-331
-331
2-1/4
2-5/8
3/16
2.225
2.645
0.21 in
20
A-332
-332
2-3/8
2-3/4
3/16
2.35
2.77
0.21 in
20
A-333
-333
2-1/2
2-7/8
3/16
2.475
2.895
0.21 in
20
A-335
-335
2-3/4
3-1/8
3/16
2.725
3.145
0.21 in
10
A-336
-336
2-7/8
3-1/4
3/16
2.85
3.27
0.21 in
10
A-337
-337
3
3-3/8
3/16
2.975
3.395
0.21 in
10
A-339
-339
3-1/4
3-5/8
3/16
3.225
3.645
0.21 in
10
A-340
-340
3-3/8
3-3/4
3/16
3.35
3.77
0.21 in
10
A-343
-343
3-3/4
4-1/8
3/16
3.725
4.145
0.21 in
4
A-344
-344
3-7/8
4-1/4
3/16
3.85
4.27
0.21 in
4
A-347
-347
4-1/4
4-5/8
3/16
4.225
4.645
0.21 in
4
A-348
-348
4-3/8
4-3/4
3/16
4.35
4.77
0.21 in
4
A-349
-349
4-1/2
4-7/8
3/16
4.475
4.895
0.21 in
4
A-350
-350
4-5/8
5
3/16
4.6
5.02
0.21 in
4
A-351
-351
4-3/4
5-1/8
3/16
4.725
5.145
0.21 in
4
A-352
-352
4-7/8
5-1/4
3/16
4.85
5.27
0.21 in
4
A-353
-353
5
5-3/8
3/16
4.975
5.395
0.21 in
4
A-355
-355
5-1/4
5-5/8
3/16
5.225
5.645
0.21 in
4
A-356
-356
5-3/8
5-3/4
3/16
5.35
5.77
0.21 in
4
A-358
-358
5-5/8
6
3/16
5.6
6.02
0.21 in
4
A-360
-360
5-7/8
6-1/4
3/16
5.85
6.27
0.21 in
4
A-362
-362
6-1/4
6-5/8
3/16
6.225
6.645
0.21 in
4
A-363
-363
6-1/2
6-7/8
3/16
6.475
6.895
0.21 in
4
A-364
-364
6-3/4
7-1/8
3/16
6.725
7.145
0.21 in
4
A-366
-366
7-1/4
7-5/8
3/16
7.225
7.645
0.21 in
2
A-367
-367
7-1/2
7-7/8
3/16
7.475
7.895
0.21 in
2
A-378
-378
10-1/2
10-7/8
3/16
10.475
10.895
0.21 in
1
A-426
-426
4-5/8
5-1/8
1/4
4.6
5.15
0.275 in
4
A-427
-427
4-3/4
5-1/4
1/4
4.725
5.275
0.275 in
4
A-428
-428
4-7/8
5-3/8
1/4
4.85
5.4
0.275 in
4
A-429
-429
5
5-1/2
1/4
4.975
5.525
0.275 in
4
A-432
-432
5-3/8
5-7/8
1/4
5.35
5.9
0.275 in
4
A-434
-434
5-5/8
6-1/8
1/4
5.6
6.15
0.275 in
4
A-435
-435
5-3/4
6-1/4
1/4
5.725
6.275
0.275 in
4
A-436
-436
5-7/8
6-3/8
1/4
5.85
6.4
0.275 in
4
A-437
-437
6
6-1/2
1/4
5.975
6.525
0.275 in
2
A-438
-438
6-1/4
6-3/4
1/4
6.225
6.775
0.275 in
2
A-439
-439
6-1/2
7
1/4
6.475
7.025
0.275 in
2
A-441
-441
7
7-1/2
1/4
6.975
7.525
0.275 in
2
A-443
-443
7-1/2
8
1/4
7.475
8.025
0.275 in
2
A-446
-446
8-1/2
9
1/4
8.475
9.025
0.275 in
2
A-448
-448
9-1/2
10
1/4
9.475
10.025
0.275 in
2
A-345
-345
4
4-3/8
3/16
3.975
4.395
0.21 in
4
A-113
-113
9/16
3/4
3/32
0.549
0.755
0.103 in
50
A-137
-137
2-1/16
2-1/4
3/32
2.05
2.256
0.103 in
20
A-207
-207
9/16
13/16
1/8
0.546
0.824
0.139 in
50
A-211
-211
13/16
1-1/16
1/8
0.796
1.074
0.139 in
20
A-212
-212
7/8
1-1/8
1/8
0.859
1.137
0.139 in
20
A-228
-228
2-1/4
2-1/2
1/8
2.234
2.512
0.139 in
20
A-330
-330
2-1/8
2-1/2
3/16
2.1
2.52
0.21 in
20
A-341
-341
3-1/2
3-7/8
3/16
3.475
3.895
0.21 in
4
A-354
-354
5-1/8
5-1/2
3/16
5.1
5.52
0.21 in
4
A-357
-357
5-1/2
5-7/8
3/16
5.475
5.895
0.21 in
4
A-425
-425
4-1/2
5
1/4
4.475
5.025
0.275 in
4
A-433
-433
5-1/2
6
1/4
5.475
6.025
0.275 in
4
A-440
-440
6-3/4
7-1/4
1/4
6.725
7.275
0.275 in
2
