Alternate Part NumberMI-07223291, Alternate Part Number MINO-00925F20638
Certifications
SAE J1176
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
got a -20 hose on the bench. is this the right end for a 1-1/4 male pipe thread setup?
Question by: Diane Y on Oct 12, 2025, 6:39 AM

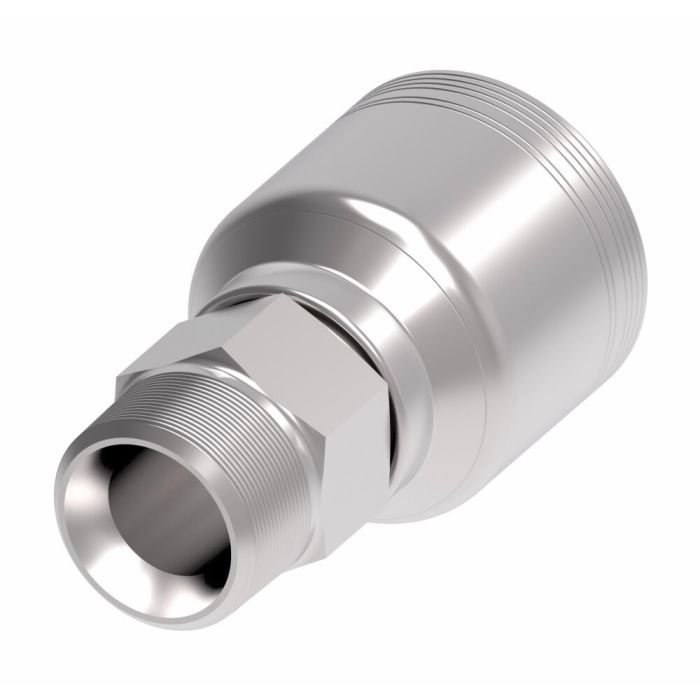

Match it up by the two key callouts: it is a male NPTF pipe end on one side and it is built for a -20 hose dash size on the other side (line/hose/tube end) as a 6S Series crimp fitting.
Answer by: Customer Support on Oct 13, 2025, 12:24 PM
Got a 1-1/4" male pipe thread port on a manifold block and need to know if this fitting'll connect up to a #20 hose without adapters. That the right combo here?
Question by: Donna S on Mar 27, 2026, 6:45 AM
For a 1-1/4" NPTF male pipe thread on one end and a -20 hose connection on the other, yeah, that's exactly what this fitting covers. The NPTF thread includes a built-in thread sealant, so you're not piecing together extra tape or compound to get a leak-free seal at the pipe end. Crimp the hose side using the 6S series crimp spec and you've got a direct, one-piece assembly with no in-between adapters needed.
Answer by: Customer Support on Mar 28, 2026, 4:36 PM
