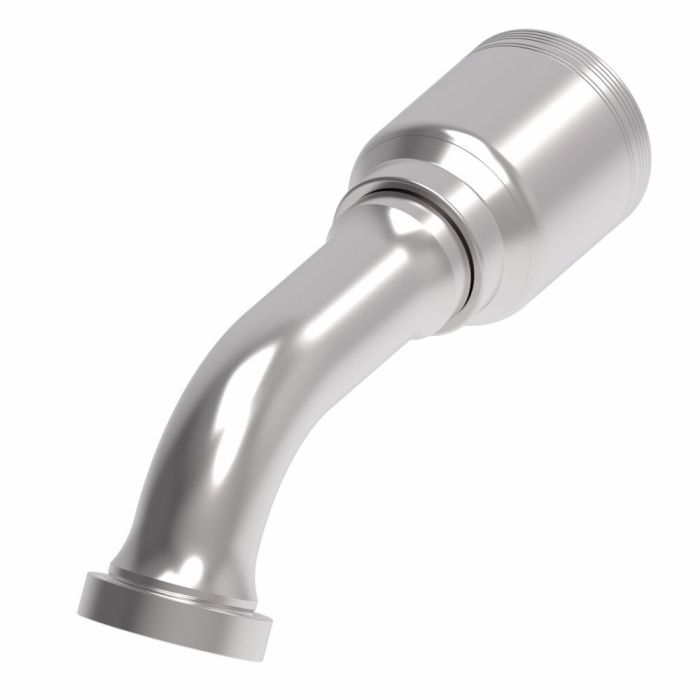

60° Cat Flange 6S24CTG24

Specifications

Certifications SAE J1176	Drop Dimension 2.62	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.96	Sub Brand None	Supplier Part Number 6S24CTG24	Product Weight 5.11 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up to high pressure in a hydraulic system on farm equipment, or do I need something heavier duty?

Question by: Dale T on Mar 23, 2026, 5:44 PM

Dura-Kote plating gives this Eaton Aeroquip fitting superior corrosion resistance, and it's designed for performance and maximum uptime in demanding hydraulic applications. Its system engineering also aims to extend hose assembly life, so it should be well-suited to your needs.

Answer by: Customer Support on Mar 24, 2026, 8:06 PM

does this fitting work with 6-wire spiral hose on a -24 dash size setup, or is that gonna be the wrong series altogether?

Question by: Jerry W on Feb 16, 2026, 8:04 AM

Built specifically for the Eaton Aeroquip 6S series, this fitting is matched to -24 dash size hose. As long as you're running 6-wire spiral hose in that size, you're in the right family. The 6S series is a crimp-style system, so pairing it with the correct crimp specs for your hose OD is what makes the assembly hold.

Answer by: Customer Support on Feb 17, 2026, 3:03 PM
