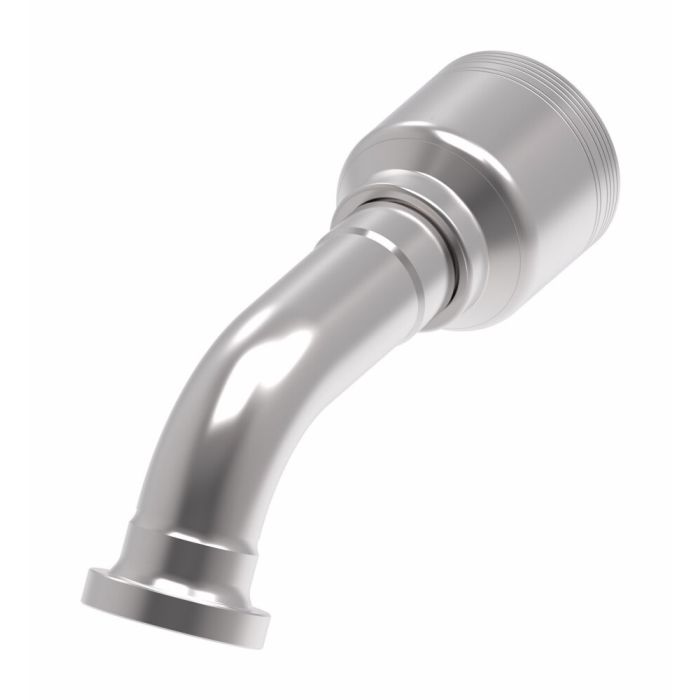

Split Flange Code 62 60°

Certifications SAE J1176	Drop Dimension 2.20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -20	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.61	Sub Brand None	Supplier Part Number 6S20FHG20	Product Weight 1.90 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this fitting handle hydraulic fluid, or is it for something else?

Question by: Melvin W on May 15, 2025, 10:07 AM

It's designed for hydraulic applications, as it's an Eaton Aeroquip 6-wire spiral fitting.

Answer by: Customer Support on May 16, 2025, 12:07 PM

what's the flange code on this fitting, 61 or 62? trying to make sure I match up with the rest of my system before I order

Question by: Troy J on Jun 9, 2025, 7:26 PM

Code 62 is what you're working with here. That's the higher-pressure flange standard, so if your ports and mating flanges are already spec'd for Code 62, this one will line up right. Just double-check your existing hardware before pulling the trigger.

Answer by: Customer Support on Jun 11, 2025, 9:00 AM
