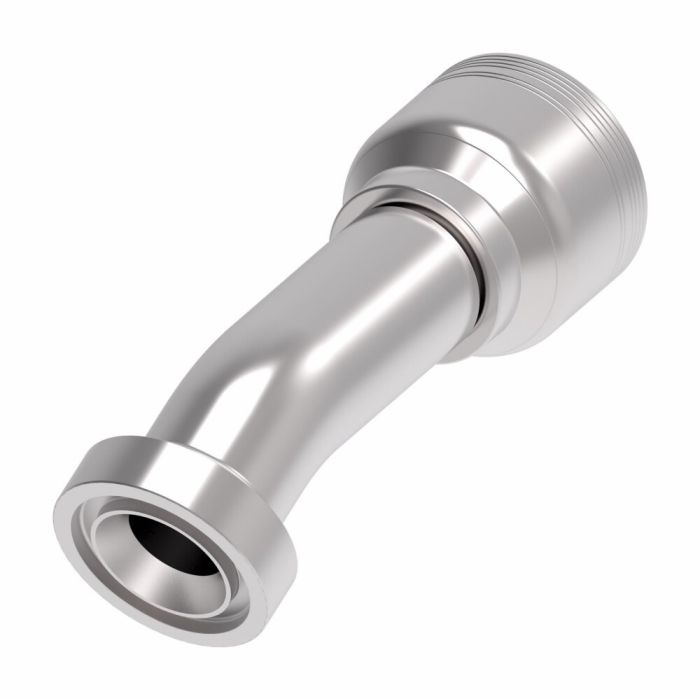

Cat Flange 22.5°

Certifications SAE J1176	Drop Dimension 0.70	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.34	Sub Brand None	Supplier Part Number 6S20CTD16	Product Weight 2.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Just wanna make sure, this thing'll fit a standard hose assembly, right?

Question by: Patty A on Feb 4, 2026, 6:53 AM

This Eaton Aeroquip fitting assembly is indeed designed for standard hose assemblies, specifically those using a -16 hose dash size.

Answer by: Customer Support on Feb 5, 2026, 9:34 PM

does this fitting work with -16 hose on a 6S crimp system, or do I need something different for that angle?

Question by: Duane M on Nov 28, 2025, 6:16 AM

For 6S series crimp assemblies using -16 hose, this is the right fit. The 22.5 degree CAT flange elbow is built specifically for that dash size and that series, so you're not mixing and matching anything. The flanged end connects on one side, hose on the other, and the angle helps where a straight fitting just won't route clean.

Answer by: Customer Support on Nov 29, 2025, 12:44 PM
