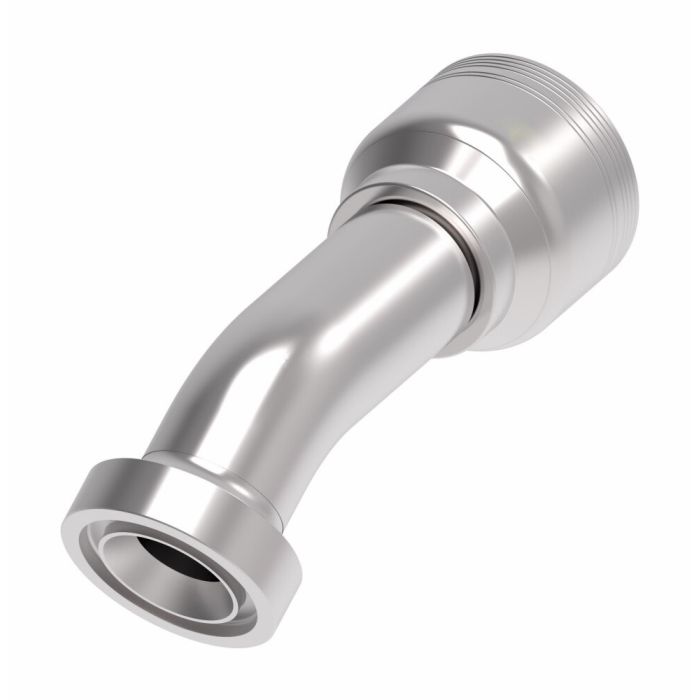

Cat Flange 30°

Certifications SAE J1176	Drop Dimension 0.85	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Type 1 Flanged	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -16	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.34	Sub Brand None	Supplier Part Number 6S16CTF16	Product Weight 1.77 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of plating does this flange fitting have?

Question by: Randy H on Nov 12, 2025, 12:19 PM

Dura-Kote plating gives it superior corrosion resistance, which should help it last.

Answer by: Customer Support on Nov 14, 2025, 6:04 AM

does this fitting work with 6-wire spiral hose on a -16 dash size setup, or is that not what its built for?

Question by: Cheryl B on Sep 6, 2025, 8:23 AM

Built specifically for 6-wire spiral hose assemblies in the -16 dash size, this is part of the Eaton Aeroquip 6S series crimp fitting lineup. The flanged end uses a 30-degree elbow configuration, so it works well in tight routing situations where a straight fitting just won't clear. Carbon steel construction keeps it solid for demanding hydraulic work.

Answer by: Customer Support on Sep 8, 2025, 7:33 AM
