Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3|REACH|RoHS Compliant
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.56
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
4.8 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|

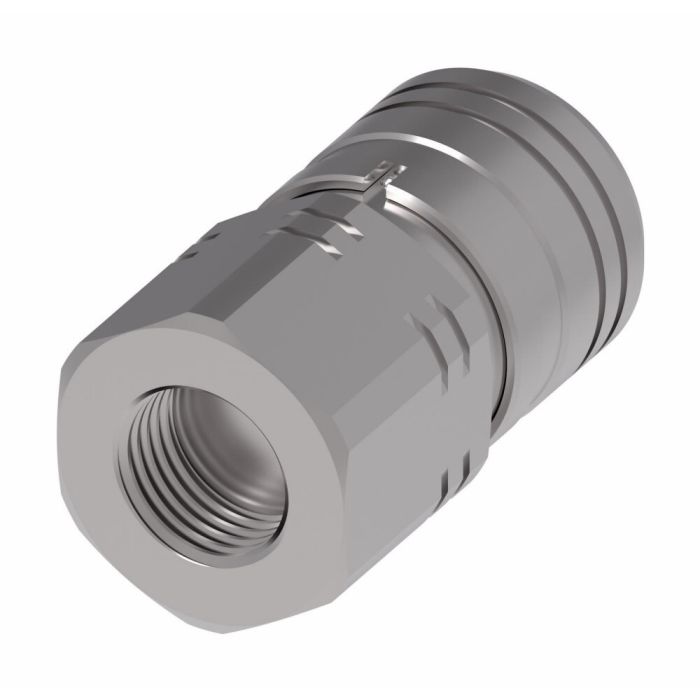

Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.06
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen
|
Supplier Part Number
6FFS56UN
|
Torque Rating
46.1 lb/ft
|
Torque Rating
46.1 lb/ft
|
Valve Type
2 way
|
Product Weight
0.56 lbs
|
Catalog 1
