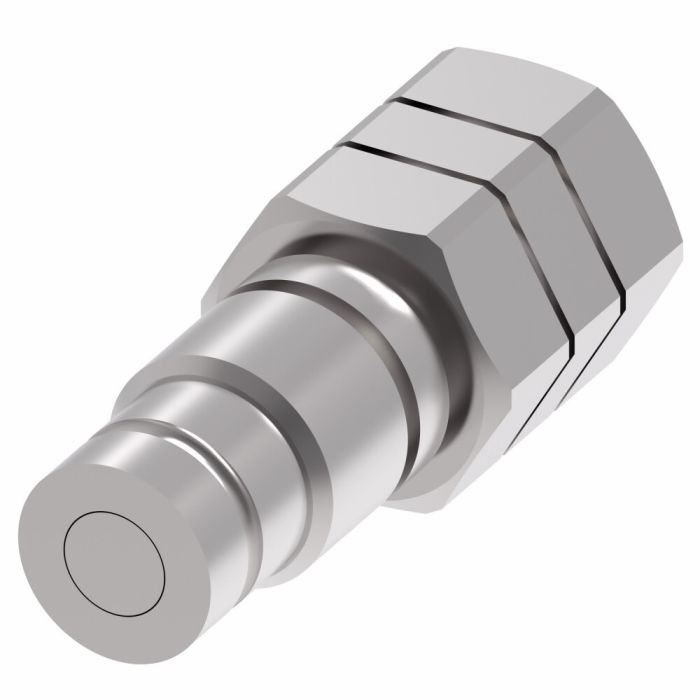

Danfoss / Eaton CPLGS FF Male Half 6FFP25

Specifications

Application Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size	Certifications ISO 16028	Compliances European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3\|RoHS Compliant\|REACH	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13555	End Size 2 0.25	End Type 1 Push to Connect	End Type 2 NPT	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 4.8 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Flat Face	Item Type Male Half	Language English	Minimum Working Temperature -13	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 0.94	Safety locking Mechanism Sleeve lock	Seal Material NBR+AU	Sub Brand Hansen	Supplier Part Number 6FFP25	Torque Rating 46.1 lb/ft	Torque Rating 46.1 lb/ft	Valve Type 2 way	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

does this plug work with HTMA couplings or is it only for Hansen setups?

Question by: Denise H on Jul 16, 2025, 9:09 AM

At the 3/8" size, this coupling is interchangeable with HTMA couplings, so you're not locked into one system. It follows the ISO 16028 flat face standard and actually exceeds the pressure ratings that spec calls for. The female end connects via NPT and the male push-to-connect side locks in place with a sleeve lock mechanism. Carbon steel body with NBR+AU seals, so it holds up well across a range of hydraulic fluid types.

Answer by: Customer Support on Jul 18, 2025, 6:50 AM
