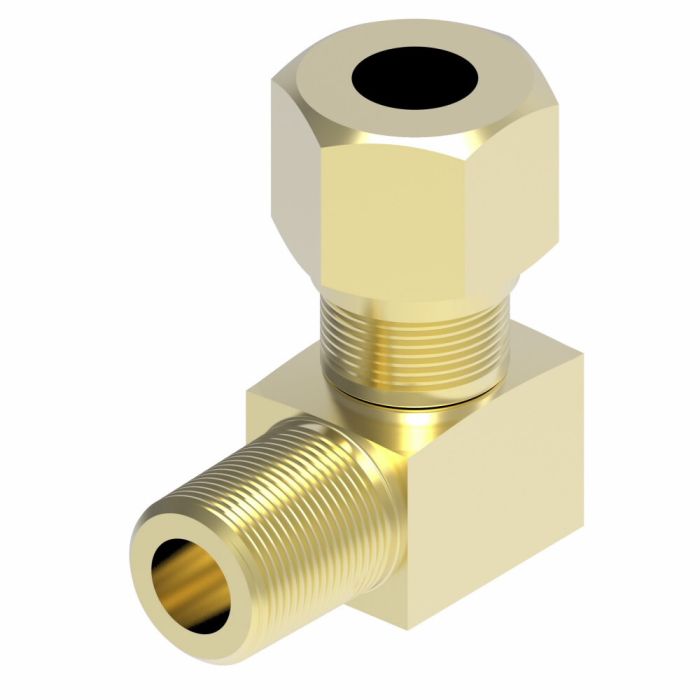

90° Male Elbow

Application
Instrumentation, hydraulic
and pneumatic systems.
Drop Dimension
1.12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.38
End Size 2
0.38
End Type 1
NPTF
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
Hex Size 2
0.81
ICC
Elbow Adapters
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
Language
English
Minimum Working Temperature
-65
Net Pack Quantity Units
EA
NMFC
60
Product Material
Brass
Product Width
0.81
Sub Brand
None
Supplier Part Number
691X8
Product Weight
0.13 lbs

Product Questions & Answers

Will this fitting work for hooking up instrumentation lines?
Question by: Ray W on Apr 9, 2025, 12:45 PM
Yes, this Eaton Aeroquip adapter is applicable to instrumentation, hydraulic, and pneumatic systems.
Answer by: Customer Support on Apr 11, 2025, 7:33 AM
what's the thread type on the male end of this fitting, is it NPTF or just NPT?
Question by: Terry W on Jun 6, 2025, 7:53 PM
The male end is NPTF, which is the dry-seal version of the standard pipe thread. NPTF threads are cut to tighter tolerances than regular NPT, so they form a mechanical seal at the threads themselves without relying solely on tape or sealant. That matters in hydraulic and pneumatic lines where even a small seep can cause problems over time.
Answer by: Customer Support on Jun 8, 2025, 6:47 AM
