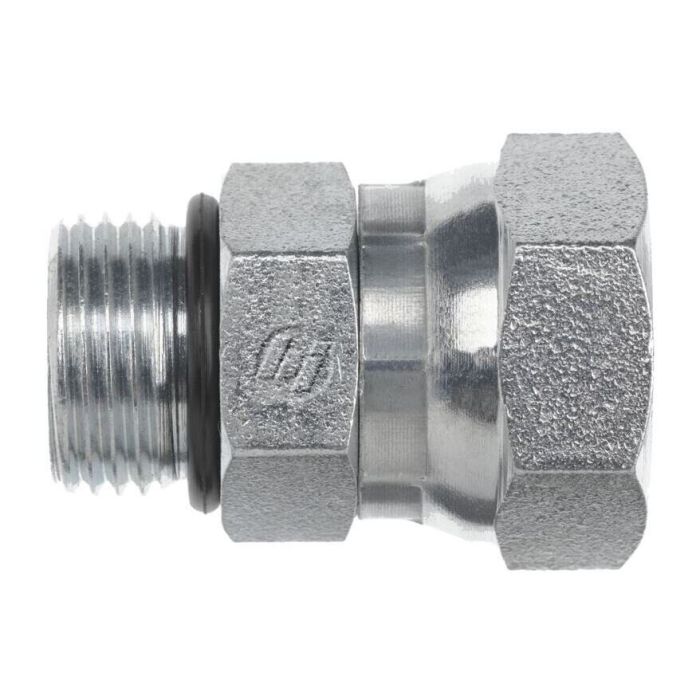

10MORB-08FPS STRAIGHT 6900-10-08-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6900-10-08-O	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up if I'm running hydraulic fluid through it all day long?

Question by: Frank S on Mar 21, 2026, 5:43 PM

Designed for demanding industrial use, this adapter uses high-quality steel, so it should provide reliable performance even with continuous operation.

Answer by: Customer Support on Mar 23, 2026, 6:08 AM

got a hose with a 1/2-14 female npsm swivel, will this adapter mate up to it?

Question by: Kent M on Mar 11, 2026, 9:24 PM

For the swivel end, it’s a female NPSM swivel with 1/2-14 threads per SAE J476, so it’s made to connect to a matching 1/2-14 NPSM male. The other side is a 7/8-14 male O-Ring Boss per SAE J514, and it seals with an NBR O-ring.

Answer by: Customer Support on Mar 13, 2026, 11:49 AM

thread on the female end is NPSM swivel, does that mean it'll spin free before you tighten it down or does it need to be held in place during install?

Question by: Merle E on Apr 30, 2025, 8:24 PM

NPSM swivel threads are built to rotate freely, so yes, that end will spin before you commit to a final position. That's actually the point. It lets you get everything lined up without twisting the hose or line attached to it, then snug it down once you've got the angle right. The male O-Ring Boss side is what does the sealing work, so make sure that end seats properly against the port face before calling it good.

Answer by: Customer Support on May 2, 2025, 10:03 AM
