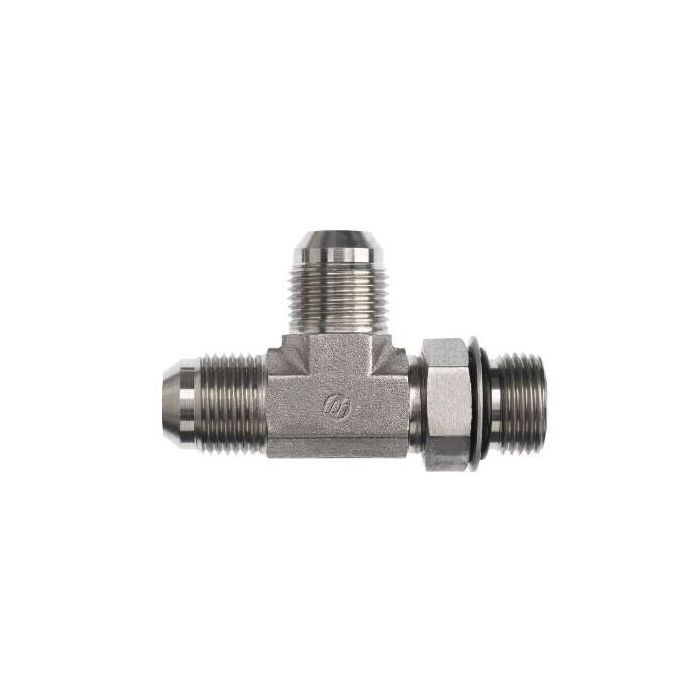

06MJ-06MAORB-06MJ RUN TEE 6804-06-06-06-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6804-06-06-06-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap in a run tee i already got, are all three ends on this one 9/16-18?

Question by: Lynn S on May 19, 2025, 11:04 AM

All three ports are 9/16-18 thread size and built to SAE J514. Two ends are Male JIC SAE 37 degree flare, and the third end is a Male SAE adjustable O-Ring Boss with an NBR seal.

Answer by: Customer Support on May 21, 2025, 6:08 AM

Is this tee made from regular steel or somethin' stronger?

Question by: Lyle T on Oct 2, 2025, 5:15 PM

Crafted from forged steel, this tee offers enhanced durability for demanding hydraulic applications.

Answer by: Customer Support on Oct 4, 2025, 2:53 PM

got a system running 9/16-18 JIC fittings on two lines coming in and need to branch off to a third port, does this tee handle that configuration or is it a different thread on the branch?

Question by: Norm R on Apr 10, 2025, 2:27 PM

Two of the ports are Male JIC SAE 37 Degree Flare at 9/16-18, and the third port is Male SAE Adjustable O-Ring Boss, also 9/16-18. So the run ports match your JIC lines, and the branch gives you an adjustable ORB connection at the same thread size. All three ports conform to SAE J514.

Answer by: Customer Support on Apr 11, 2025, 3:44 PM
