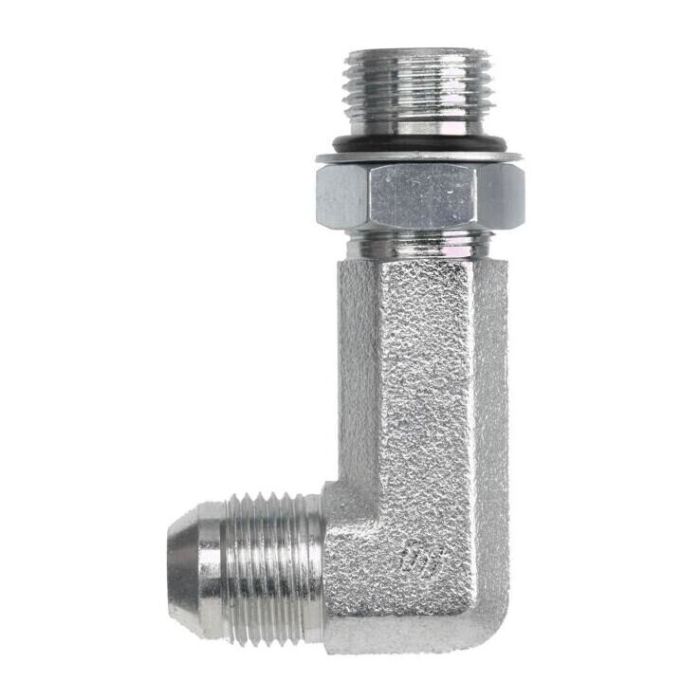

06MJ-06MAORB 90 ELB X-LONG 6801-LL-06-06-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-LL-06-06-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends on this elbow are male? just want to make sure before I order, got a female ORB port on my manifold and need to know what I'm mating to

Question by: Ross H on Oct 28, 2025, 3:30 PM

One end is a Male JIC SAE 37-degree flare, and the other is a Male SAE Adjustable O-ring Boss. Both ends are male, so you'd be threading this into female-receiving ports on each side. The O-ring Boss end uses an NBR O-ring for sealing, which handles the adjustable positioning you get with an ORB connection. Make sure your manifold port and your hose or tube end are female counterparts to match up correctly.

Answer by: Customer Support on Oct 30, 2025, 8:13 AM

Will this fitting work with standard JIC fittings, or do I need something special?

Question by: Ralph C on Apr 7, 2026, 3:03 PM

This elbow uses a male JIC SAE 37-degree flare on one end and a male SAE adjustable O-ring boss on the other, both to SAE J514 specs. It ought to play nice with other standard fittings made to those same standards.

Answer by: Customer Support on Apr 9, 2026, 7:54 AM

trying to swap an elbow on a hose run, what threads are on each end of this 06MJ-06MAORB?

Question by: Jimmy E on Jul 5, 2025, 8:15 PM

On the B1 side it is a 9/16-18 male JIC SAE 37 degree flare, SAE J514. On the B2 side it is a 9/16-18 male SAE adjustable O-ring boss, also called MAORB, SAE J514, and it uses an NBR O-ring for the seal.

Answer by: Customer Support on Jul 7, 2025, 8:25 AM
