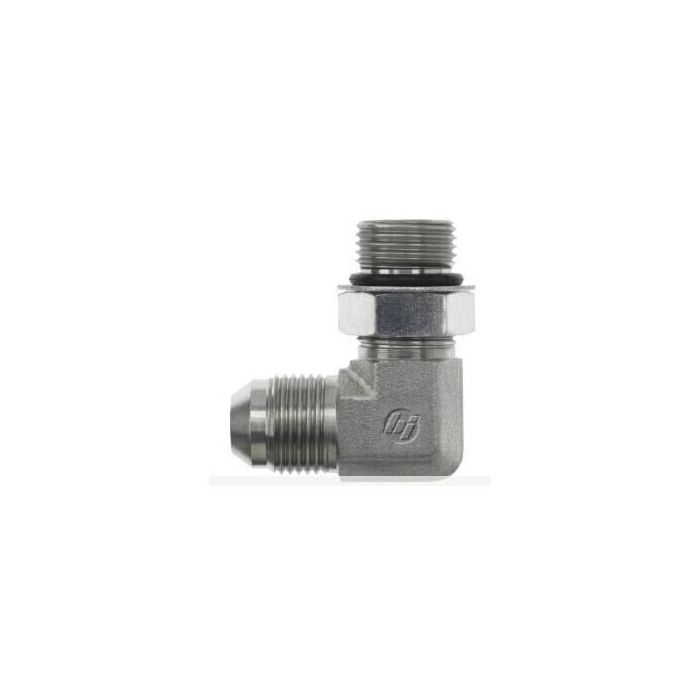

12MJ-16MAORB 90 ELB 6801-12-16-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-12-16-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow on a skid, is this one the JIC 37 flare on one side and an adjustable ORB on the other?

Question by: Sherry P on Sep 21, 2025, 7:04 PM

On the two ends, you get a Male JIC SAE 37 degree flare (B1) and a Male SAE adjustable O-ring boss (B2). Both thread types are called out to SAE J514, with B1 at 1-1/16-12 and B2 at 1-5/16-12.

Answer by: Customer Support on Sep 23, 2025, 6:17 AM

Reckon this'll hold up alright outside?

Question by: Dustin G on Nov 18, 2025, 12:52 PM

Designed for robust performance, this elbow fitting is made from forged steel, offering durability in demanding environments. Its construction ensures longevity, even when exposed to harsh conditions.

Answer by: Customer Support on Nov 20, 2025, 6:24 AM

got a 1-1/16-12 JIC port on one end and a 1-5/16-12 ORB on the other -- will this elbow connect those two without needing any adapter in between?

Question by: Donna K on May 23, 2025, 6:40 PM

That's what this fitting does. One end is a Male JIC SAE 37-degree flare at 1-1/16-12, and the other is a Male SAE adjustable O-ring boss at 1-5/16-12. Both threads conform to SAE J514, so if your ports match those sizes and specs, you're connecting them directly with no extra hardware needed.

Answer by: Customer Support on May 25, 2025, 6:44 AM
