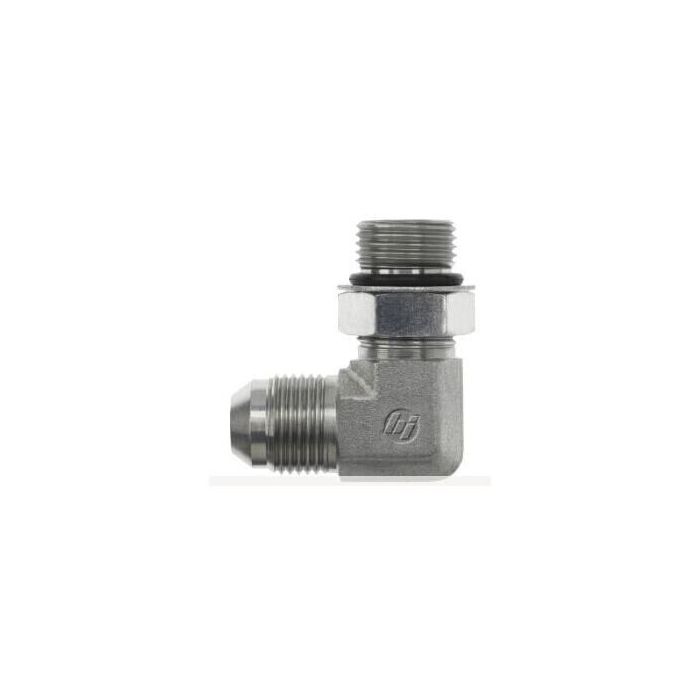

10MJ-16MAORB 90 ELB

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-10-16-NWO-FG	Product Weight 1.00 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of pressure rating does this elbow fitting have?

Question by: Wayne C on Dec 26, 2025, 2:00 PM

It's designed to handle high-pressure applications, up to a maximum dynamic pressure of 4,000 psi.

Answer by: Customer Support on Dec 28, 2025, 6:50 AM

fitting's got a 7/8-14 JIC end and I need to hook into a 1-5/16-12 ORB port, this the right part for that?

Question by: Eddie S on Jan 22, 2026, 4:29 PM

That's what this elbow is built for. One end is a male JIC 37-degree flare at 7/8-14, and the other is a male SAE adjustable O-ring boss at 1-5/16-12. Both threads are SAE J514 compliant, so if your port and your line match those sizes, this fitting connects them at a 90-degree angle without any adapters in between.

Answer by: Customer Support on Jan 24, 2026, 6:01 AM
