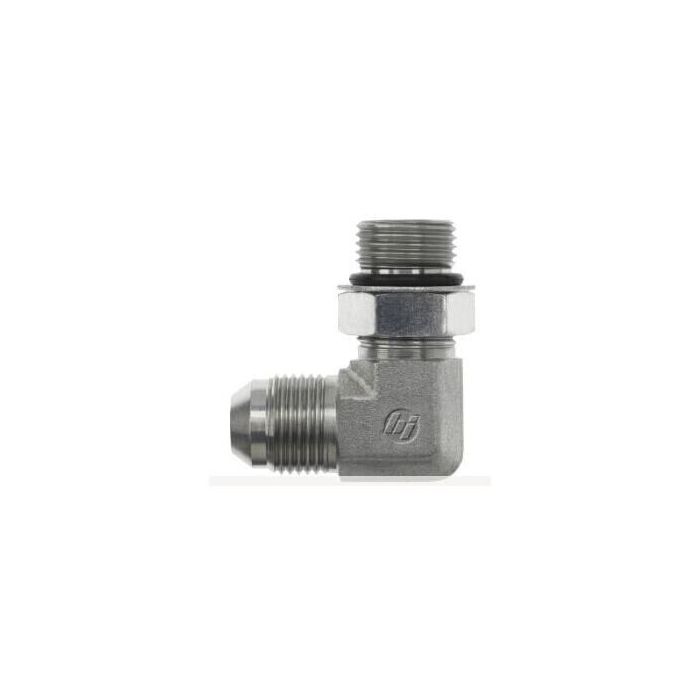

10MJ-10MAORB 90 ELB

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-10-10-NWO-FG	Product Weight 0.17 lbs

Product Questions & Answers 2

Product Questions & Answers

both ends on this fitting are male threads, right? trying to figure out if it'll work going into a female ORB port on my manifold and a female JIC swivel on the hose end

Question by: Dale P on Nov 25, 2025, 8:40 AM

You've got it right. One end is a Male JIC SAE 37-degree flare (7/8-14 thread per SAE J514), and the other is a Male SAE Adjustable O-Ring Boss, also 7/8-14. So yeah, you'd need a female JIC connection on one side and a female ORB port on the other for this to fit up properly. The O-ring on the ORB end handles the sealing there, and the 37-degree flare geometry takes care of the JIC side.

Answer by: Customer Support on Nov 27, 2025, 6:10 AM

got a tight spot on a hydraulic line, is this elbow small enough to tuck in there?

Question by: Lynn D on Jan 22, 2026, 4:59 PM

For cramped installs, it’s a compact 90 degree elbow with a cubic inch space of 4.168, plus an overall length of 1.700 mm and a 1.450 mm centerline length.

Answer by: Customer Support on Jan 24, 2026, 9:14 AM
