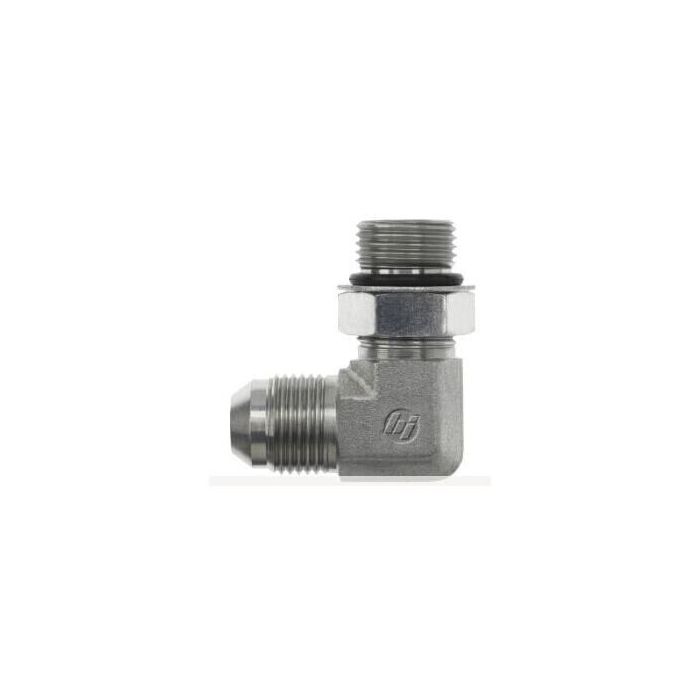

05MJ-05MAORB 90 DEG ELBOW

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6801-05-05-NWO-FG	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up to hydraulic pressures on heavy equipment, like a tractor?

Question by: Cindy G on Jun 7, 2025, 9:40 PM

This elbow is rated for a maximum dynamic pressure of 6000 psi, making it suitable for high-pressure hydraulic systems.

Answer by: Customer Support on Jun 9, 2025, 4:52 PM

got a tight routing situation on a skid steer hydraulic line and need a 90-degree fitting with male JIC on one end and an ORB on the other, this the right part for that?

Question by: Terry M on Feb 24, 2026, 10:38 AM

For that exact combination, yeah, this fitting covers it. One end is a 1/2-20 male JIC with a 37-degree flare, and the other is a 1/2-20 male SAE adjustable O-ring boss. Both threads are 1/2-20 and both conform to SAE J514. The adjustable ORB end gives you the ability to clock the elbow where you need it, which helps a lot in tight routing situations. The NBR O-ring is already included for the ORB side seal.

Answer by: Customer Support on Feb 25, 2026, 3:23 PM
