45* Din X Male Metric Adj

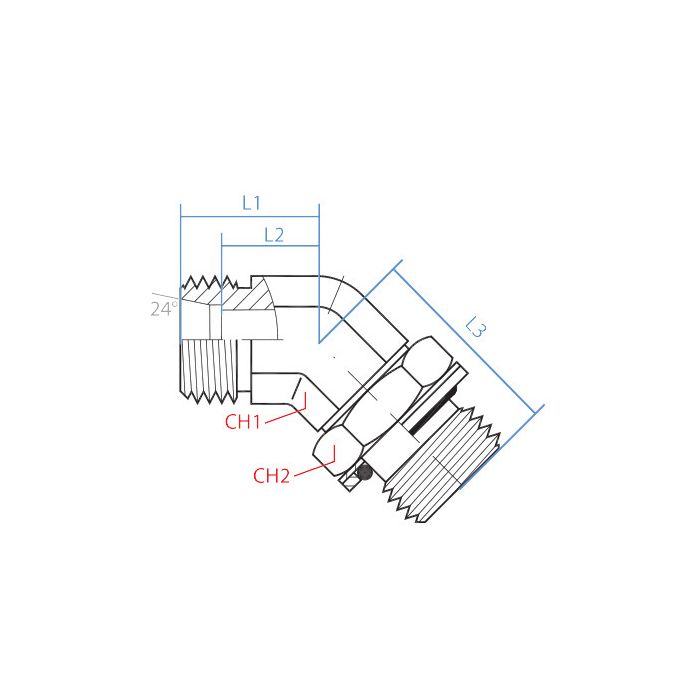

CH1 Width 12mm	CH2 Width 17mm	L1 Length 18mm	L2 Length 11mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size S06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066S-06-12	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running M12 x 1.5 metric on one end and need to tie into a DIN tube fitting that's M14 x 1.5, this the right piece for that?

Question by: Rusty A on May 1, 2025, 8:04 AM

Yeah, that's exactly what this adapter is built for. One end is a male DIN tube fitting with an M14 x 1.5 thread, and the other side is a male metric at M12 x 1.5. If those are your two thread specs, this connects them at a 45 degree angle, which also helps with routing in tighter hydraulic connections layouts.

Answer by: Customer Support on May 3, 2025, 8:31 AM
