Adaptall 45* Din X Male Metric Adj 5066L-15-18

Specifications

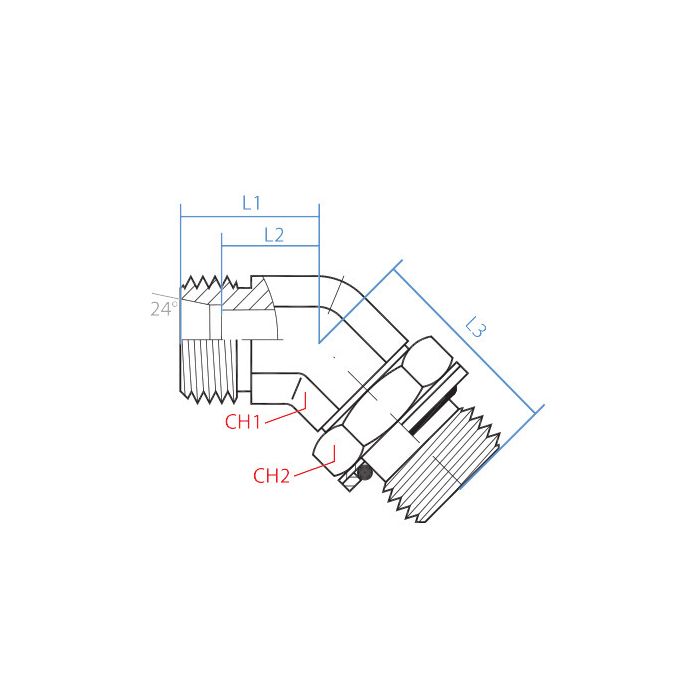

CH1 Width 22mm	CH2 Width 24mm	L1 Length 24mm	L2 Length 17mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066L-15-18	Product Weight 0.27 lbs

Product Questions & Answers 3

Product Questions & Answers

What's the deal with the angles on this thing? I need a 45 degree bend, but wanna be sure.

Question by: Clint F on May 13, 2025, 8:19 PM

This Adaptall fitting is a 45-degree elbow, so it'll give you that angled connection you're looking for.

Answer by: Customer Support on May 15, 2025, 7:20 PM

What size wrenches do I need to torque this fitting down on both ends?

Question by: Ralph H on Apr 13, 2025, 9:19 AM

For the DIN side, you'll want a 22mm wrench on the Ch1 hex. The metric side takes a 24mm on Ch2. Both measurements are the Adaptall-specified wrench flats, so standard metric combination wrenches will do the job without any adapters or special tooling.

Answer by: Customer Support on Apr 15, 2025, 6:36 AM

got a metric tube setup with an M22 x 1.5 DIN tube end, will this elbow mate up or am i lookin at the wrong one

Question by: Ray S on Sep 26, 2025, 7:37 AM

For fit, Side 1 on this elbow is a male DIN Tube connection with an M22 x 1.5 thread in L15 size, so it matches an M22 x 1.5 DIN tube side.

Answer by: Customer Support on Sep 27, 2025, 1:48 PM
