Morfs X Male Din Tube Or Port

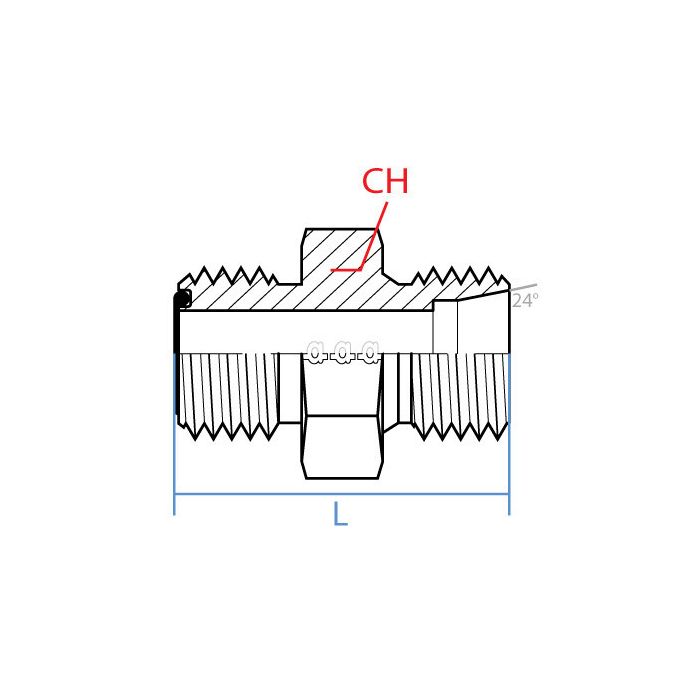

CH Width 19mm	L Length 34.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6605-04-L08-14	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's got a 9/16-18 on one end and M14 x 1.5 on the other -- that right? trying to match up an ORFS line to a DIN port on a piece of equipment and just want to make sure i got the sizes figured out before i order

Question by: Frank W on Mar 4, 2026, 3:57 PM

That's what this fitting does. One end is a 9/16-18 UNF male ORFS connection, which is a 1/4" size, and the other end is an M14 x 1.5 male DIN tube connection, L08 size. Straight configuration, so no angle to account for during installation. If those thread specs match what you're working with on both sides, this is the piece you need.

Answer by: Customer Support on Mar 6, 2026, 6:04 AM

got a hose end that’s 9/16-18 UNF ORFS, 1/4 size. will this adapter mate that to a DIN tube port?

Question by: Randy Y on Jan 13, 2026, 6:34 AM

It bridges a 9/16 - 18 UNF male ORFS connection (1/4 inch size) over to a male DIN tube connection sized L08 with M14 x 1.5 threads, in a straight steel fitting.

Answer by: Customer Support on Jan 14, 2026, 8:20 PM
