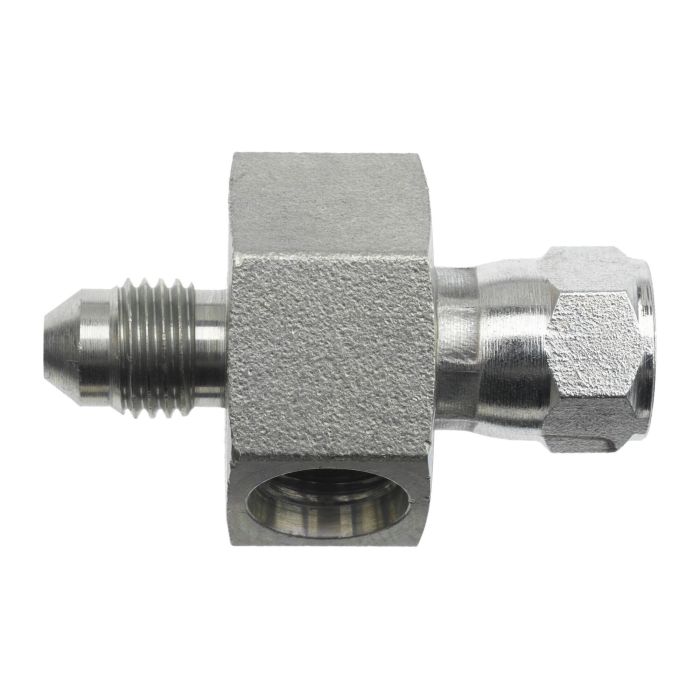

TESTPOINT 16MJ-16FJS STRT W/ 04FORB IN HEX 6564-16-16-04

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6564-16-16-04	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running 1-5/16-12 JIC on both ends and need to pull a gauge port off it without breaking the main flow, this tee do that?

Question by: Kirk H on Feb 4, 2026, 9:14 PM

That's the kind of work this fitting handles. The two main ports are both 1-5/16-12 JIC, one male flare and one female swivel, so you can drop it straight into an existing JIC line. The branch port off the side is a 7/16-20 female SAE O-ring boss, which is a standard gauge port size. Flow through the main line stays uninterrupted while the branch gives you a dedicated test or gauge connection. Straight steel construction, SAE J514 across all three threads.

Answer by: Customer Support on Feb 6, 2026, 9:03 PM

trying to add a test gauge on a line, is this the kind of tee that gives you a little gauge port off the side?

Question by: Ray R on Jun 10, 2025, 9:17 AM

Built as a gauge port branch tee, it gives you a main run with JIC 37 degree flare connections and a separate branch port for a gauge or testpoint style hookup. The branch is a female SAE O-ring boss thread in 7/16-20.

Answer by: Customer Support on Jun 11, 2025, 9:18 AM

What size is that lil hex head where the gauge goes?

Question by: Sheila R on Feb 27, 2026, 3:18 PM

The gauge port branch has a 1.500 mm C hex for the gauge connection.

Answer by: Customer Support on Feb 28, 2026, 5:14 PM
