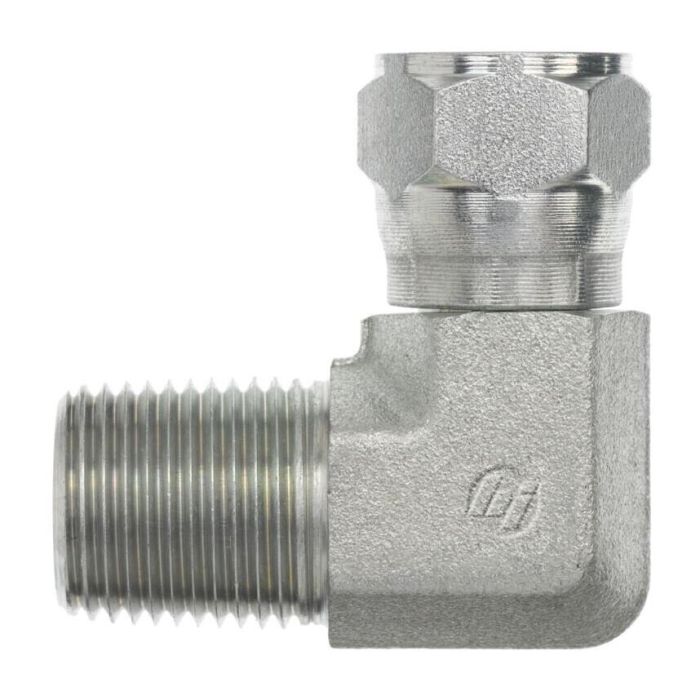

08MP-10FJS 90 DEG Elbow

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-08-10-FG	Product Weight 0.00 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a 1/2 NPTF male port on a manifold block and need to swing a JIC line off it at a right angle, this the right fitting for that?

Question by: Gene H on Oct 29, 2025, 9:52 PM

That setup is exactly what this elbow is built for. One end threads into your 1/2-14 NPTF port on the block, and the other gives you a 7/8-14 Female JIC swivel at 90 degrees so your hose or tube line can come off clean without fighting the angle. The swivel end uses a 37 degree flare seat per SAE J514, so it'll mate up correctly with a standard JIC fitting on your line. Steel forging construction keeps it solid under the kind of load you'd expect in a working hydraulic circuit.

Answer by: Customer Support on Oct 31, 2025, 6:17 AM

Does this fitting meet both SAE J476 and J514 specs?

Question by: Brenda W on Apr 27, 2025, 11:35 AM

Yes, this elbow is manufactured to meet both SAE J476 and SAE J514 specifications, ensuring robust connectivity.

Answer by: Customer Support on Apr 29, 2025, 6:34 AM
