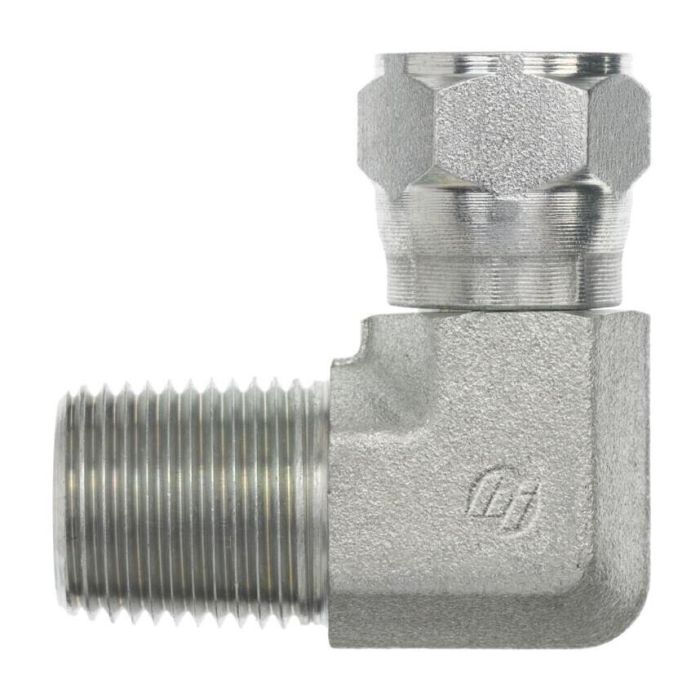

04MP-06FJS 90 DEG Elbow

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6501-04-06-FG	Product Weight 0.00 lbs

Product Questions & Answers 3

Product Questions & Answers

thread on the male end is 1/4-18 NPTF -- does that fit standard pipe fittings or does it need something special to seal up right?

Question by: Larry A on May 4, 2025, 9:37 AM

NPTF threads are built to seal on their own through thread-to-thread contact, so you don't need a separate sealant the way you would with standard NPT in some situations. The 1/4-18 size is a common pipe thread size, so it'll fit any port or fitting tapped to that spec. Just make sure the mating port is also NPTF and not a lookalike thread standard, since mixing those can cause leak issues even when the threads appear to engage fine.

Answer by: Customer Support on May 5, 2025, 10:20 AM

trying to swap out a fitting, is this one the 1/4-18 male pipe thread to 9/16-18 female jic swivel in a 90?

Question by: Jean C on Jul 5, 2025, 12:20 PM

It’s a 90 degree elbow with a 1/4-18 Male NPTF thread on the B1 side and a 9/16-18 Female JIC swivel 37 degree flare on the B2 side, built to SAE J476 (NPTF) and SAE J514 (JIC) thread specs.

Answer by: Customer Support on Jul 7, 2025, 6:35 AM

Can this elbow handle some serious pressure in a hydraulic setup?

Question by: Troy W on Mar 14, 2026, 6:45 PM

This 90-degree elbow is forged from steel, ensuring it can withstand the demands of high-performance industrial applications.

Answer by: Customer Support on Mar 16, 2026, 1:10 PM
