Adaptall 45* Din X Male Metric Adj 5066L-10-14

Specifications

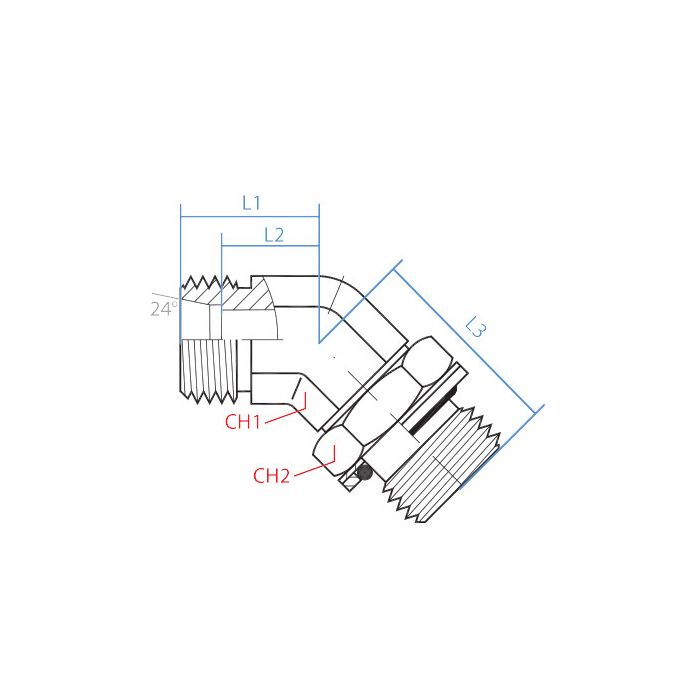

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20mm	L2 Length 13mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066L-10-14	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tuck a line in tight, is this the 45 degree elbow that goes from M16 x 1.5 DIN tube to M14 x 1.5 male metric?

Question by: Hugh H on Feb 12, 2026, 2:35 PM

For a mixed connection like that, it’s a 45° elbow with an M16 x 1.5 DIN tube end on one side and an M14 x 1.5 male metric thread on the other.

Answer by: Customer Support on Feb 14, 2026, 12:57 PM

Will this fitting hold up okay in a hydraulic system that sees pretty constant use?

Question by: Johnny T on Jan 6, 2026, 5:26 PM

This steel fitting is designed for use in hydraulic systems where DIN tube and metric threaded components need to be joined at an angle, suggesting it's made to handle typical hydraulic pressures and usage.

Answer by: Customer Support on Jan 8, 2026, 6:10 AM

got a DIN tube end on one side and a metric threaded port on the other, does this fitting bridge those two without needing an adapter in between?

Question by: Jimmy W on Oct 12, 2025, 4:23 PM

That's what it's built for. One side connects to an M16 x 1.5 DIN tube end and the other picks up an M14 x 1.5 male metric thread, so you're covered on both ends with a single piece. The 45-degree angle also helps when a straight connection just won't work with how your lines are routed.

Answer by: Customer Support on Oct 13, 2025, 4:34 PM
