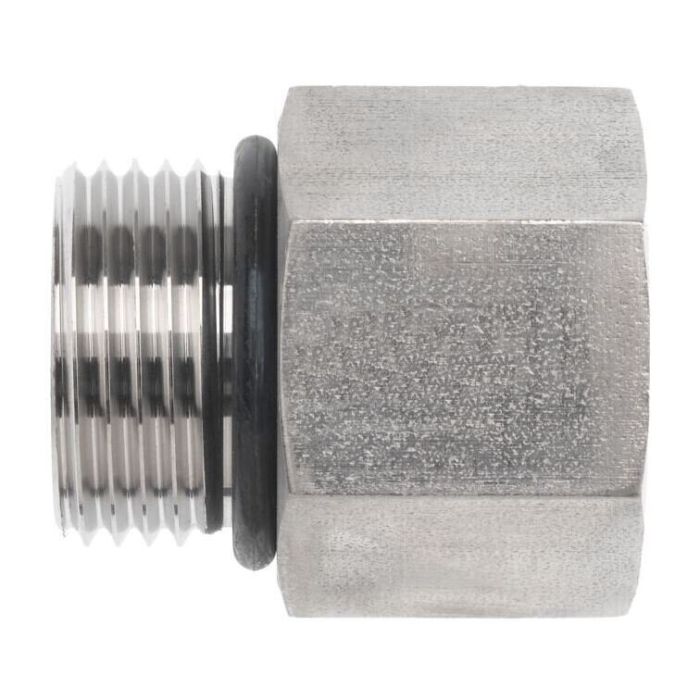

FF1010-12-10S ORB BUSHING

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6410-12-10-O	Product Weight 0.31 lbs

Product Questions & Answers 2

Product Questions & Answers

thread sizes on this one got me second-guessing myself. the male end is the bigger of the two, right?

Question by: Roger H on Aug 19, 2025, 2:15 PM

Correct. The male SAE O-ring Boss thread measures 1-1/16-12, and the female end is the smaller 7/8-14. So yeah, you're stepping down from the larger male side to the smaller female side. Both threads are built to SAE J514 spec, and the NBR O-ring seal is already part of the fitting, so no separate seal is needed on assembly.

Answer by: Customer Support on Aug 21, 2025, 6:03 AM

trying to step a 12 MORB port down to a 10 ORB, is this the right bushing or am i mixing things up

Question by: Ricky E on Jul 21, 2025, 6:21 PM

For a straight ORB reducer, this one matches that setup. It has a 1-1/16-12 male SAE O-ring Boss on one side (B1) and a 7/8-14 female SAE O-ring Boss on the other side (B2), both to SAE J514.

Answer by: Customer Support on Jul 23, 2025, 10:42 AM
