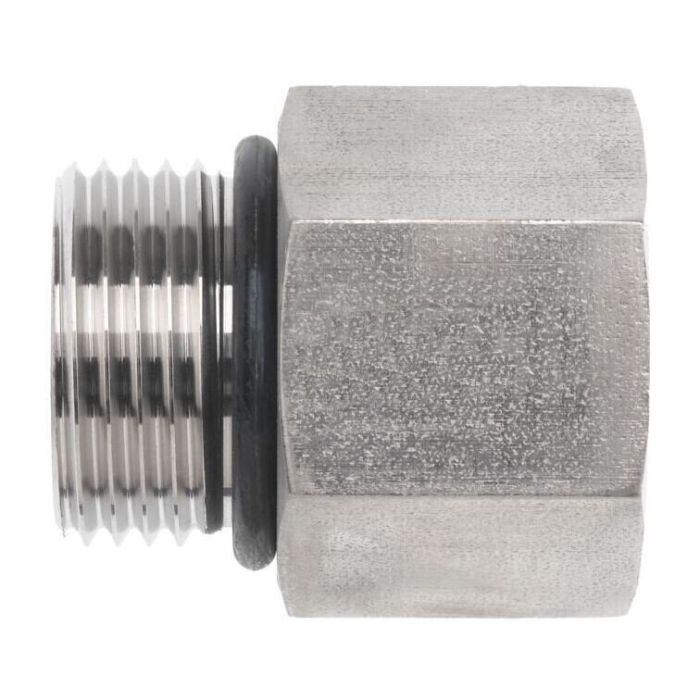

08MORB-12FP STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6405-08-12-O	Product Weight 0.43 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a 3/4-16 male ORB port to a 3/4-14 female npsm swivel, is that what this adapter does?

Question by: Shane M on Sep 27, 2025, 4:50 PM

For tying those two thread styles together, this piece is set up with a male SAE O-ring boss on one side (3/4-16, SAE J514) and a female NPSM on the other (3/4-14, SAE J476). It also uses an NBR O-ring on the ORB end for sealing.

Answer by: Customer Support on Sep 29, 2025, 6:47 AM

what thread type does the male end on this adapter use, and is it got an o-ring built in or do I need to supply my own seal?

Question by: Dwayne L on Sep 9, 2025, 2:35 PM

The male end is a SAE O-ring boss thread, sized 3/4-16 and built to SAE J514 spec. The o-ring comes with the adapter, it's NBR material, so no separate seal is needed on that end. That's one of the reasons the ORB style connection is popular for hydraulic work, the seal is already part of the fitting.

Answer by: Customer Support on Sep 11, 2025, 7:55 AM
