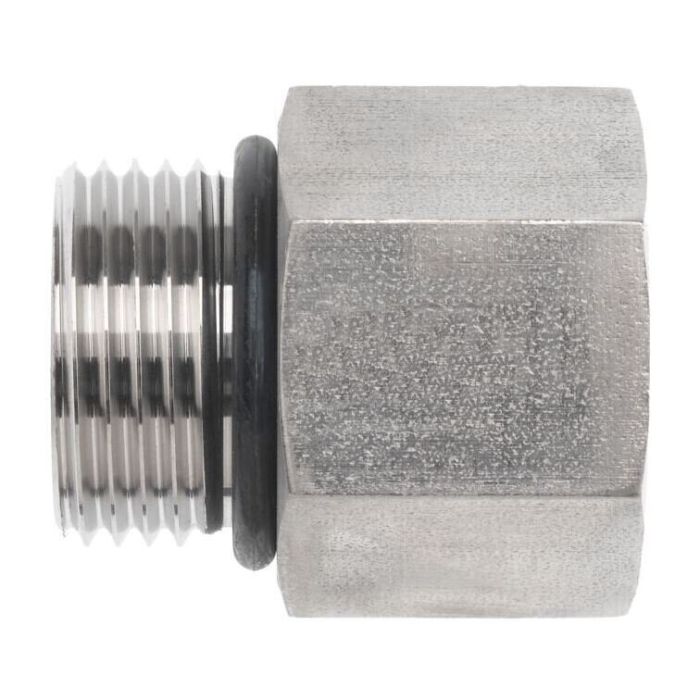

02MORB-02FP STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6405-02-02-O	Product Weight 0.04 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an old fitting, what threads are on each side of this 02MORB-02FP?

Question by: Roy B on Aug 12, 2025, 4:14 PM

On the B1 side you get a 5/16-24 male SAE O-ring boss thread built to SAE J514, and it seals with an NBR O-ring. The B2 side is a 1/8-27 female NPSM thread per SAE J476.

Answer by: Customer Support on Aug 14, 2025, 6:44 AM

Got a line running 1/8-27 NPSM female fittings out in the field. Will this adapter mate up to that without needing a bushing or reducer in between?

Question by: Phil P on May 2, 2025, 3:15 PM

A straight connection right into your 1/8-27 NPSM female line is exactly what the B2 end of this adapter handles. That thread conforms to SAE J476, so no additional reducer or bushing needed on that side. The other end is a 5/16-24 male SAE O-ring boss per SAE J514, with an NBR o-ring providing the seal. As long as your mating port accepts that size and thread type, you're good to go with a direct fit.

Answer by: Customer Support on May 3, 2025, 5:15 PM
