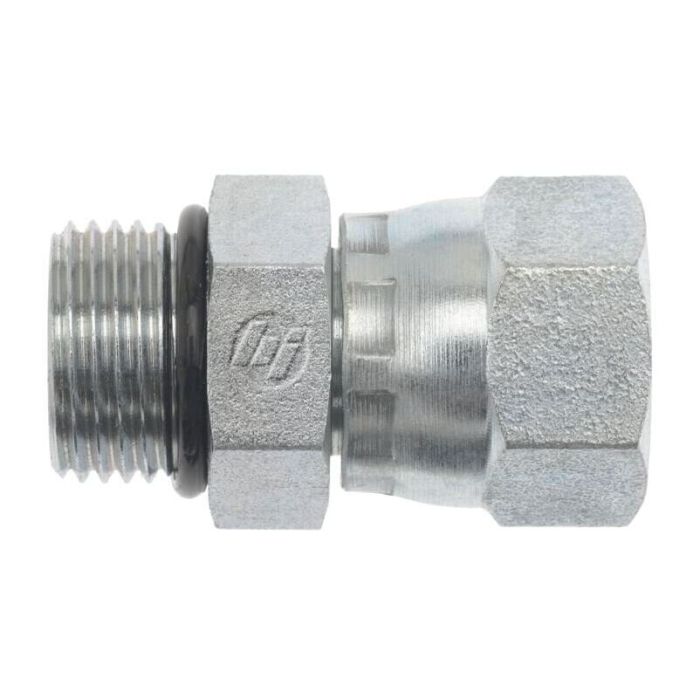

10MORB-10FJS STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6402-10-10-O	Product Weight 0.23 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap a fitting out, is this one MORB on one end and a JIC swivel on the other?

Question by: Eddie W on May 22, 2025, 10:23 AM

On the B1 end it is a Male SAE O-Ring Boss, and on the B2 end it is a Female JIC Swivel 37 degree flare. Both ends are 7/8-14 thread size per SAE J514, and it uses an NBR O-ring/seal.

Answer by: Customer Support on May 23, 2025, 1:02 PM

got a port that's tapped for an O-ring boss and I need to hook up a JIC swivel line to it, this a straight shot fitting or does it have some kind of angle to it?

Question by: Frank B on Nov 24, 2025, 6:49 PM

Straight through, no angle. One end is a Male SAE O-Ring Boss and the other is a Female JIC Swivel with a 37 degree flare. Both threads are 7/8-14 and built to SAE J514 spec, so it connects those two thread types in a direct inline configuration. The body is steel and the O-ring seal is NBR rubber, which holds up well against petroleum-based hydraulic fluids.

Answer by: Customer Support on Nov 26, 2025, 6:32 AM
