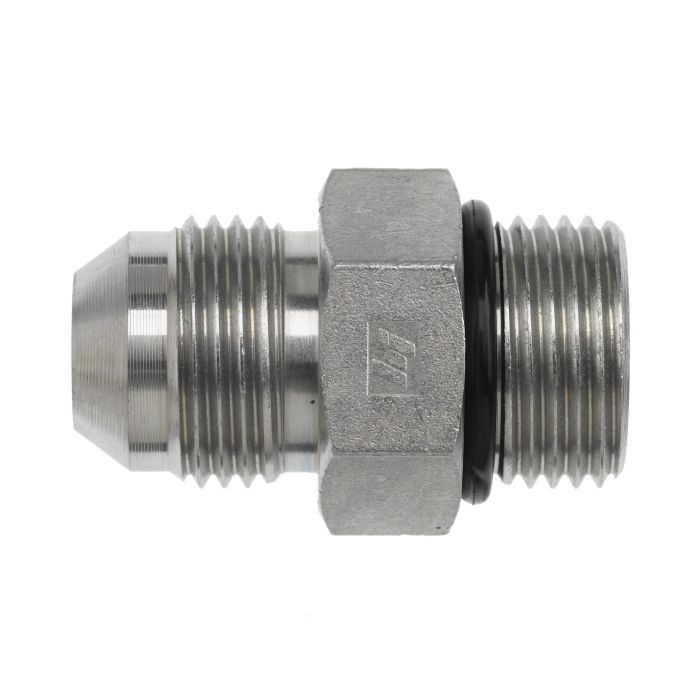

10MJ-16MORB STRAIGHT 6400-10-16-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6400-10-16-O	Product Weight 0.42 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a port on my hydraulic manifold that's 1-5/16-12 ORB and I need to run a JIC line off it, this the right adapter for that?

Question by: Merle C on Dec 18, 2025, 9:08 PM

That's what this one's for. One end is a 7/8-14 Male JIC 37-degree flare and the other is a 1-5/16-12 Male SAE O-Ring Boss, so it'll bridge those two thread types in a straight-line connection. Both threads conform to SAE J514, and the NBR o-ring on the ORB end handles the sealing. As long as your system runs standard petroleum-based hydraulic fluid and stays under 4,000 PSI dynamic pressure, this adapter fits the bill.

Answer by: Customer Support on Dec 20, 2025, 10:54 AM

Will this here fitting hold up okay in a hydraulic system that runs pretty much all day, every day?

Question by: Jerry P on Dec 9, 2025, 5:23 PM

With a dynamic pressure rating of up to 4,000 PSI, this adapter should be suitable for demanding hydraulic systems in industrial and mobile equipment, as long as you're using standard petroleum-based hydraulic fluids. The NBR O-ring is compatible with those.

Answer by: Customer Support on Dec 10, 2025, 9:49 PM

got a hose end that’s 7/8-14 JIC male and i need to go into a 1-5/16-12 ORB port. is that what this adapter does

Question by: Dwayne W on Mar 26, 2026, 4:05 PM

For tying a 7/8-14 male JIC 37 degree flare connection to a 1-5/16-12 male SAE O-Ring Boss connection, this is the straight adapter built for that job. Both ends are SAE J514, and the ORB side seals with an NBR O-ring.

Answer by: Customer Support on Mar 27, 2026, 6:24 PM
