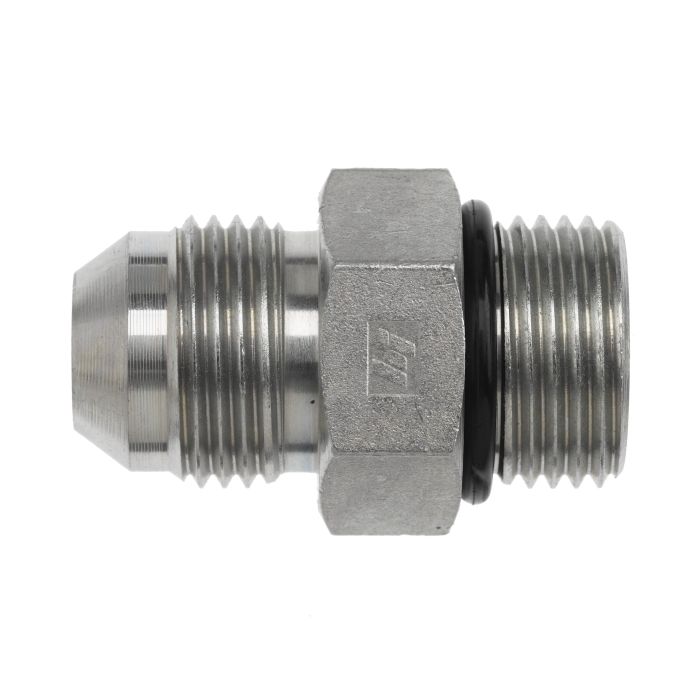

05MJ-05MORB STRAIGHT

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6400-05-05-O	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s male JIC 37 degree flare. will this screw into a male ORB port or am I mixing stuff up

Question by: Ronnie W on Jun 23, 2025, 7:28 AM

You’d be mixing it up. This fitting has two male ends, one is Male JIC SAE 37 Degree Flare and the other is Male SAE O-Ring Boss (ORB). A male ORB port expects a female ORB swivel, not another male ORB. The ORB side on this part is meant to thread into a female ORB port and seal on the NBR O-ring.

Answer by: Customer Support on Jun 24, 2025, 4:08 PM

fitting's rated to 6,000 psi, that work for standard hydraulic lines on farm equipment and such?

Question by: Warren B on Feb 18, 2026, 2:03 PM

Yeah, 6,000 psi max dynamic pressure puts it well within range for most agricultural and heavy equipment hydraulic systems. The NBR o-ring seal holds up under those working conditions and keeps things from weeping at the connection. Both ends are 1/2-20 thread, one side JIC 37-degree flare and the other SAE O-Ring Boss, so as long as your ports match up, you're in good shape.

Answer by: Customer Support on Feb 20, 2026, 12:17 PM
