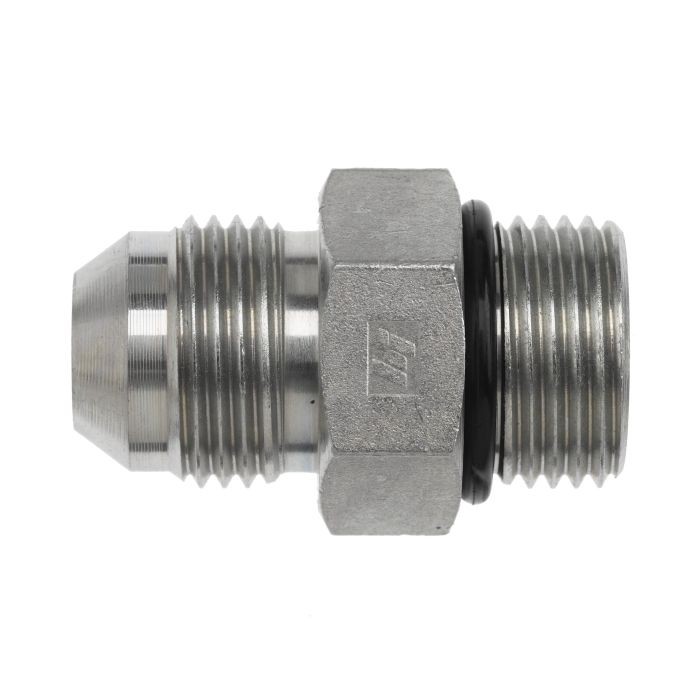

04MJ-04MORB STRAIGHT 6400-04-04-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6400-04-04-O	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

i’ve got a hose end that’s 7/16-20 JIC, will this adapter mate up to it and still seal right?

Question by: Hubert T on Apr 25, 2025, 9:06 PM

On the JIC side, you are getting a male JIC SAE 37 degree flare with 7/16-20 threads, built to SAE J514. The other end is a male SAE O-ring boss, also 7/16-20, and it seals with an NBR O-ring on that ORB side.

Answer by: Customer Support on Apr 27, 2025, 11:55 AM

Reckon this'll hold up in a hydraulic system pushing 6000 PSI?

Question by: Stan B on Oct 18, 2025, 1:33 PM

Yes sir, it is designed to handle dynamic pressures up to 6000 PSI.

Answer by: Customer Support on Oct 20, 2025, 7:25 AM

Got a port on my manifold that's SAE O-ring boss and the hose end I'm working with has a JIC 37-degree flare fitting, will this adapter bridge that gap?

Question by: Ray W on Mar 15, 2026, 5:30 PM

Yeah, that's exactly what this one's built for. One end is a male JIC SAE 37-degree flare and the other is a male SAE O-ring boss, both threaded at 7/16-20. So if your manifold port accepts a male ORB and your hose assembly terminates in a female JIC swivel, you'd be set. Both ends conform to SAE J514, and the NBR o-ring on the ORB side handles the sealing. Rated up to 6,000 PSI, so it holds up in most high-pressure hydraulic lines without issue.

Answer by: Customer Support on Mar 17, 2026, 12:01 PM
