Adaptall 45* Din X Male Metric Adj 5066L-08-12

Specifications

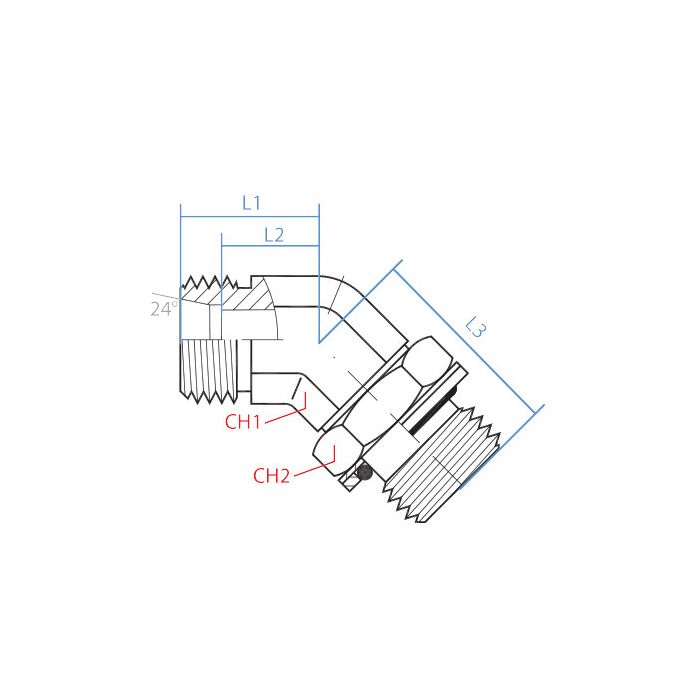

CH1 Width 12mm	CH2 Width 17mm	L1 Length 20mm	L2 Length 13mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066L-08-12	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out a bent elbow on a metric line, is this one the 45 degree with M14 x 1.5 on one side and M12 x 1.5 on the other?

Question by: Eddie C on Dec 21, 2025, 7:17 PM

Yes, it is a 45° elbow Adaptall fitting with a DIN tube connection on Side 1 called out as L08 or M14 x 1.5, and a male metric adjustable connection on Side 2 called out as 12 mm or M12 x 1.5.

Answer by: Customer Support on Dec 23, 2025, 7:13 PM

What size connections am I working with on both ends of this fitting?

Question by: Steve J on Apr 12, 2025, 8:31 PM

Side 1 is a DIN tube connection sized L08 with an M14 x 1.5 thread, and Side 2 is a male metric connection running 12mm with an M12 x 1.5 thread. The 45 degree elbow shape means you're routing flow at an angle rather than straight through, which helps a lot when you're tight on space or need to change direction without adding extra fittings.

Answer by: Customer Support on Apr 14, 2025, 6:25 AM
