Male Orfs X Male Kobelco 6247-16-35-45

Specifications

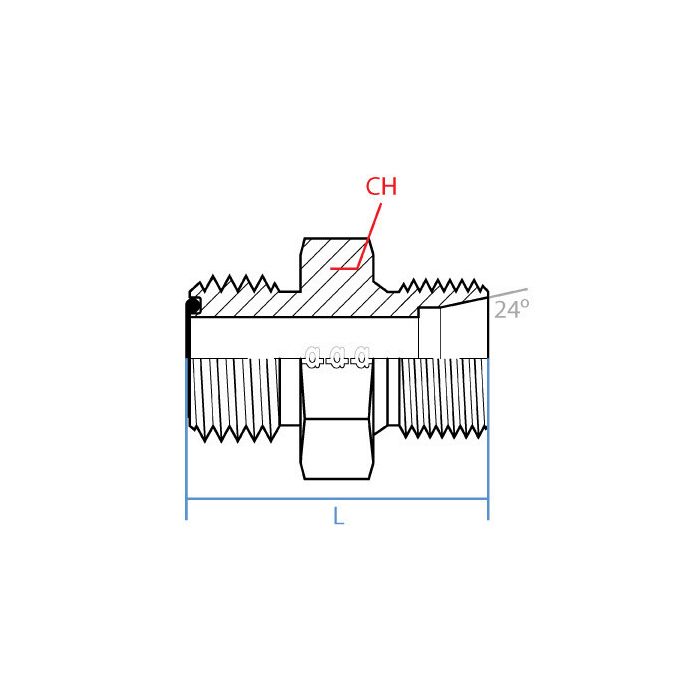

CH Width 51mm	L Length 51.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout M45 X 1.5	Side 2 Gender M	Side 2 Size L35 SPECIAL	Side 2 Type Kobelco	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6247-16-35-45	Product Weight 0.92 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 1 inch ORFS male, is this the right adapter to go over to a Kobelco male?

Question by: Janet C on Feb 28, 2026, 9:21 AM

On one end you get a 1 inch ORFS male with a 1-7/16 - 12 UN thread. The other end is a Kobelco male listed as L35 SPECIAL with an M45 x 1.5 thread. If those match what you are tying into, this adapter is made for that ORFS-to-Kobelco male connection.

Answer by: Customer Support on Mar 2, 2026, 7:13 AM

Got a Kobelco excavator and need to tie into an ORFS line, this adapter, is it gonna be a straight shot or is there some fiddling involved to get it seated right?

Question by: Roger A on Sep 2, 2025, 2:50 PM

Both ends thread in directly with no angled offset, so fitting it up is about as straightforward as it gets. Side one is a 1-inch ORFS male on a 1-7/16-12 UN thread, and side two is an M45 x 1.5 male thread built to the L35 Special Kobelco spec. As long as your mating ports match those callouts, it drops right in without any adapter stacking or repositioning.

Answer by: Customer Support on Sep 4, 2025, 1:56 PM

Will this here adapter fit my Kobelco equipment alright? I'm needing to hook up somethin' with ORFS fittings.

Question by: Ray A on Dec 4, 2025, 3:32 PM

This adapter is specifically designed to connect a 1" ORFS male connection to a Kobelco M45 x 1.5 L35 SPECIAL male connection, so it should work well for that application.

Answer by: Customer Support on Dec 6, 2025, 3:16 PM
