Male Orfs X Male Kobelco

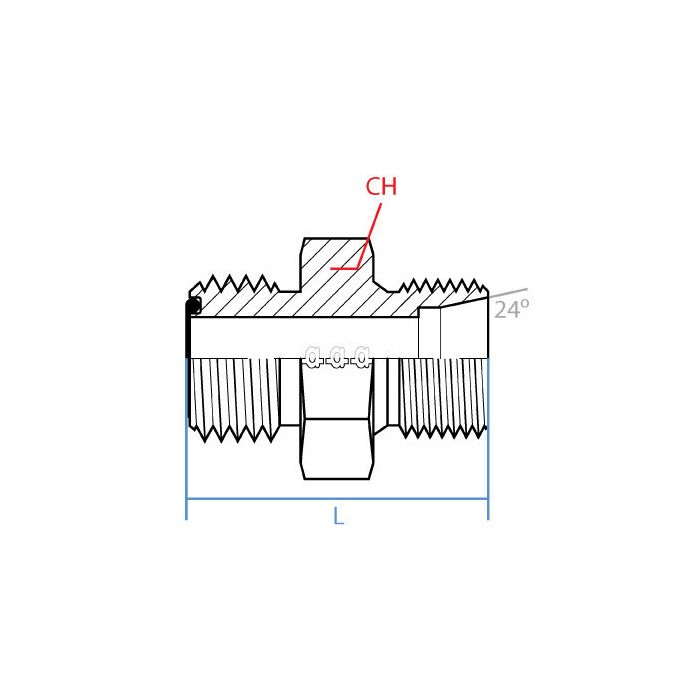

CH Width 41mm	L Length 52.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout M36 X 1.5	Side 2 Gender M	Side 2 Size L28 SPECIAL	Side 2 Type Kobelco	Alternate Part Numbers Alternate Part Number C1GH60	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6247-12-28-36	Product Weight 0.58 lbs

Product Questions & Answers 2

Product Questions & Answers

Trying to hook an ORFS hose up to a Kobelco port, is this the right adapter or am i lookin at the wrong one

Question by: Gene B on Jul 19, 2025, 8:17 PM

For a Kobelco-style male port in L28 Special with an M36 x 1.5 thread on one side and a 3/4 inch male ORFS with a 1-13/16-12 UN thread on the other, this adapter is the straight steel piece that bridges those two standards.

Answer by: Customer Support on Jul 21, 2025, 6:50 AM

Just wanna make sure this'll fit my Kobelco equipment. It's got that L28 special size, right?

Question by: Ricky G on May 3, 2025, 8:51 PM

This adapter is designed with one side specifically for Kobelco equipment using the L28 Special size with an M36 x 1.5 metric thread.

Answer by: Customer Support on May 5, 2025, 6:55 AM
