Male Orfs X Male Komatsu 6237-16-33

Specifications

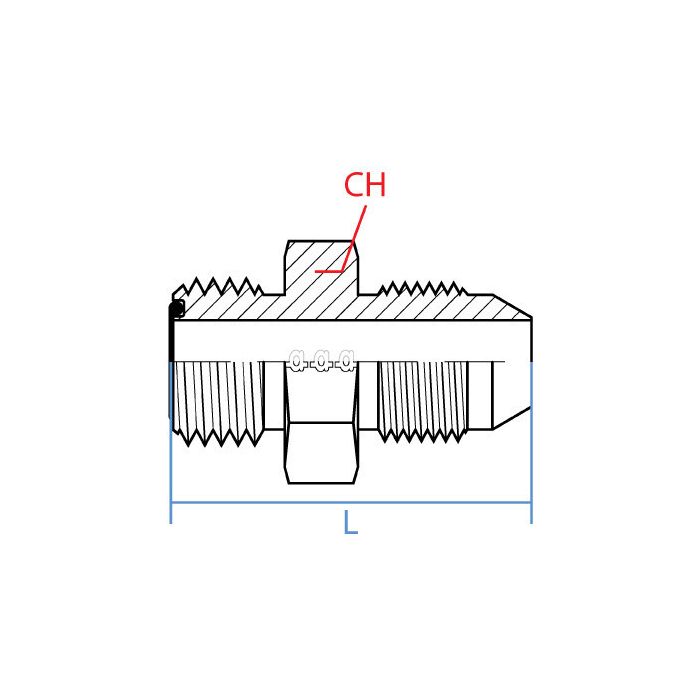

CH Width 41mm	L Length 61.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Orfs	Side 2 Callout M33 X 1.5	Side 2 Gender M	Side 2 Size 33mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6237-16-33	Product Weight 0.69 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up okay on a piece of earthmoving equipment?

Question by: Phil C on Sep 24, 2025, 8:57 AM

Built from steel and manufactured by Adaptall, this adapter should provide reliable performance in heavy machinery applications.

Answer by: Customer Support on Sep 26, 2025, 6:55 AM

Got a Komatsu port on a piece of heavy equipment that needs to tie into an ORFS line, this the right adapter to make that happen?

Question by: Jean C on Jul 31, 2025, 1:46 PM

That's what this fitting is built for. One end is a 1-7/16-12 UN male ORFS thread, the other is an M33 x 1.5 male Komatsu thread, so it bridges those two standards in a single straight adapter. Both sides are male, which means you'll need female counterparts on whatever you're connecting to. The straight profile keeps things clean when you've got the clearance to work with.

Answer by: Customer Support on Aug 2, 2025, 9:21 AM

got a komatsu port that’s M33 x 1.5 and my hose end is 1 inch ORFS, is this the right adapter?

Question by: Jimmy C on Nov 10, 2025, 1:42 PM

For that exact thread mix, it matches up as a straight male to male adapter with M33 x 1.5 male on one side (Komatsu) and 1-7/16-12 UN male on the other side (1 inch ORFS).

Answer by: Customer Support on Nov 12, 2025, 6:55 AM
