Male Orfs X Male Komatsu

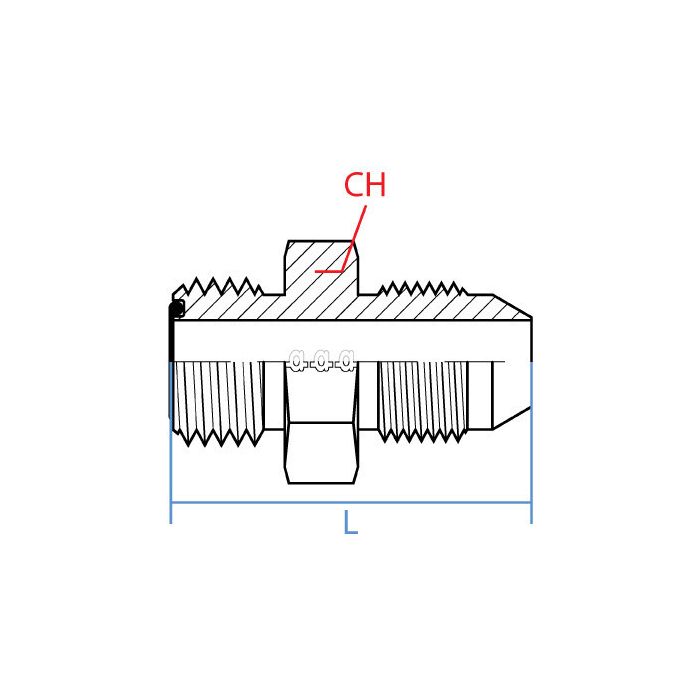

CH Width 27mm	L Length 51.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Komatsu	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6237-08-22	Product Weight 0.30 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a Komatsu-ported machine and need to tie into an ORFS line. This the right piece for that?

Question by: Patty F on Oct 8, 2025, 7:08 AM

That's what this adapter is built for. One end is a 1/2" Male ORFS with a 13/16-16 UN thread, and the other is a Male Komatsu at M22 x 1.5. Both ends are male, so you'd be threading each side directly into its corresponding female port or fitting. Steel construction, straight body, 51.7mm long with a 27mm wrench flat. Adaptall makes it, so the tolerances are consistent with what you'd expect for hydraulic adapter work on mobile equipment.

Answer by: Customer Support on Oct 9, 2025, 7:27 PM
