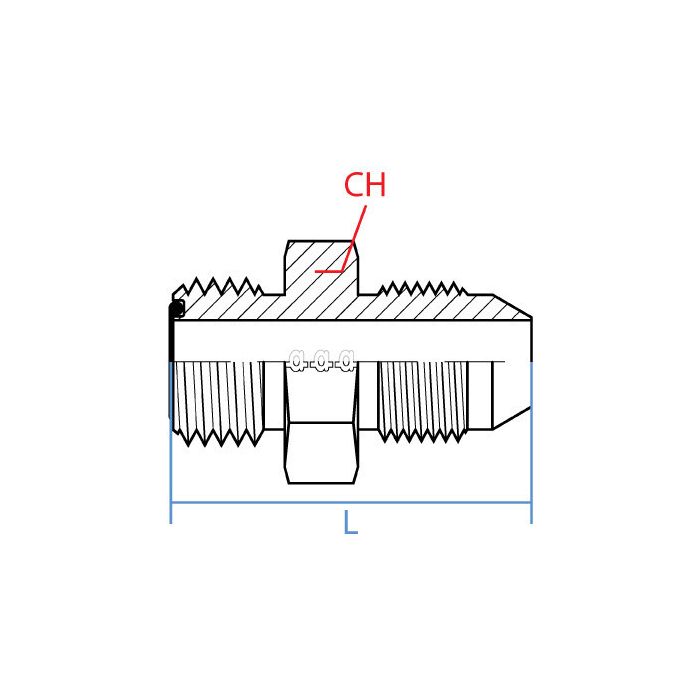

Male Orfs X Male Komatsu

CH Width
19mm
L Length
37.2mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
9/16 - 18 UNF
Side 1 Gender
M
Side 1 Size
1/4"
Side 1 Type
Orfs
Side 2 Callout
M14 X 1.5
Side 2 Gender
M
Side 2 Size
14mm
Side 2 Type
Komatsu
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
6237-04-14
Product Weight
0.10 lbs

Product Questions & Answers

trying to replace an adapter on a komatsu line, is this the one that goes from 1/4 ORFS to M14 x 1.5?
Question by: Wade H on Sep 20, 2025, 12:29 PM
On the ORFS side, it is a 1/4 inch male ORFS with a 9/16-18 UNF thread, and the other end is a male M14 x 1.5 Komatsu thread. It is a straight steel adapter.
Answer by: Customer Support on Sep 21, 2025, 7:53 PM
Will this here adapter work with Komatsu equipment on the other end?
Question by: Dale M on Feb 8, 2026, 6:38 PM
This adapter is indeed compatible with Komatsu fittings on the M14 x 1.5 thread side.
Answer by: Customer Support on Feb 10, 2026, 5:48 PM
Got a Komatsu machine that needs a 1/4" ORFS line tied into it. This adapter gonna work for that hookup?
Question by: Marvin A on Feb 27, 2026, 8:33 PM
That's exactly what this fitting is built for. One end is a 9/16-18 UNF thread with a 1/4" ORFS connection, and the other end is M14 x 1.5, which is the Komatsu-style thread. Both sides are male, so you'd be connecting it between a female ORFS fitting on your hydraulic line and a female Komatsu port on the machine. Steel construction, straight configuration, 37.2mm long. Should drop right into that application without any fuss.
Answer by: Customer Support on Mar 1, 2026, 6:02 AM
