Male Orfs X Female Jis 6220-08-08

Specifications

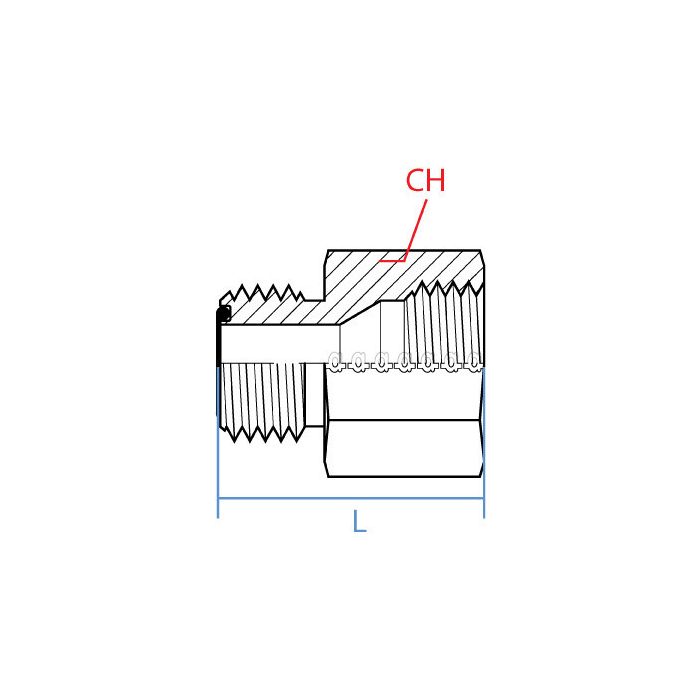

CH Width 27mm	L Length 32.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6220-08-08	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a machine running JIS fittings and need to tie in some ORFS lines, this straight adapter handle that kind of crossover?

Question by: Clint M on Mar 22, 2026, 1:08 PM

Yeah, that's exactly what this fitting is built for. One end is male ORFS with a 13/16-16 UN thread, and the other is female JIS at G 1/2-14. Both sides are 1/2" size, so you're connecting two half-inch lines from different standards without needing extra adapters or fabricated solutions. Steel construction, straight configuration, 32.7mm overall length. Pretty clean swap if the rest of your hydraulic connections lines up.

Answer by: Customer Support on Mar 24, 2026, 9:26 AM

trying to match up a hose end, is this the straight adapter that goes from 1/2 ORFS male over to a 1/2 JIS female?

Question by: Dwayne G on Aug 4, 2025, 6:38 PM

You’ve got it. It’s a straight steel adapter with a 1/2 inch male ORFS on one side (13/16 - 16 UN callout) and a 1/2 inch female JIS on the other (G 1/2 - 14 callout).

Answer by: Customer Support on Aug 6, 2025, 11:54 AM

Will this here fitting hold up alright outside?

Question by: Tammy D on Jul 26, 2025, 1:50 PM

This steel Adaptall fitting should perform well in many outdoor environments, but keep in mind that steel is susceptible to rust over time, especially in humid or coastal areas.

Answer by: Customer Support on Jul 28, 2025, 1:13 PM
