90* Din X Male Bspp Adj Elbow

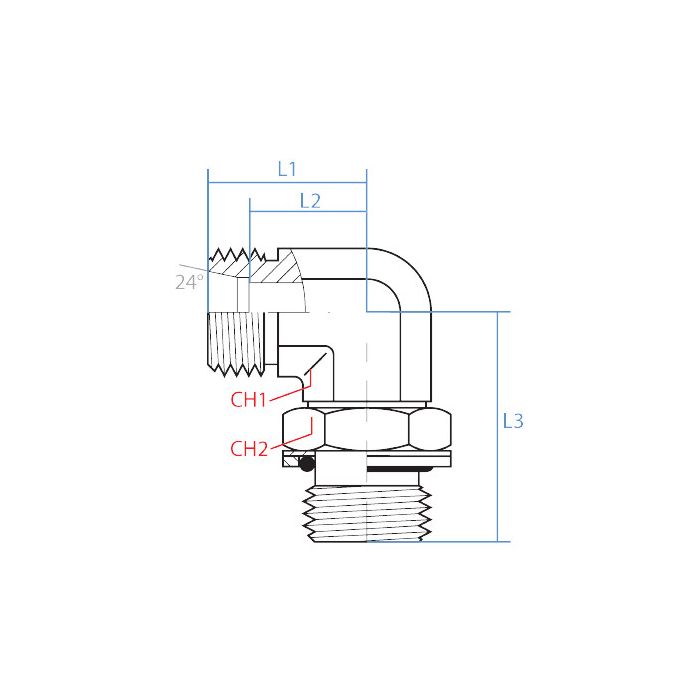

CH1 Width 19mm	CH2 Width 24mm	L1 Length 29mm	L2 Length 21.5mm	L3 Length 37mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059S-12-06	Product Weight 0.26 lbs

Product Questions & Answers 1

Product Questions & Answers

got a fixed port on a valve body that's sitting at a real awkward angle, does the adjustable feature on this elbow let you spin it around before you lock it down, or is it fixed once it's assembled?

Question by: Tony H on Jun 28, 2025, 5:46 PM

Before final tightening, the fitting can be rotated to whatever position clears your obstructions or lines up with your port. Once you're satisfied with the angle, you torque it down and it stays put. That adjustability is the whole point of this style of elbow, real handy when you're working around fixed mounting points and can't reposition the component itself.

Answer by: Customer Support on Jun 29, 2025, 6:51 PM
