M.Orfs X M.Bspp Adj Branch Tee

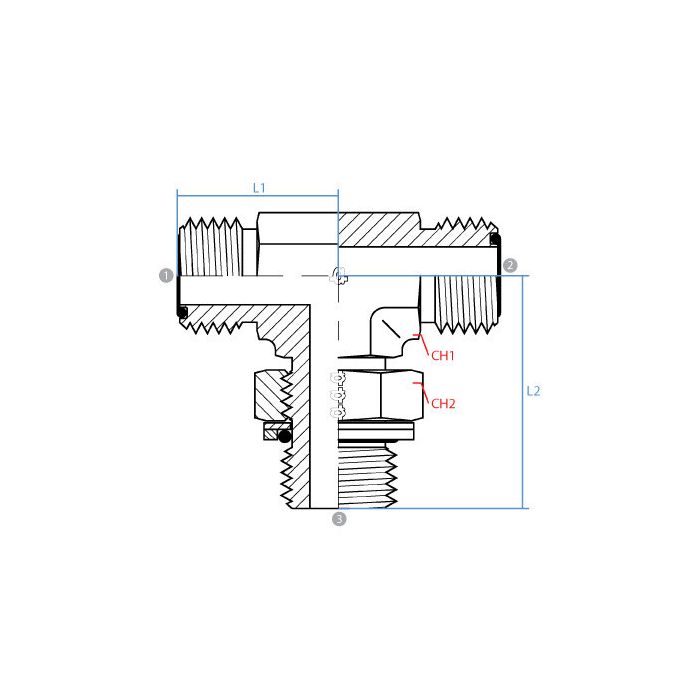

CH1 Width 27mm	CH2 Width 27mm	L1 Length 32mm	L2 Length 47mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout 13/16 - 16 UN	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orfs	Side 3 Callout G 1/2 - 14	Side 3 Gender M	Side 3 Size 1/2"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6159-08-08-08	Product Weight 0.65 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line splitting off to a BSPP port on some imported equipment and need to keep two ORFS connections in the run, this tee gonna work for that kind of setup?

Question by: Rusty B on Dec 10, 2025, 5:03 PM

That's exactly the kind of job this fitting handles. Two of the three ports are Male ORFS at 13/16-16 UN, both 1/2" size, so they'll tie into standard ORFS lines on either side of the run. The third port is Male BSPP at G 1/2-14, also 1/2", which is the common thread spec on a lot of European and Asian-made equipment. Steel construction, tee configuration. Pretty straightforward fit for what you're describing.

Answer by: Customer Support on Dec 12, 2025, 3:52 PM
