M.Orfs X M.Bspp Adj Branch Tee

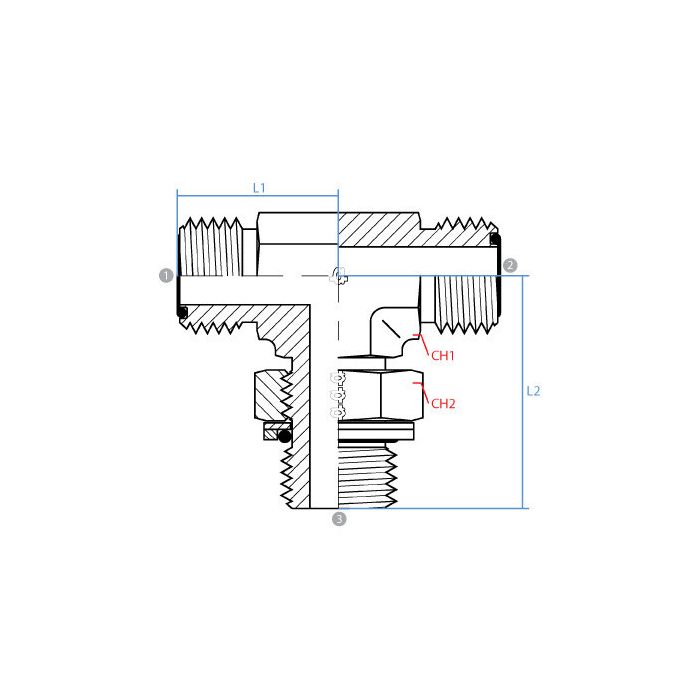

CH1 Width 18.5mm	CH2 Width 19mm	L1 Length 24mm	L2 Length 36.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Orfs	Side 3 Callout G 1/4 - 19	Side 3 Gender M	Side 3 Size 1/4"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6159-04-04-04	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

both sides of the tee got the same 9/16-18 UNF thread, so does that mean they're both ORFS connections or is one of em different?

Question by: Gene A on Aug 31, 2025, 1:39 PM

Both side connections are male ORFS at 9/16-18 UNF, yes. The branch connection coming off the middle is where things differ. That one's a male G 1/4-19 BSPP thread, so you're working with two different thread standards in the same fitting. Keeps your main ORFS line running straight through while the branch taps off in BSPP.

Answer by: Customer Support on Sep 2, 2025, 6:18 AM

Reckon this'll hold up alright in a hydraulic system that sees some pretty high pressure?

Question by: Tammy H on Oct 6, 2025, 4:14 PM

This tee, constructed from high-quality steel, is designed for optimal resistance to pressure in robust hydraulic applications.

Answer by: Customer Support on Oct 7, 2025, 7:24 PM
