Male Orfs X Mbspp Adj. Run Tee 6158-08-08-08

Specifications

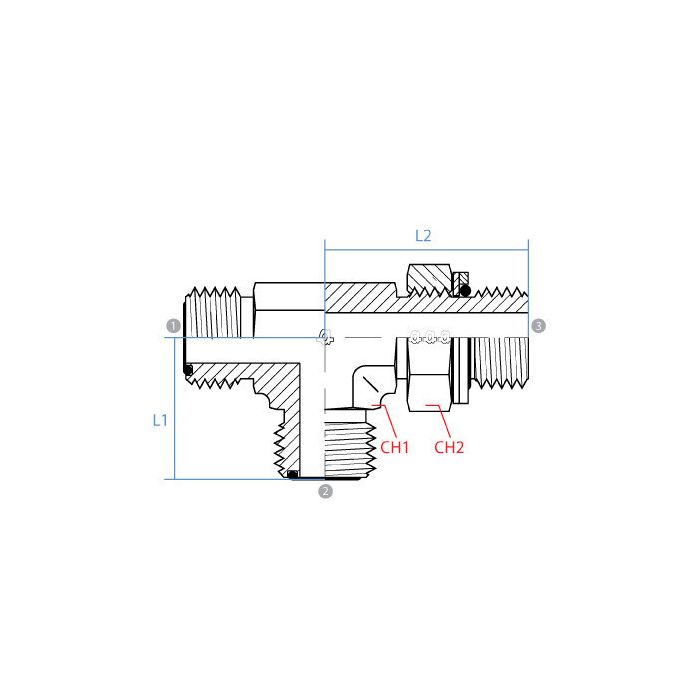

CH1 Width 26.5mm	CH2 Width 27mm	L1 Length 31.5mm	L2 Length 49mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout 13/16 - 16 UN	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Orfs	Side 3 Callout G 1/2 - 14	Side 3 Gender M	Side 3 Size 1/2"	Side 3 Type BSPP	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6158-08-08-08	Product Weight 0.65 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a line, what threads are on each leg of this fitting?

Question by: Gene A on Feb 28, 2026, 1:18 PM

On the run, both ends are male ORFS in 1/2 inch size with 13/16 - 16 UN threads. The branch leg is male BSPP, also 1/2 inch, with a G 1/2 - 14 thread.

Answer by: Customer Support on Mar 2, 2026, 6:13 AM

Got a line running ORFS on both ends but the branch off it needs to go into a BSPP port, this tee gonna handle that without needing extra adapters in between?

Question by: Norm C on Nov 11, 2025, 8:12 PM

That's exactly the setup this fitting is built for. Both run ends are male ORFS at 1/2" with a 13/16-16 UN thread, and the branch side is male BSPP, also 1/2", threaded G 1/2-14. So you're connecting straight into both connection types without stacking additional adapters in the line. The adjustable run tee design also gives you some flexibility in how you orient it during installation, which helps when you're working in a tight spot.

Answer by: Customer Support on Nov 13, 2025, 6:52 PM

What kind of steel is this tee made from?

Question by: Jerry A on Jan 14, 2026, 1:06 PM

Constructed from durable steel, this tee is designed to hold up in demanding industrial environments.

Answer by: Customer Support on Jan 15, 2026, 5:51 PM
