90*Male Orfs X Mmetric Adj Elb 6069-12-27

Specifications

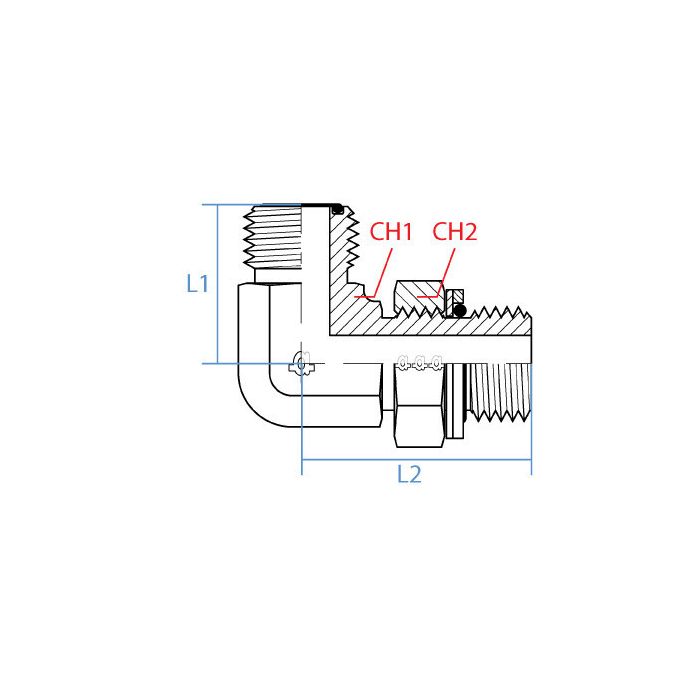

CH1 Width 30mm	CH2 Width 32mm	L1 Length 39mm	L2 Length 52mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout M27 X 2.0	Side 2 Gender M	Side 2 Size 27mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-12-27	Product Weight 0.84 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrenches do I need to tighten this thing down?

Question by: Hubert B on Apr 28, 2025, 2:17 PM

You'll need a 30mm wrench for one side and a 32mm wrench for the other.

Answer by: Customer Support on Apr 29, 2025, 9:52 PM

trying to swap out an elbow on my hydraulic line, is this one the 3/4 ORFS on one side and M27 x 2.0 on the other?

Question by: Wayne P on Nov 28, 2025, 1:45 PM

The ORFS end is a 3/4 inch male with a 1-13/16 - 12 UN thread callout, and the other end is a 27 mm male metric adjustable with an M27 x 2.0 callout.

Answer by: Customer Support on Nov 29, 2025, 8:05 PM

Got a metric port on a cylinder block and need to swing the line 90 degrees before it routes to the valve. The port's M27 X 2.0 thread. Will the adjustable end on this fitting actually let me clock it where I need it without buying a whole different adapter?

Question by: Hubert M on Feb 3, 2026, 6:14 PM

The metric side on this fitting is adjustable, which means you can rotate and position it to get the angle you need before locking it down. The M27 X 2.0 callout matches your port thread, so it'll seat properly on that end. The ORFS side gives you a face seal connection on the other end, which helps keep things leak-free once everything's torqued in place. For tight routing situations where a fixed elbow just won't cooperate, the adjustable design on this one handles that pretty well.

Answer by: Customer Support on Feb 5, 2026, 9:07 AM
