90*Male Orfs X Mmetric Adj Elb

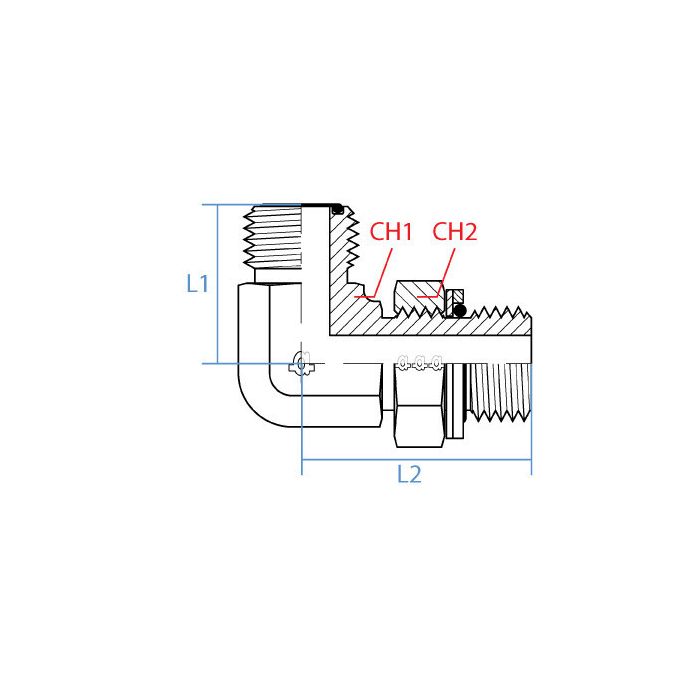

CH1 Width 27mm	CH2 Width 27mm	L1 Length 35mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 1 - 14 UNS	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Orfs	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6069-10-22	Product Weight 0.56 lbs

Product Questions & Answers 2

Product Questions & Answers

What size threads does this elbow have?

Question by: Roger A on Dec 17, 2025, 11:56 AM

It's got a 1 - 14 UNS thread on one side and a M22 x 1.5 metric thread on the other.

Answer by: Customer Support on Dec 18, 2025, 9:24 PM

got a hose end with 1-14 UNS ORFS, is this elbow the right match on that side?

Question by: Larry P on Sep 6, 2025, 12:45 PM

On Side 1 it uses an ORFS male connection with a 1 - 14 UNS thread and a 5/8 inch size, so it matches hose ends or ports that call for that exact ORFS thread and size.

Answer by: Customer Support on Sep 8, 2025, 6:43 AM
